DARGO HR HYBRID CAMPER (Family Model)

DARGO HR HYBRID CAMPER (Family Model)

Experience the adventure-ready Dargo Hybrid Camper from Bluewater Campers—a 15 ft off‑road champion built for families and explorers. With a solid 2,540 kg tare and 3,000 kg ATM, the Dargo delivers generous payload capacity and rock-solid towing performance.

Step inside and you’ll find premium features including:

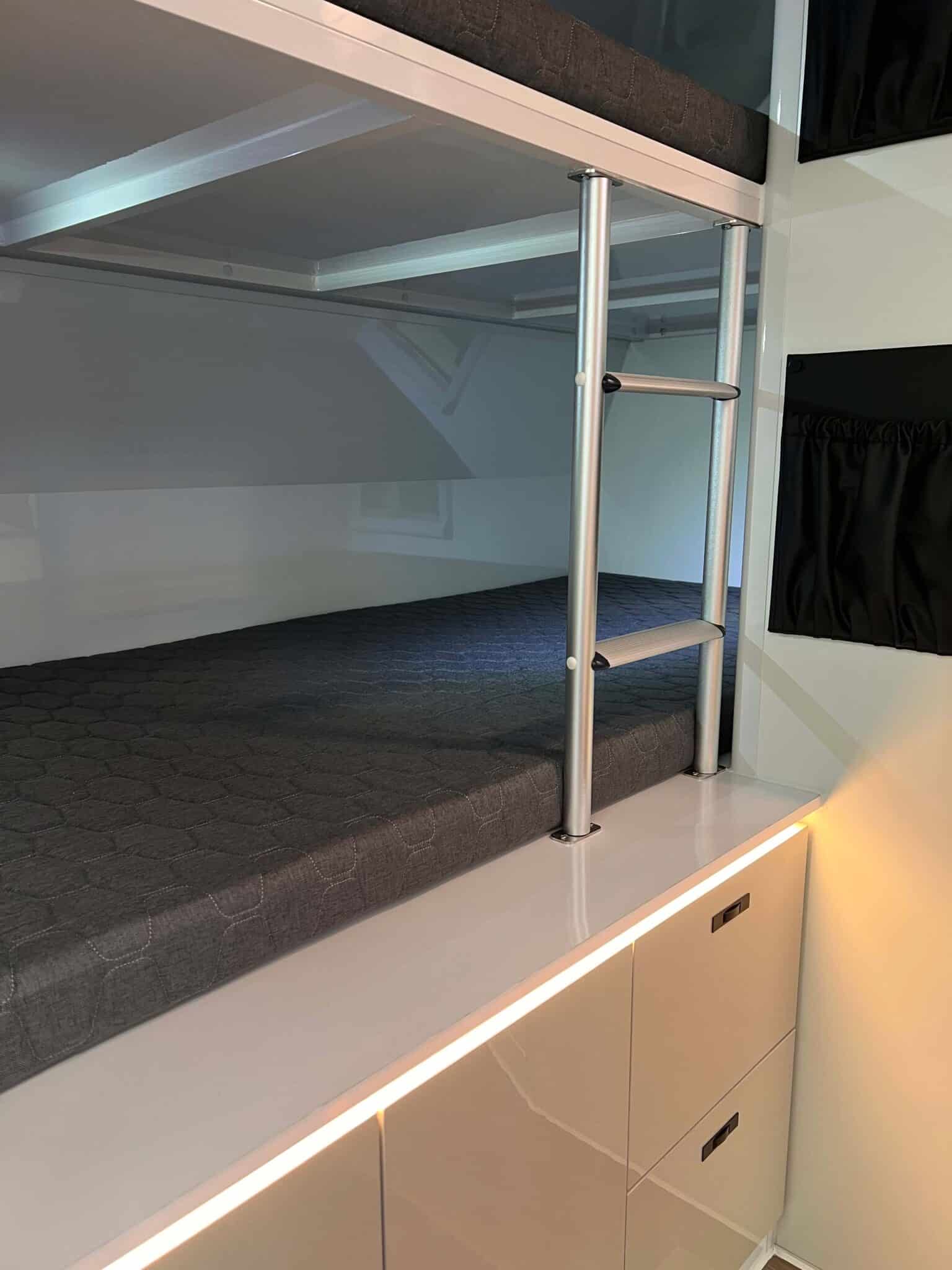

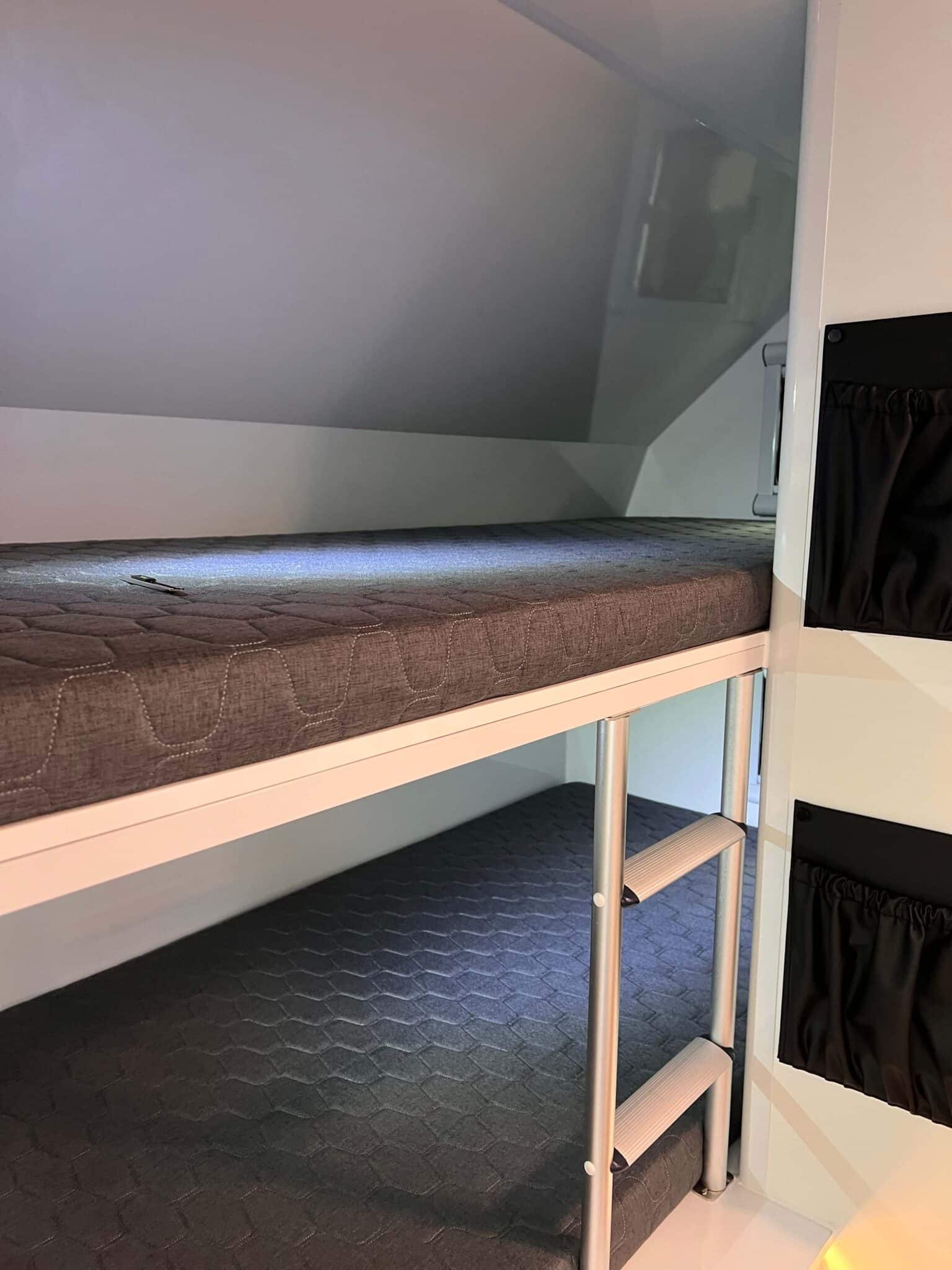

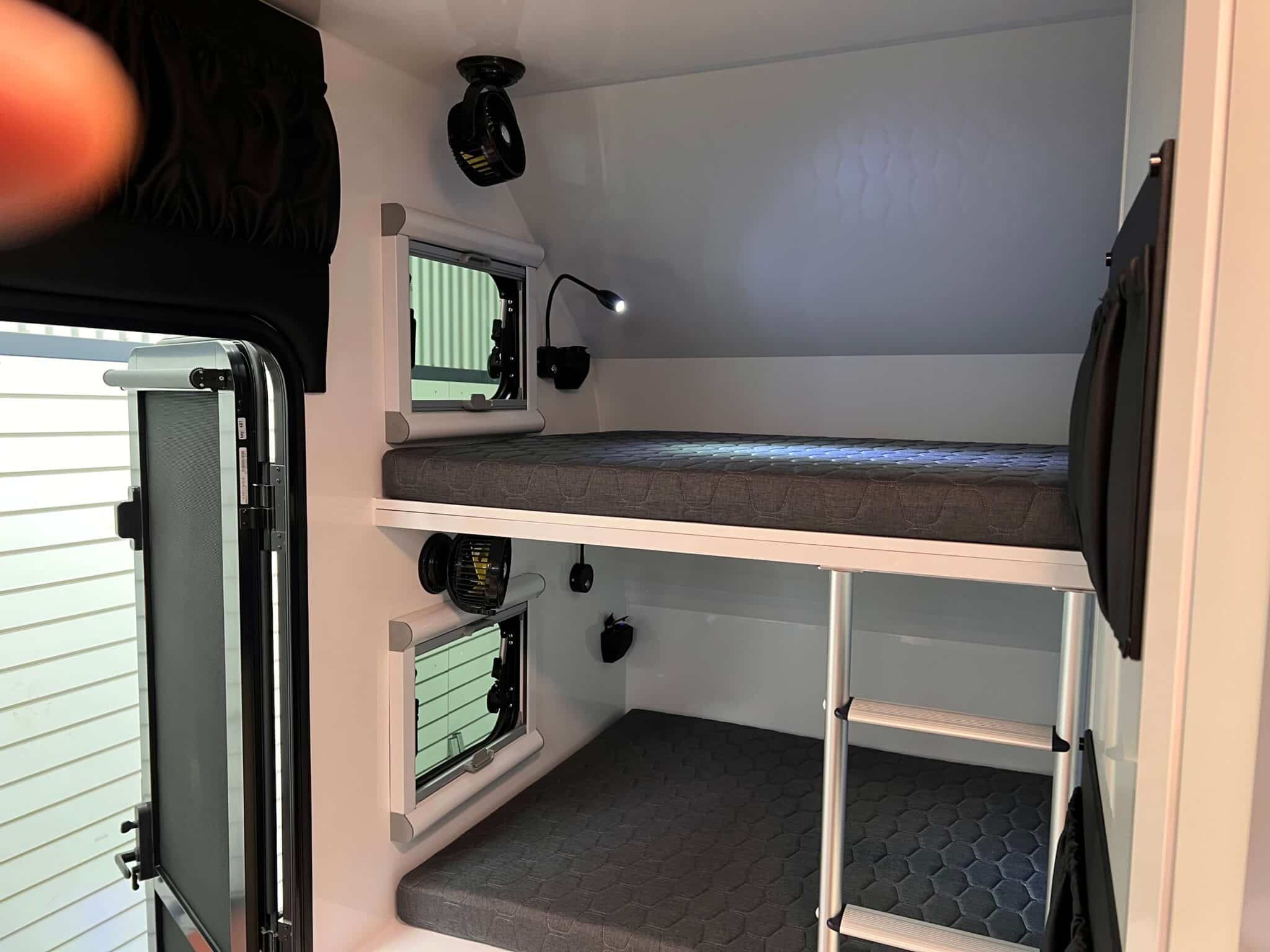

  • A comfy King‑size innerspring mattress (with bunks for up to five campers)
  • Dual 304 Ah lithium batteries, Redarc Alpha Battery management system, Redarc 2000W inverter & 600W of roof mounted solar‑ready set‑up
  • 240 V electrical system, Truma Aventa roof‑air conditioner (reverse cycle) and 14 L hot water heater

Go off‑grid with confidence thanks to a twin 200 L fresh-water tank system, 80 L grey tank and robust checkerplate guards. Storage is plentiful—slide-out fridge tray, internal and external compartments, front box for gas bottles/jerry cans

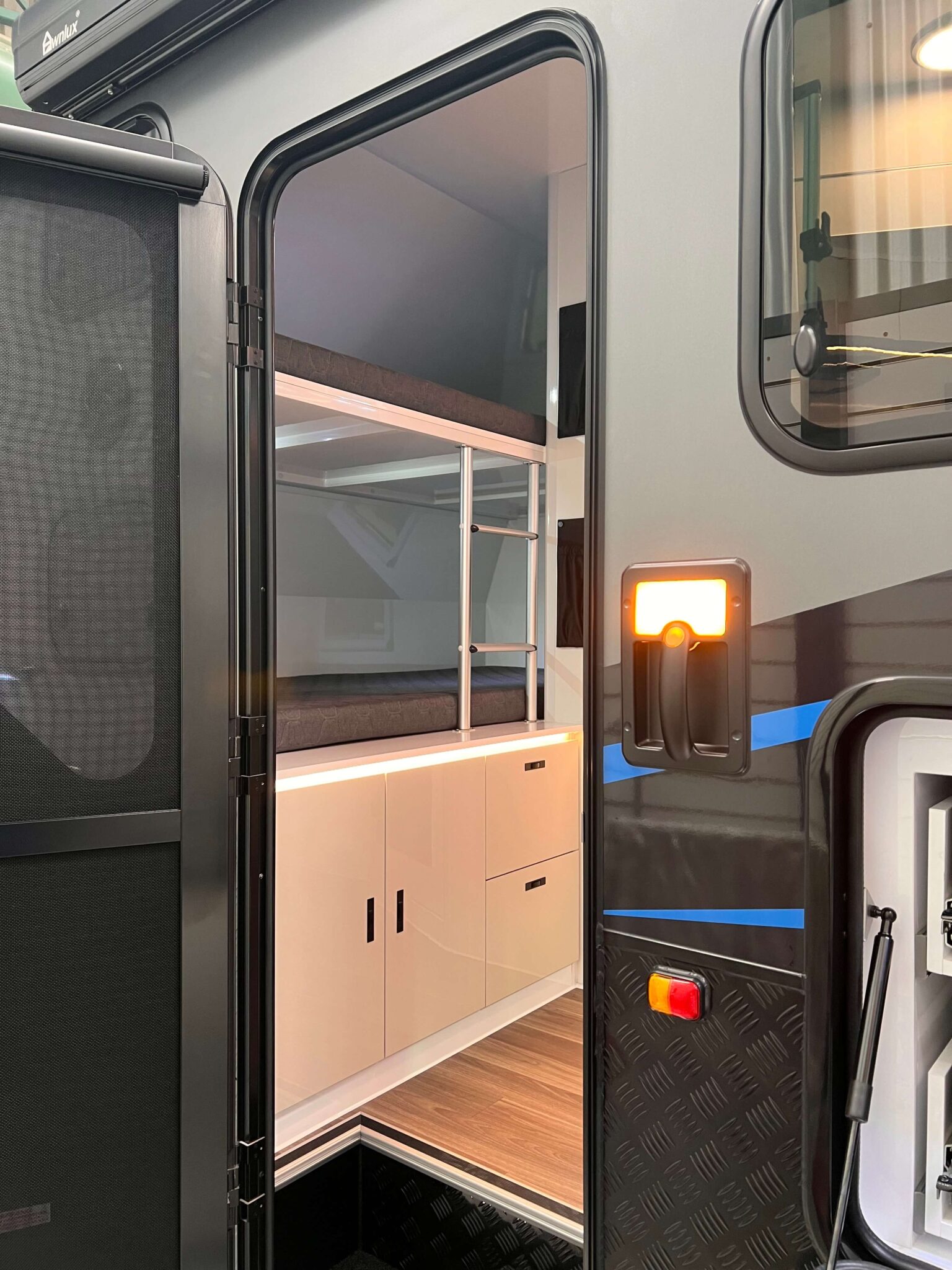

Durable en‑suite design includes swing down entry step, Aussie Traveller dual-door with mesh, double-glazed windows with block-out blinds, plus a 4 m wind-out awning with anti-flap kit annex walls and external shower tent

Tough undercarriage highlights:

  • Full-length RHS galvanised drawbar
  • 4 drop-down stabiliser legs
  • 265/70 R17 M/T or A/T tyres on alloy rims with dual‑wheel jockey and Cruisemaster DO35 tow coupling

With its combination of rugged off-road capability, high-end comforts and flexible sleeping arrangements, the Dargo Hybrid strikes the perfect balance between family-friendly convenience and adventurous spirit—whether it’s a weekend escape or an extended off-grid journey.

View variations of the DARGO HR

Technical Specifications

TYPE

Hybrid Caravan

TARE

2540kg

ATM

3000kg

LENGTH

6.9m

WIDTH

2.3m

HEIGHT

3.03m

BALL WEIGHT

220kg

Download the brochure

Download the accessories list

Inclusions

  • 608ah Lithium Batteries – Option for up to 912ah
  • 600W Roof Mounted Mono Crystaline Solar Panels
  • Redarc Manager Alpha 50 BMS with Redvision Display
  • Redarc 2000W RS3 Pure Sine Wave Invertor with Pass through to 240V system
  • Truma Ultra Rapid Hot Water 14 litre storage unit, Operates on Gas & 240v
  • Dometic Fresh Jet Ultra Lite 2.6kw Invertor Airconditioner – Roof Mounted 240V Microwave 1150W Fitted
  • 24″ Engalon Smart TV with built in Chromecast and Bluetooth Connection
  • Marine Sound system with speakers inside and out with Bluetooth Connection
  • 12V 3speed Gimbal Fan 360 degree range x 2
  • Anderson plug connectors for vehicle and solar input for extra panels
  • Electric Emergency Breakway with 2 ADR Compliant Safety Chains
  • Multiple 12v & USB sockets, inside and out
  • Internal and External LED Lights with Orange Insect Repellant option
  • Wireless Camera with 7″ Screen, wired to driving lights
  • Positive Pressure Dust Suppressor with Filter
  • 96l Upright Fridge Fitted, with 20l Freezer, works on 12V or 240V
  • Multiple storage Compartments inside & out
  • Fridge Slide: 980mm long x 550mm wide x 500mm high
  • Provision for Rear bike rack tongue / receiver
  • 1 x 8.5kg and 1 x 3.75 kg gas bottle holders stored in weatherproof compartment
  • Sleeping accomodation for 2
  • Pocket Spring Mattress with Memory Foam Topper Size 1750cm wide x 195cm long x 20cm Thick
  • Reading lights either side of bed with 12v socket & USB Connection, Fans
  • Fully Enclosed Annex with Roof, Walls, Side Skirt,PVC Floor
  • Self repairing zippers to all Annex windows & doors
  • 4M Awnlux Cassette Electric awning with anti flap kit included
  • Aussie Traveller Split Dual entry door with flyscreen mesh and roller Blind fitted
  • Large Internal Ensuite with Thetford Toilet, Shower and other ammenities
  • External Shower Ensuite with Mixer Tap
  • Windows Tinted, Inside Flyscreen and Blockout Blinds
  • Sleeping accomodation for 2 or 4
  • Pocket Spring Mattress with Memory Foam
  • Topper Size 175cm wide x 195cm long x 20cm Thick
  • Bench Style seating with long adjustable Table, Main bed converts to extra lounge area
  • Reading lights either side of bed with 12v socket & USB Connection, Fans
  • Heavy Duty Coil Springs paired with Adjustable Independent Suspension
  • Lovells Gas Shock Absorbers Heavy Duty 16mm Eye
  • Diesel Heater 2kw Plumbed with 10l tank
  • External Kitchen with Dometic 2 Burner Stove and sink, bench Extension & Gas Compliance
  • Grey Water tank connection to slide out kitchen sink

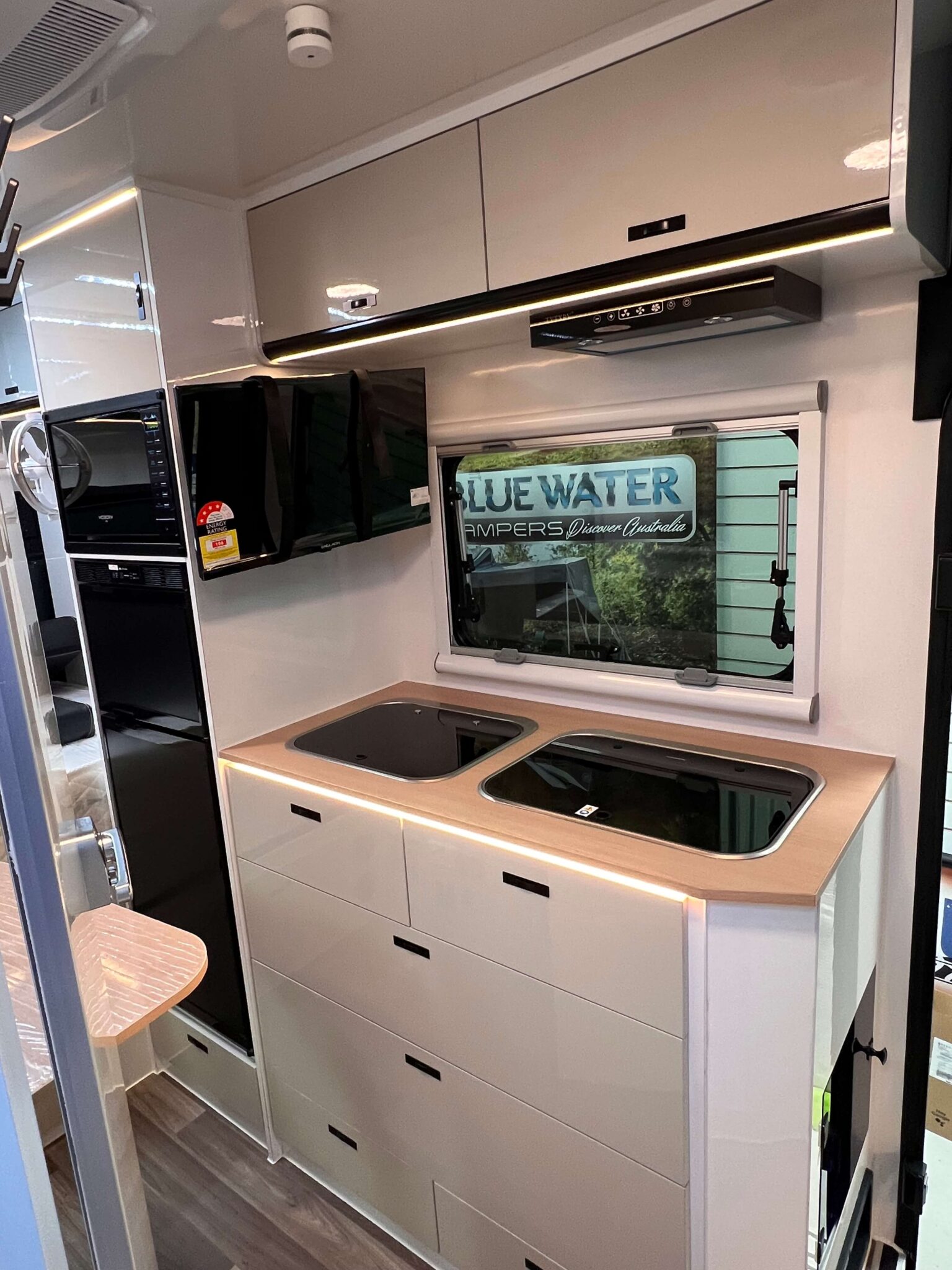

  • Internal Kitchen with Dometic 2 Burner Stove, Rangehood and Sink
  • External Kitchen fully plumbed water and electrics, no manual connections required
  • Fold down pantry with multiple storage areas
  • 4 ‘drop down’ adjustable stabiliser legs – Optional ARK Jack Legs available
  • Cruisemaster DO35 Hitch 3.5T and trailer plug included to suit your tow vehicle
  • Rock Sliders each side to protect underbody
  • Dual rear rated 4.5T Heavy Duty recovery shackles
  • 265/75 R16 MT or AT Tyres on Alloy Rims, Rear mounted spare Tyre with Toolbox (second spare opt)
  • 200ltr Total Fresh Water capacity (F-80ltr & R-120ltr) + 80lt Grey Water Tank – Poly Food Grade Tanks
  • John Guest water hoses and Fittings, Watermarked Food Grade safe.
  • Drawbar Mounted Water tap
  • Seaflo 9.5lm Water Pump with John Guest Hose and Fittings
  • Seaflo Mains water connection with Pressure Reducing Valve
  • Swing down Aluminium Entry step
  • Fully Welded Aluminium Body, Underbody Sealer, Proof Coated with Mud Flaps
  • Drawbar Full Length RHS Galvanised 150x50x4mm
  • RHS Galvanised Chassis 100x50x4mm Proof Coated
  • 12” Electric Brakes with Mechanical Handbrake and Electric breakaway
  • ARK XO 750kg rated Off Road Dual Wheel Jockey Wheel
  • ***LIFETIME CHASSIS AND DRAWBAR WARRANTY***
