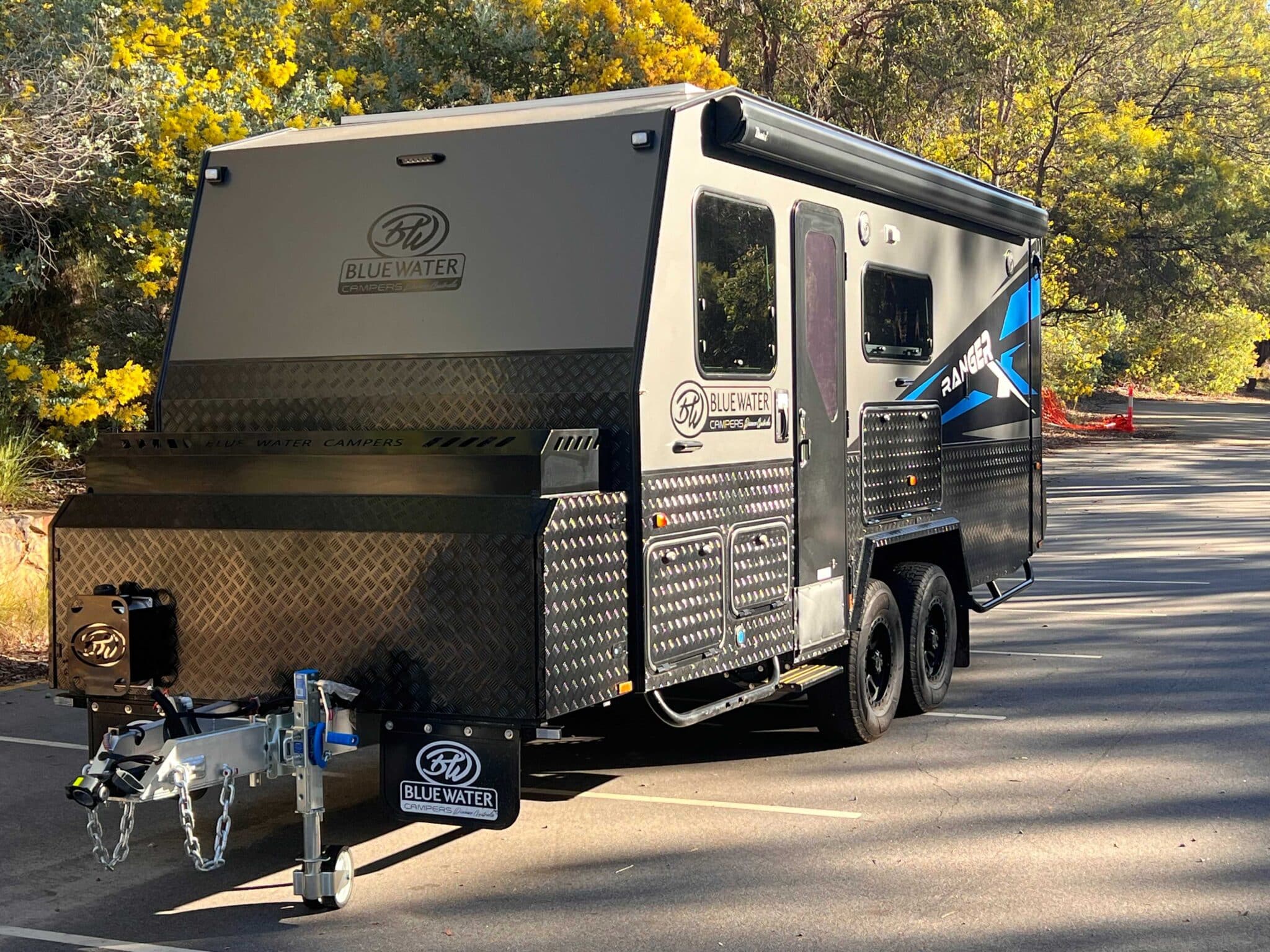

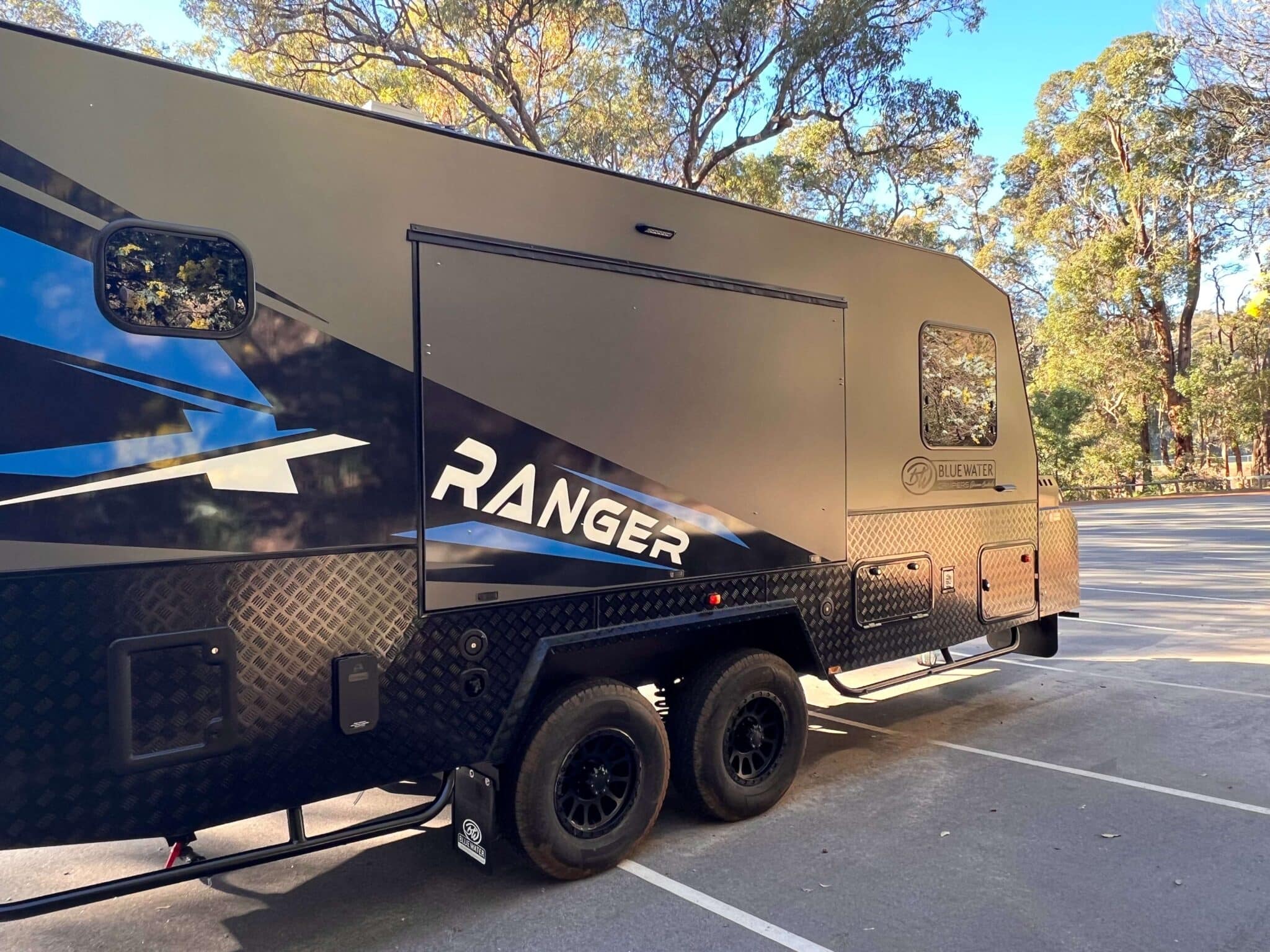

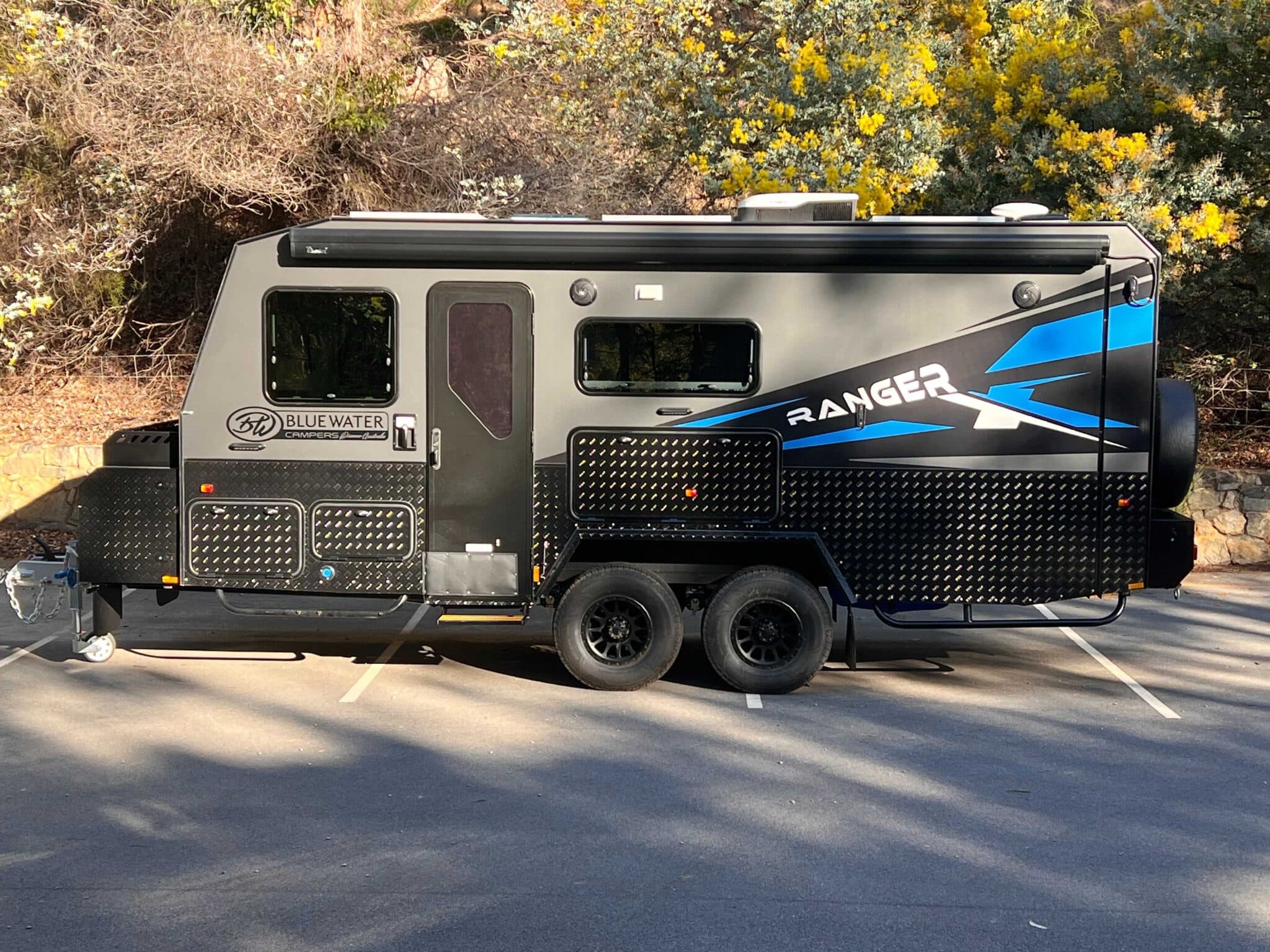

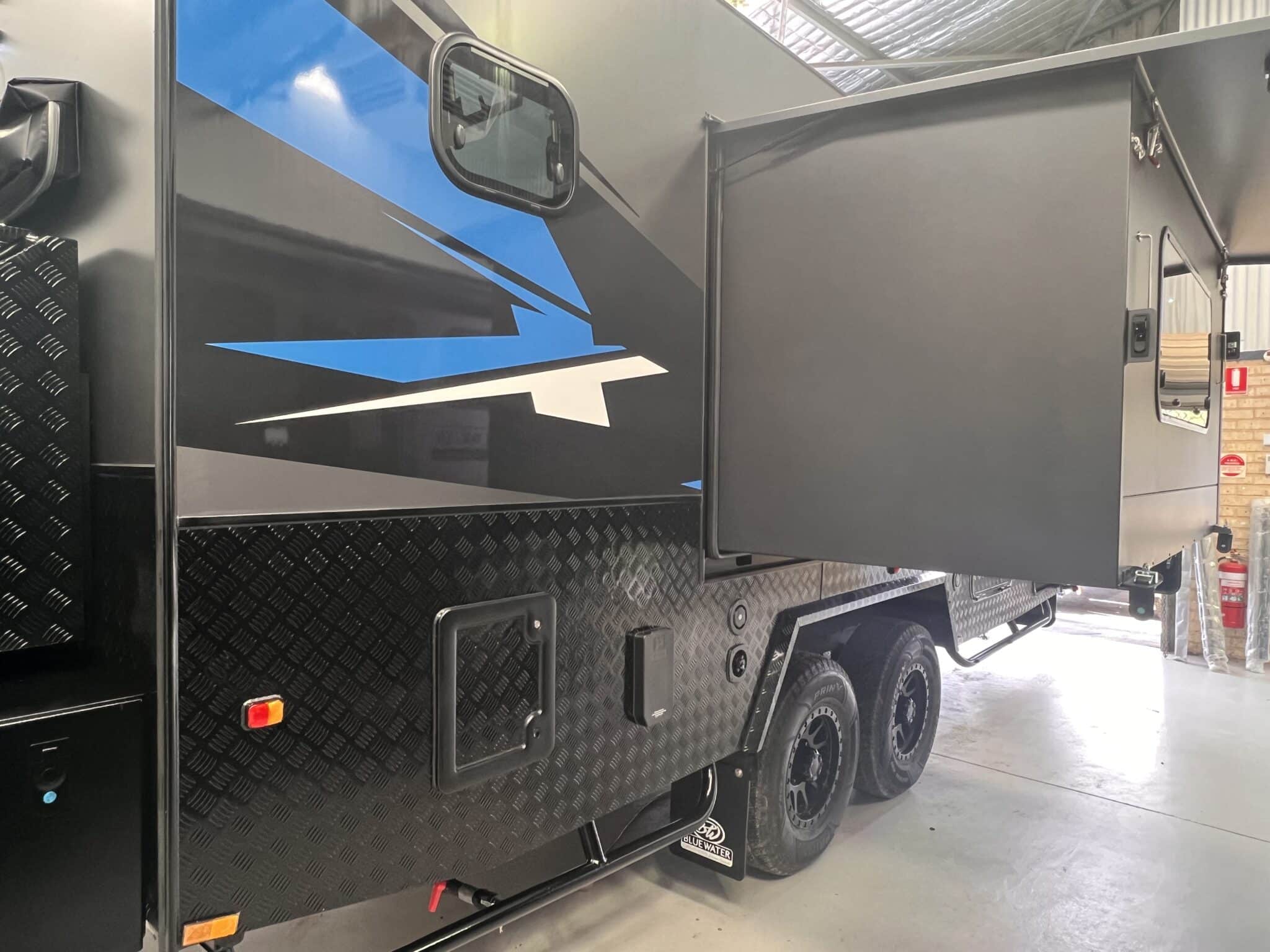

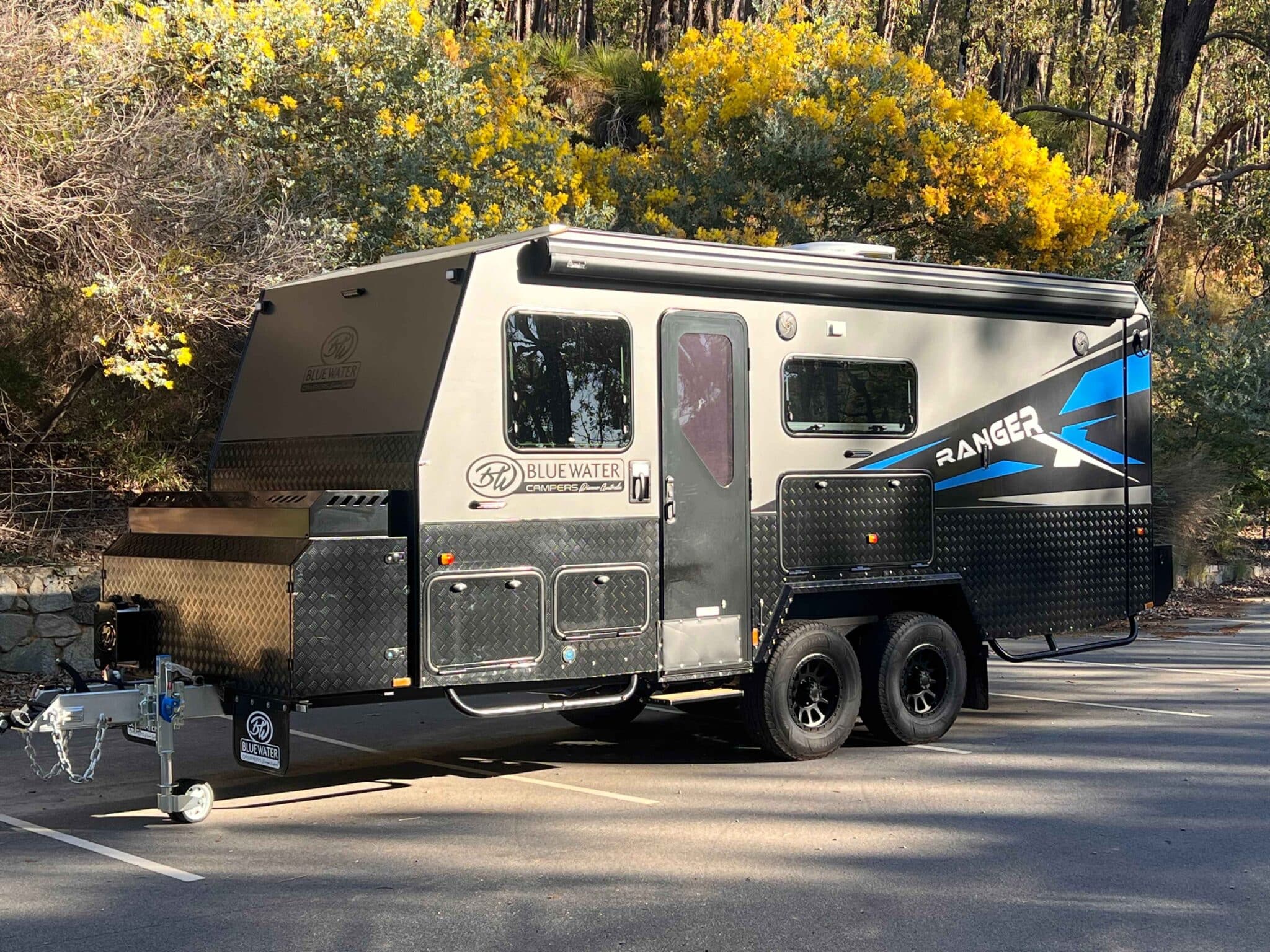

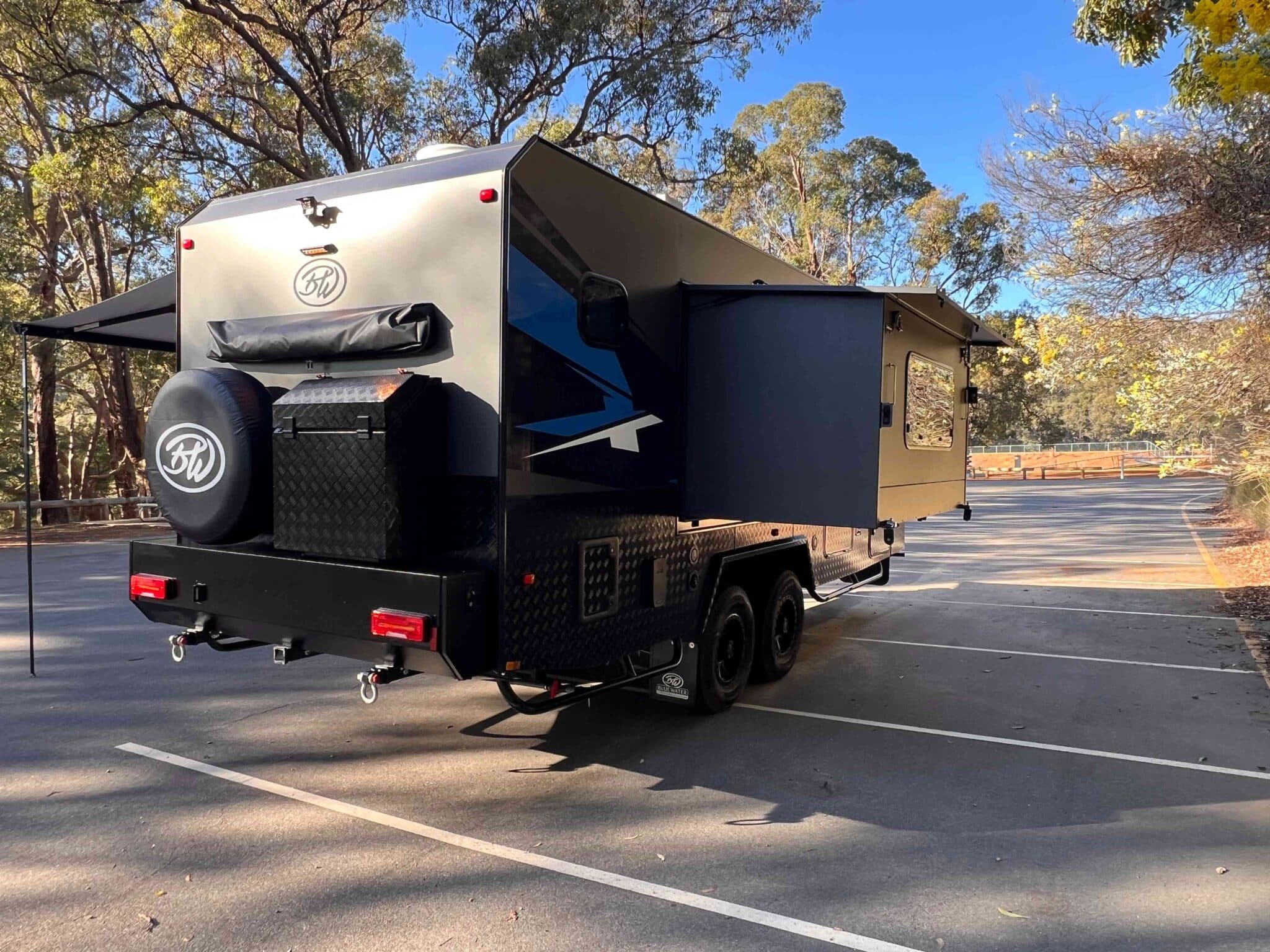

RANGER 19FT CARAVAN

Introducing the Bluewater Ranger Off-Road Camper - built for experienced travellers who refuse to compromise between practical comfort and true capability. Engineered for Australia's toughest terrain, the Ranger rides on industry-leading Cruisemaster ATX suspension, delivering exceptional stability and control over demanding outback roads. Whether tackling severe corrugations, remote bush tracks, or long highway stretches, the Ranger allows you to travel with absolute confidence.

Powering true off-grid freedom is a heavy-duty 900Ah lithium battery system, engineered to keep your core power integrated and monitored without constant maintenance. Supported by 1,050W of roof-mounted solar and a 3,000W pure sine wave inverter, the system intelligently manages energy use so you can stay remote for longer. Enjoy reliable power for appliances, lighting and internal systems wherever your journey takes you.

Technical Specifications

TYPE

Off-Road Camper

TARE

2800kg

ATM

3500kg

LENGTH

7.6m

WIDTH

2.2m

HEIGHT

3.1m

BALL WEIGHT

200kg Approx at Tare

Download the brochure

Download the accessories list

Inclusions

912ah Lithium Batteries
1050W Roof Mounted Mono Crystaline Solar Panels

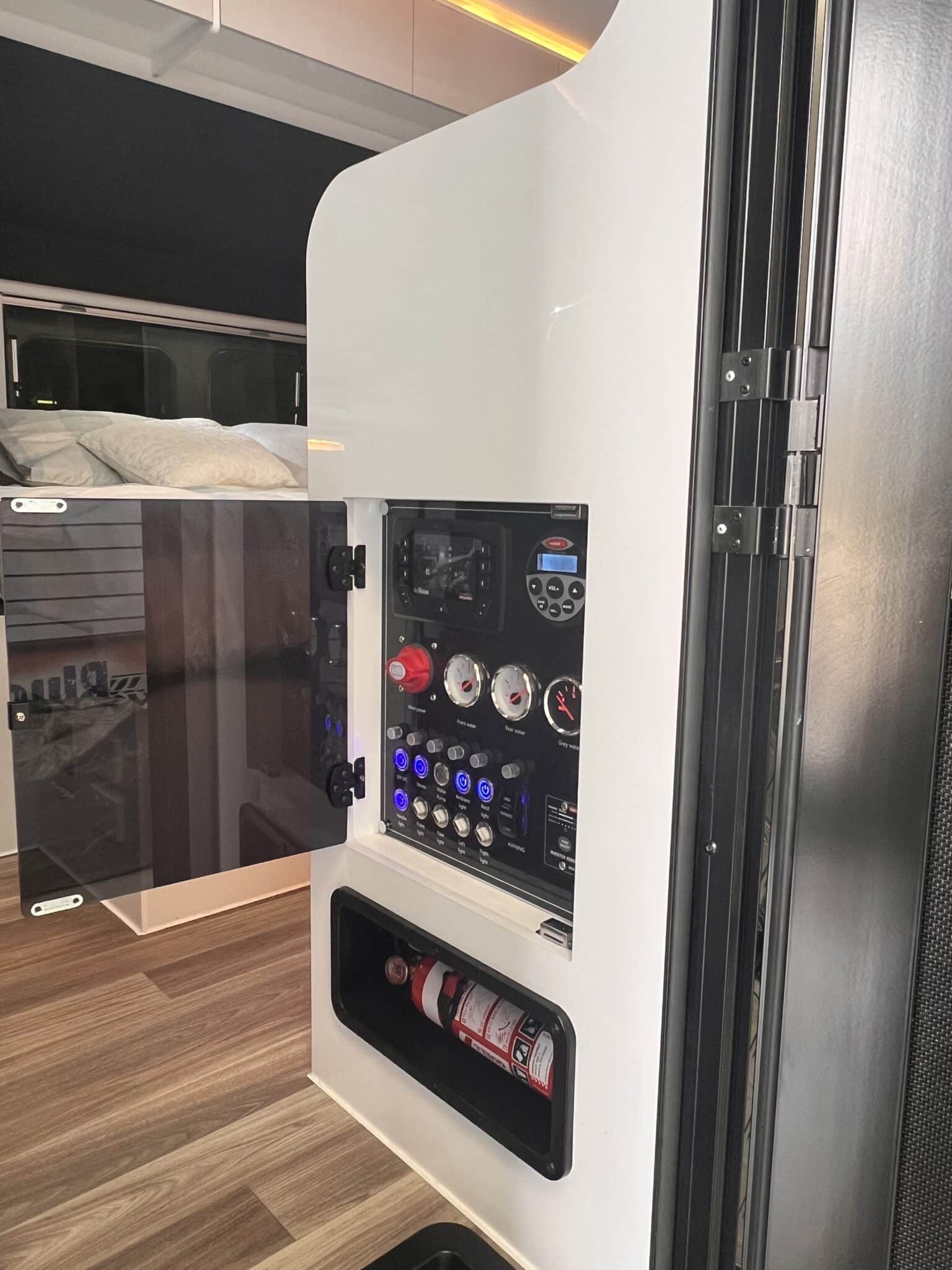

REDARC Manager Alpha 50 BMS with Redvision Display
Redarc 3000W Pure Sine Wave Invertor with Pass through to 240V system
TRUMA Ultra Rapid Hot Water 14 litre storage unit, Operates on Gas & 240v
DOMETIC Fresh Jet 7 Ultra Lite 2.6kw Invertor Airconditioner - Roof Mounted
240V Microwave 700W Fitted
ENGALON 24" Smart TV with built in Chromecast and BT Connection
Premium Sound system with speakers inside and out with Bluetooth Connection
12V 3speed Gimbal Fan 360 degree range x 2
Anderson plug connectors for vehicle and solar input for extra panels
Electric Emergency Breakway with 2 ADR Compliant Safety Chains
Multiple 12v & USB sockets, inside and out
185l Upright Fridge Fitted, with Freezer
Internal and External LED Lights with Orange Insect Repellant option
Wireless Camera with 7" Screen, wired to driving and reverse lights

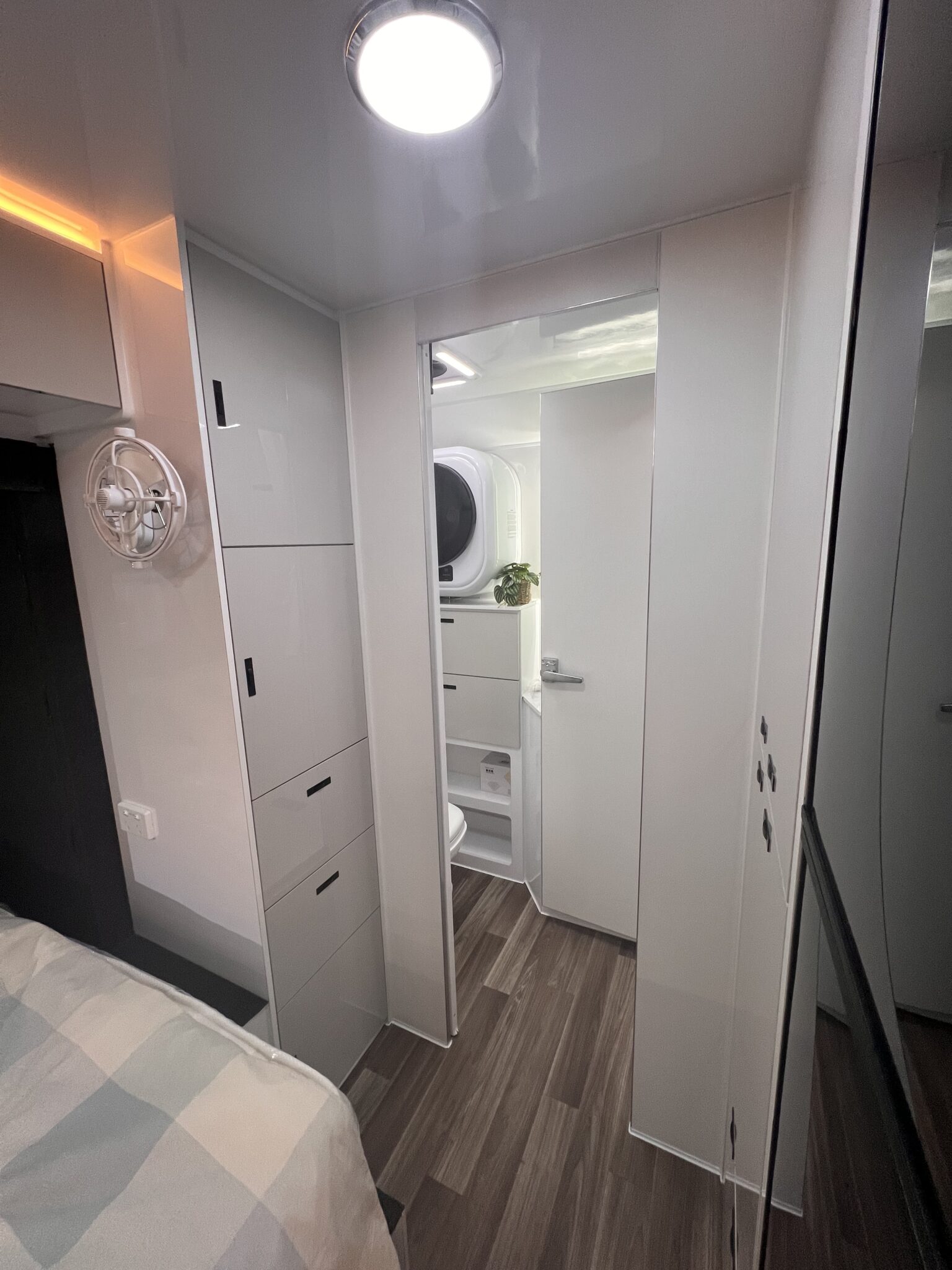

Washing Machine

Multiple storage Compartments inside & out

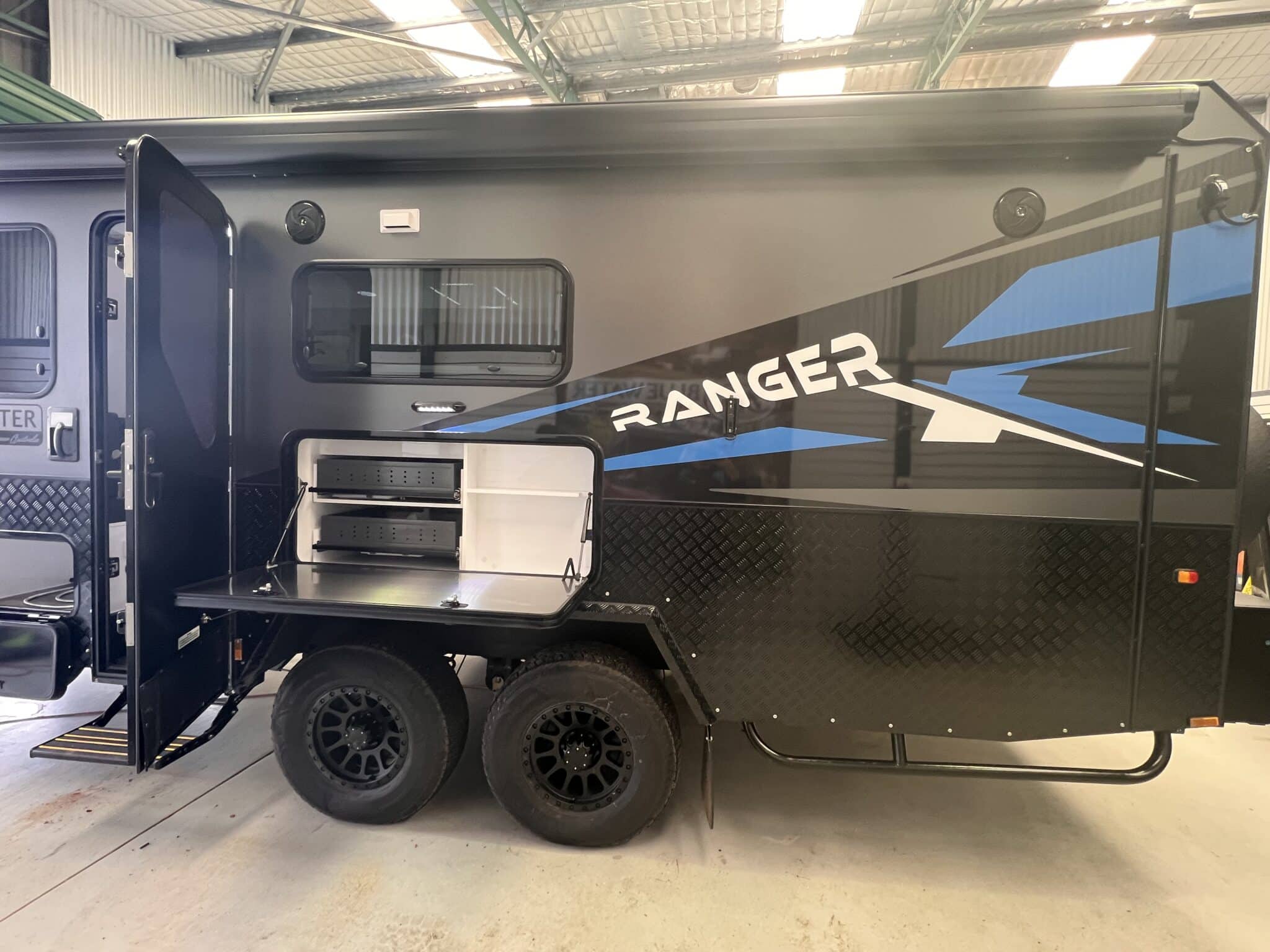

Fridge Slide: 1000mm long x 550mm wide x 480mm high
Provision for Rear bike rack tongue / receiver

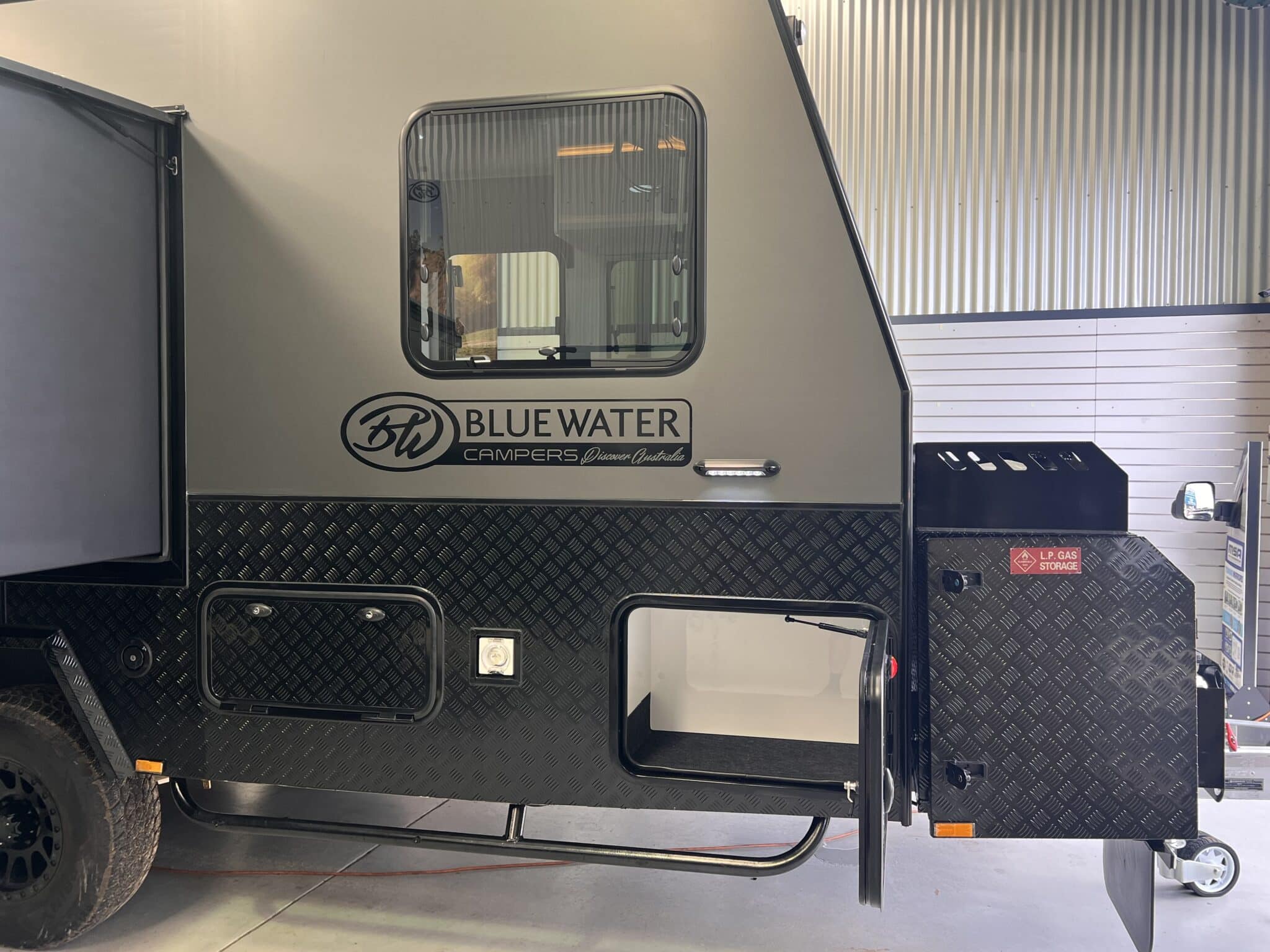

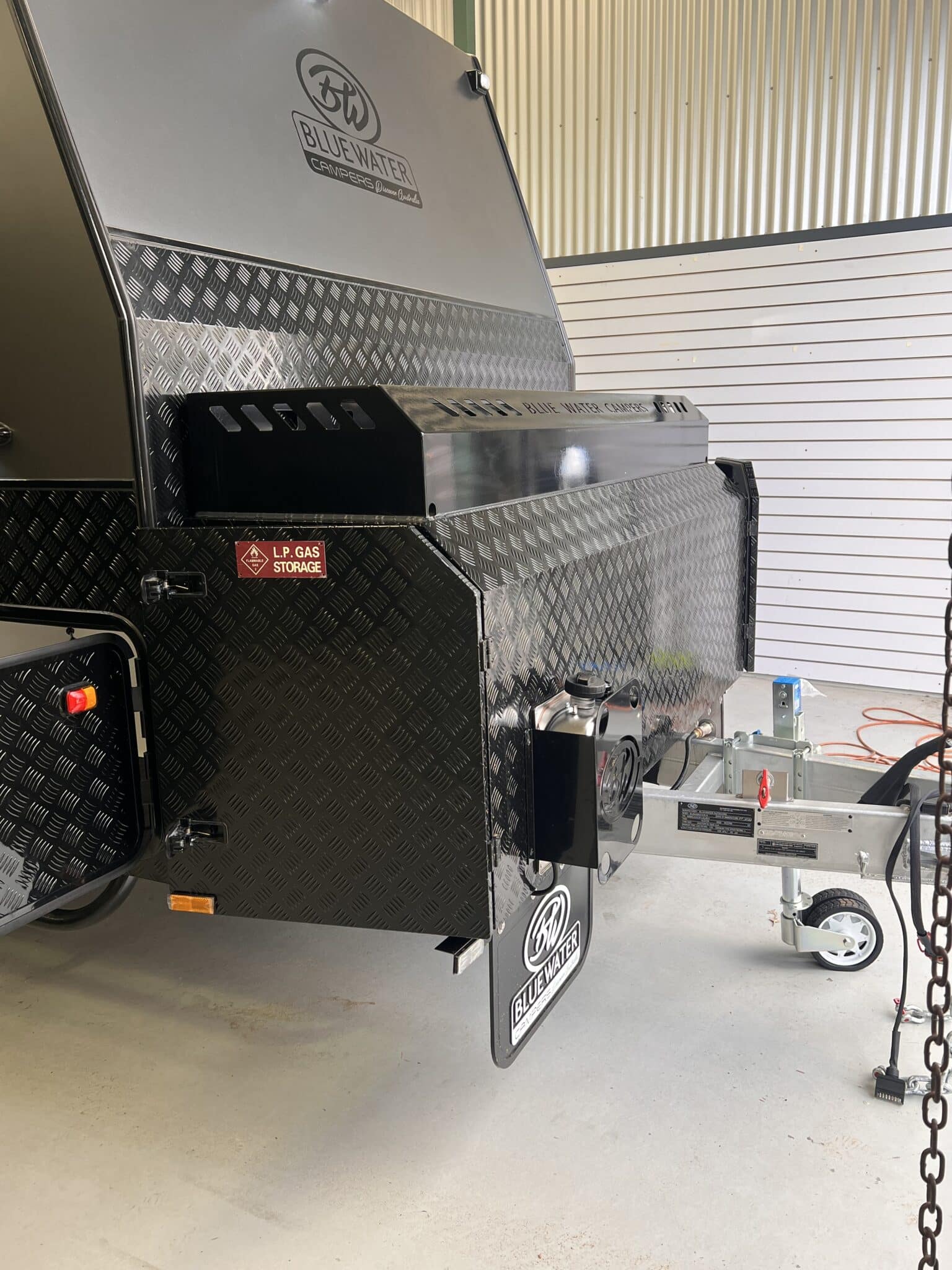

2 x gas bottle holders stored in weatherproof compartment

Fully Enclosed Annex with Roof, Walls, Side Skirt,PVC Floor
Windows Tinted, Inside Flyscreen and Blockout Blinds
Self repairing zippers to all Annex windows & doors

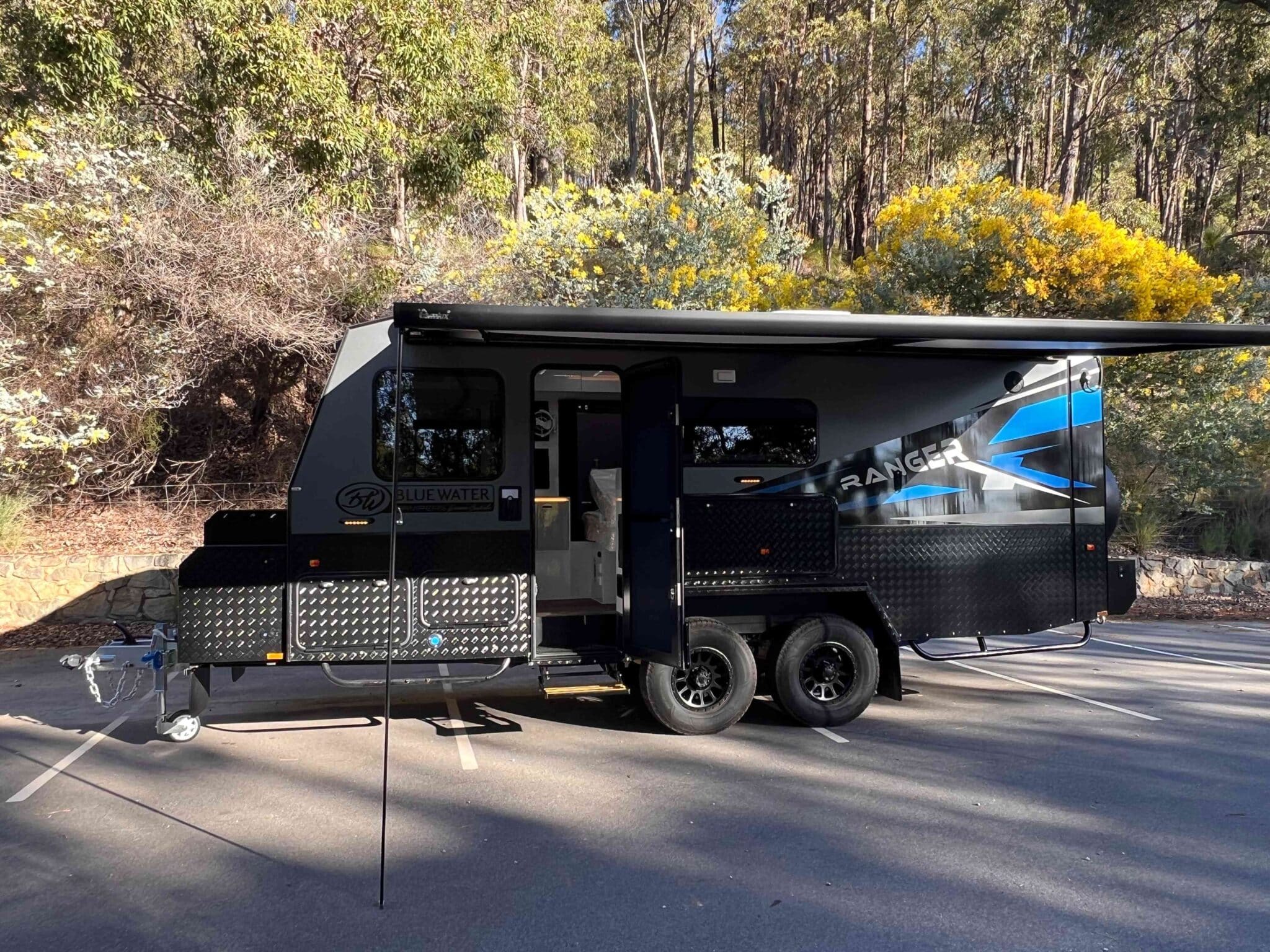

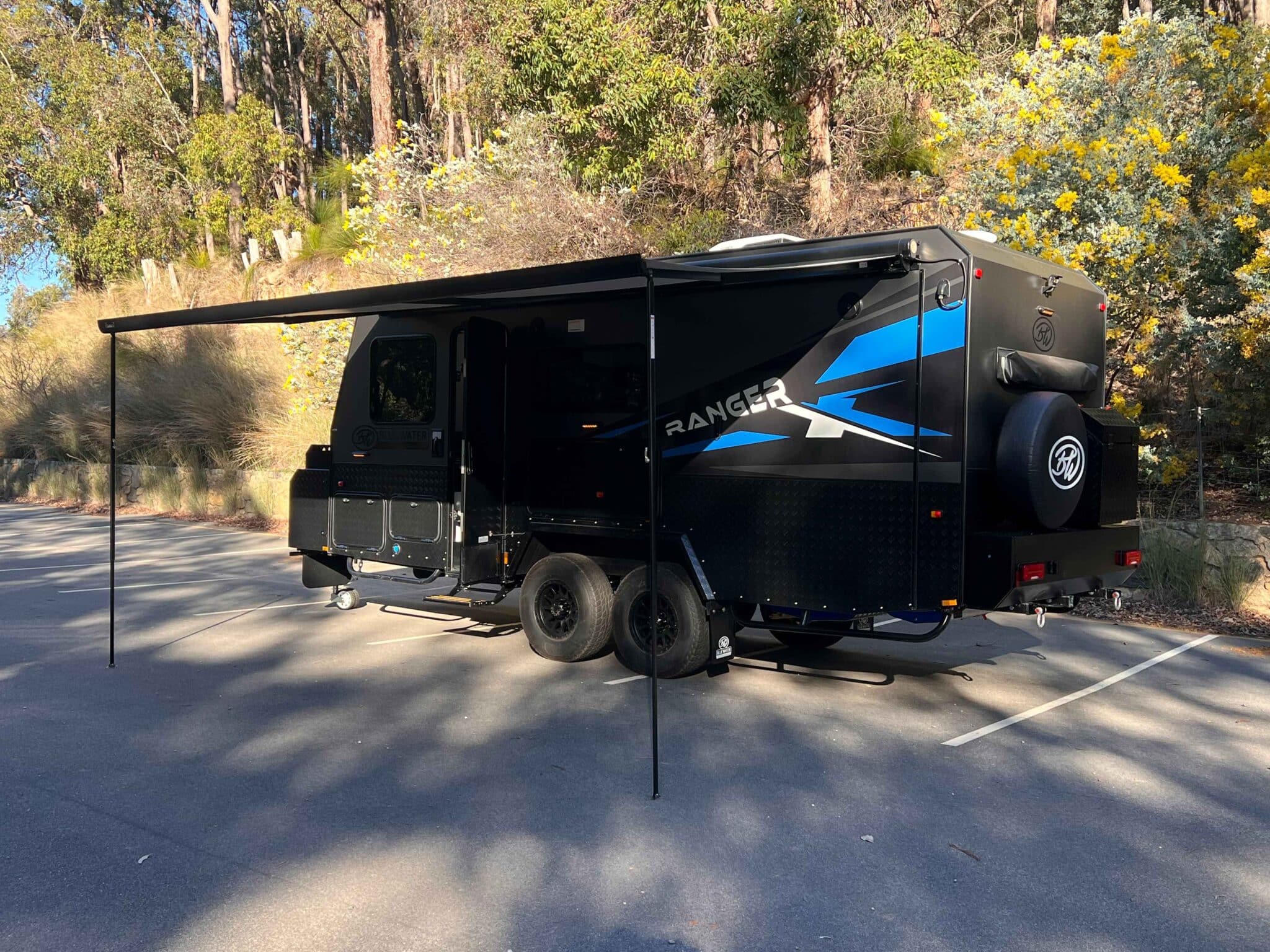

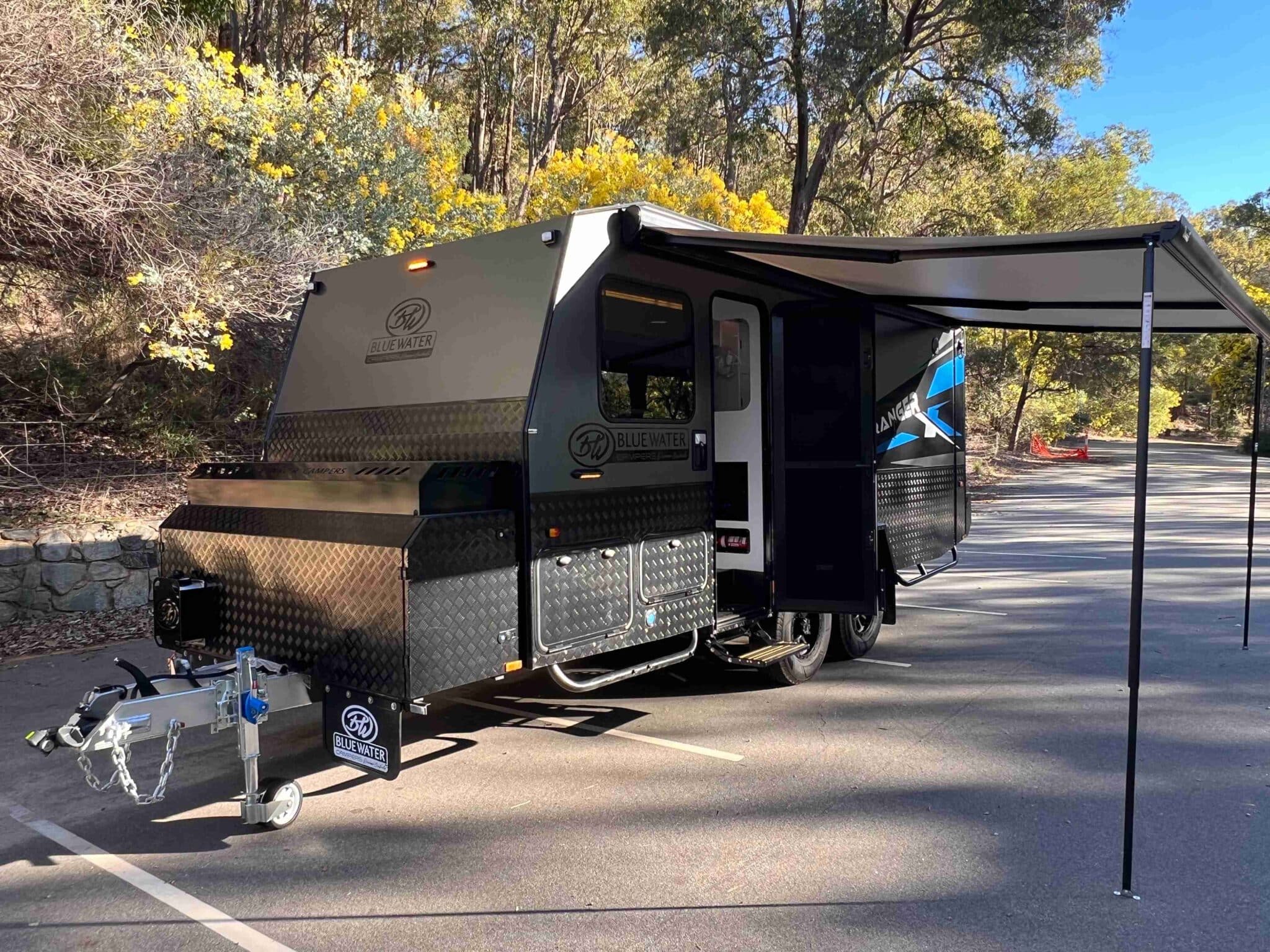

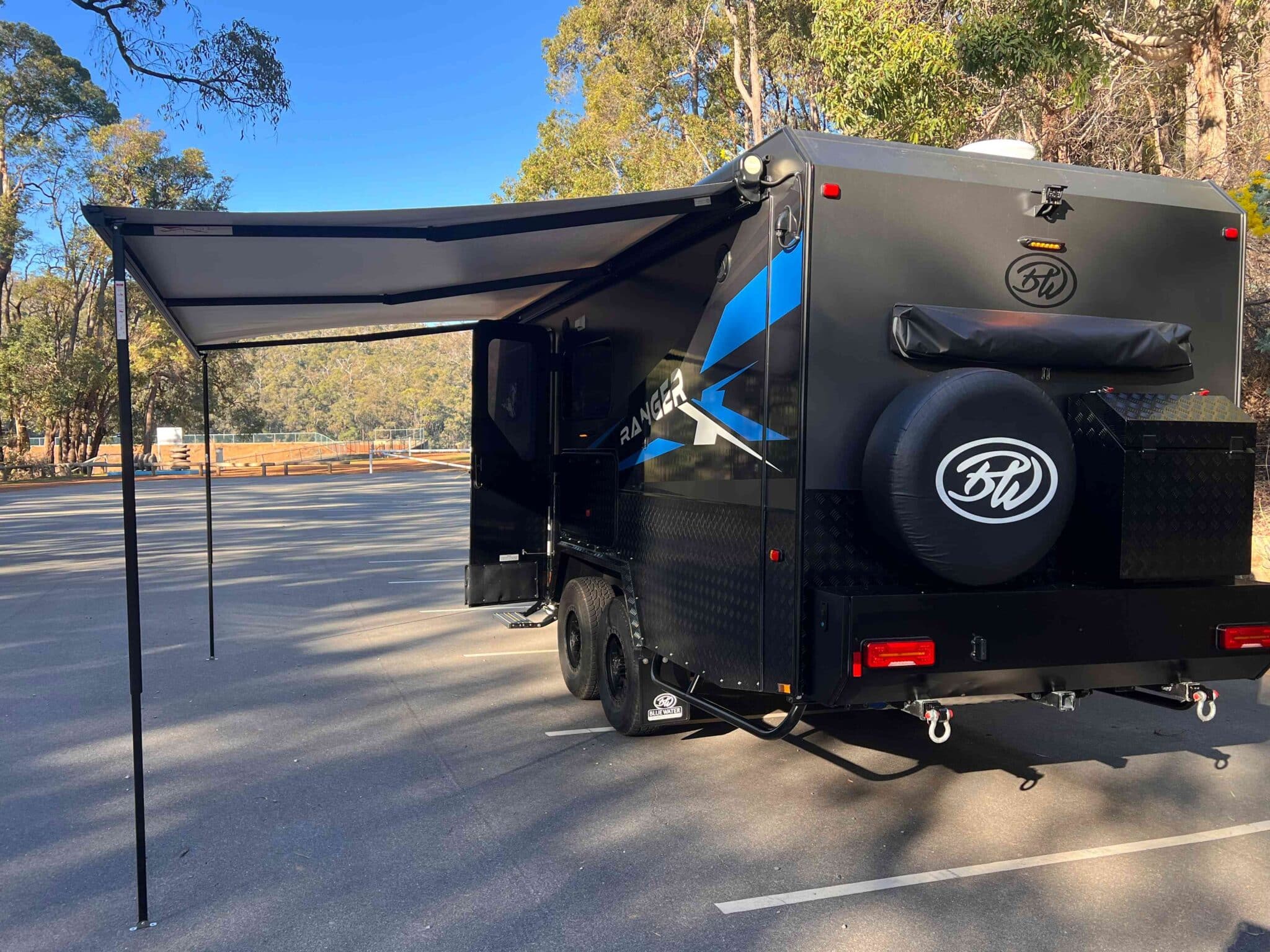

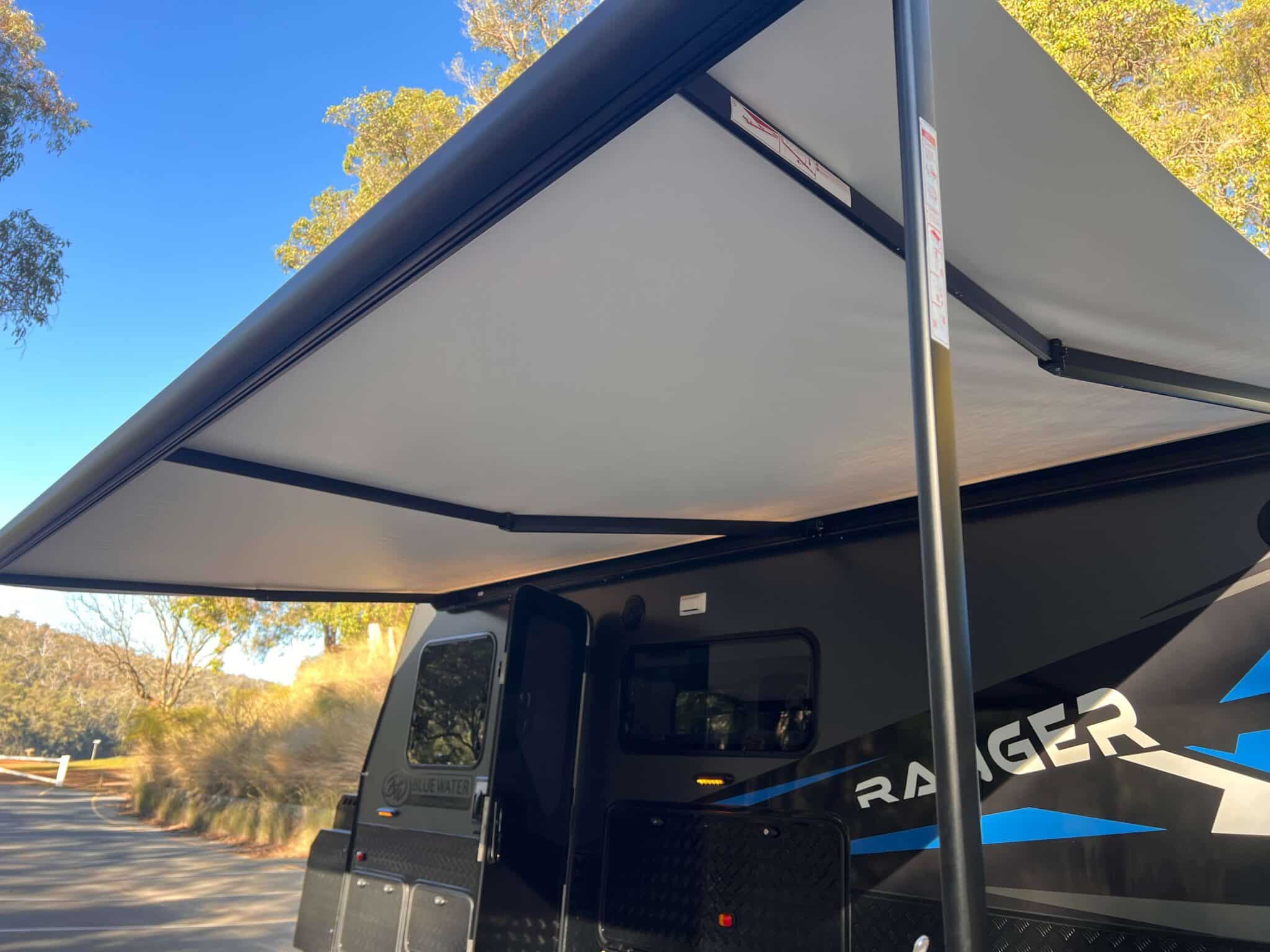

4.8M Awnlux Electric Cassette awning with anti flap kit included

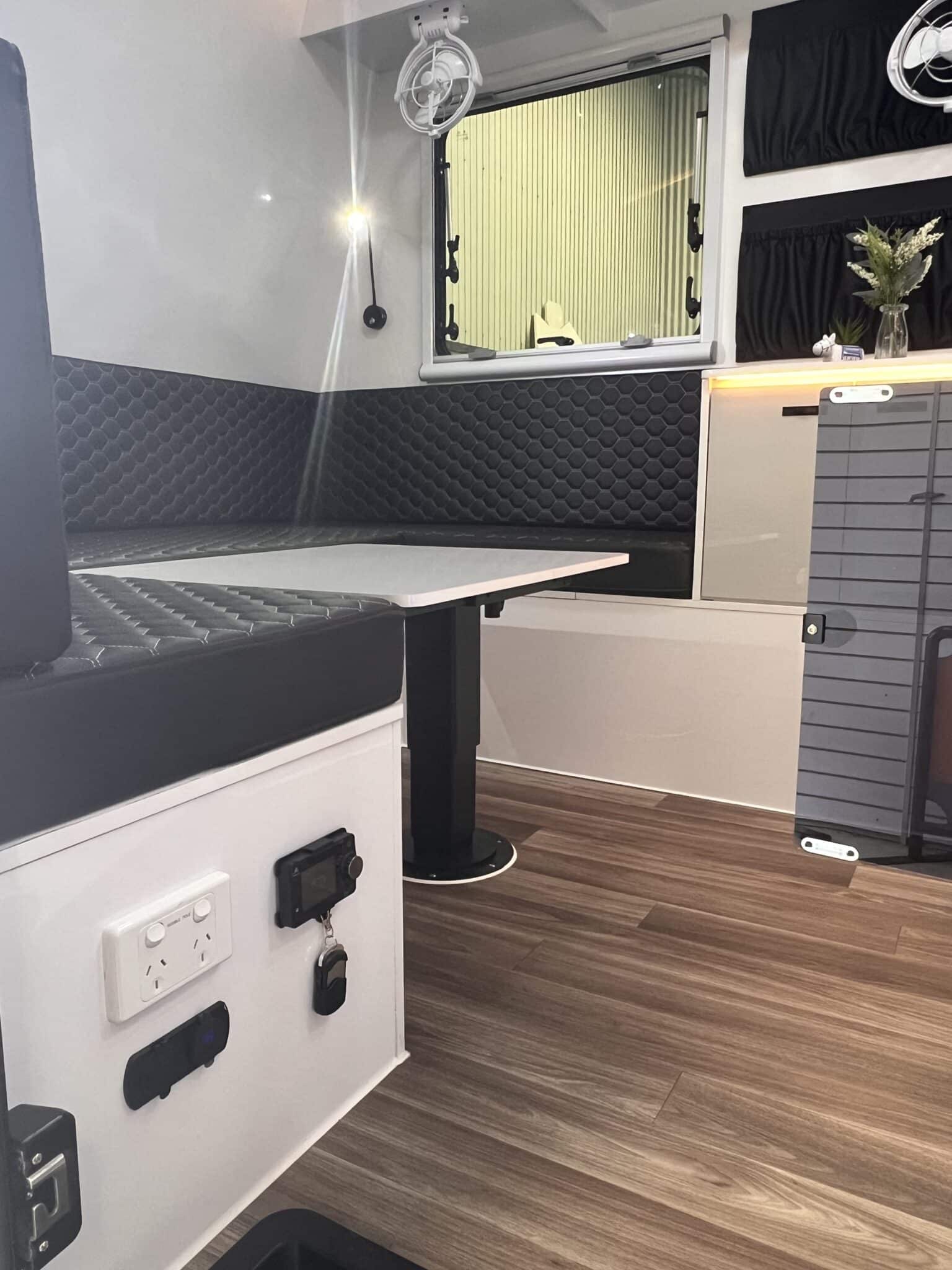

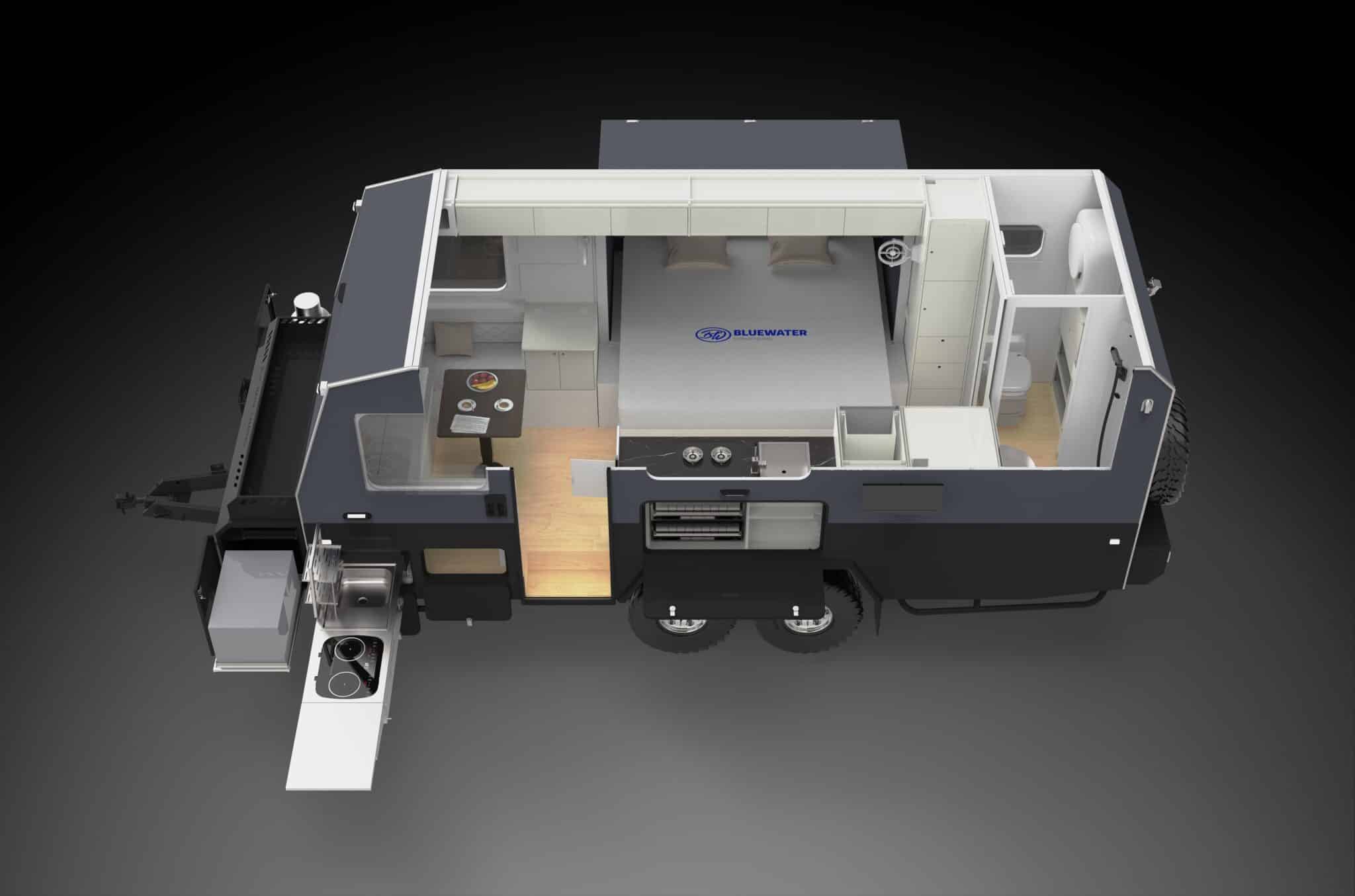

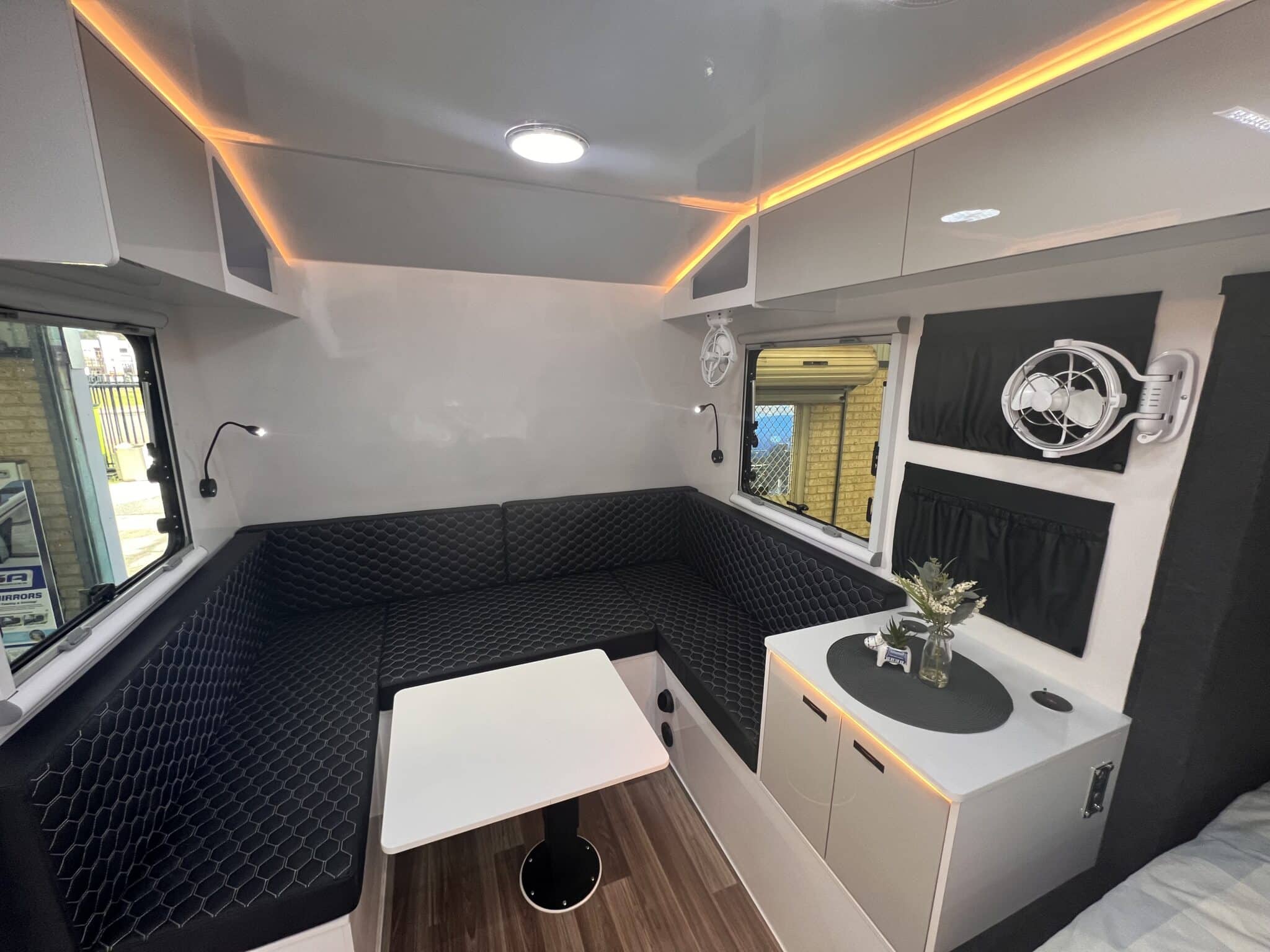

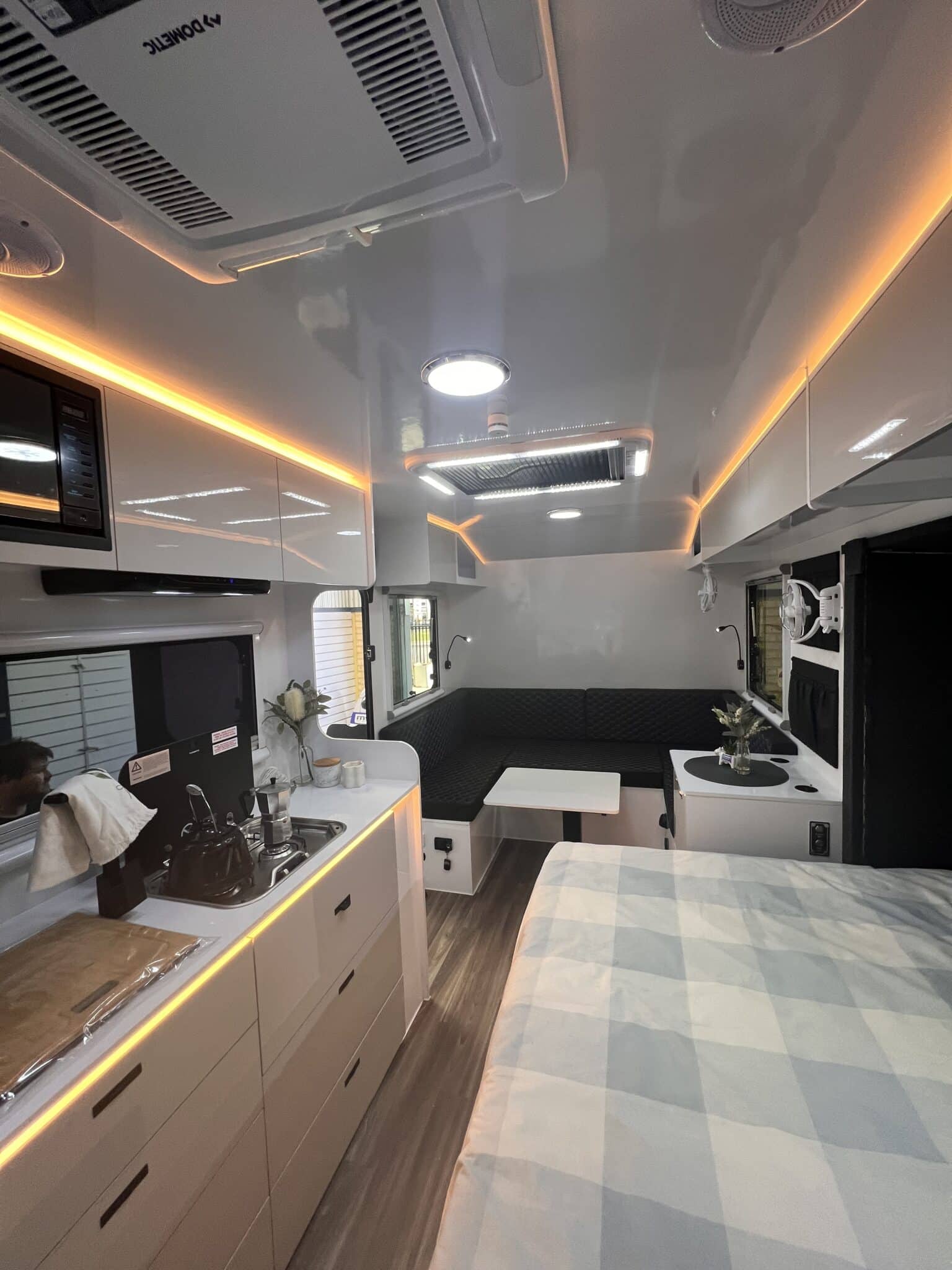

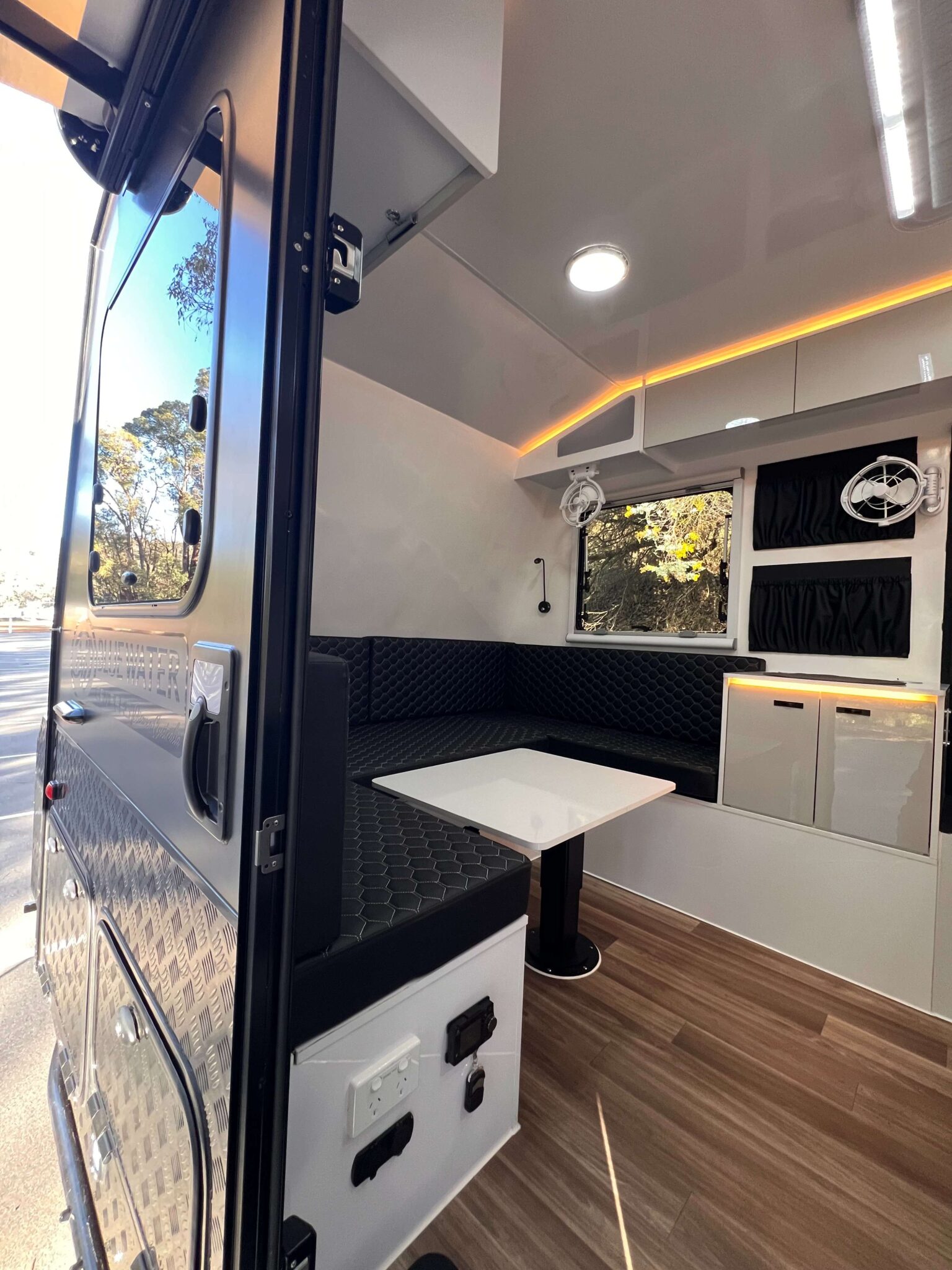

Club Lounge Style seating with long adjustable Table that converts to another bed

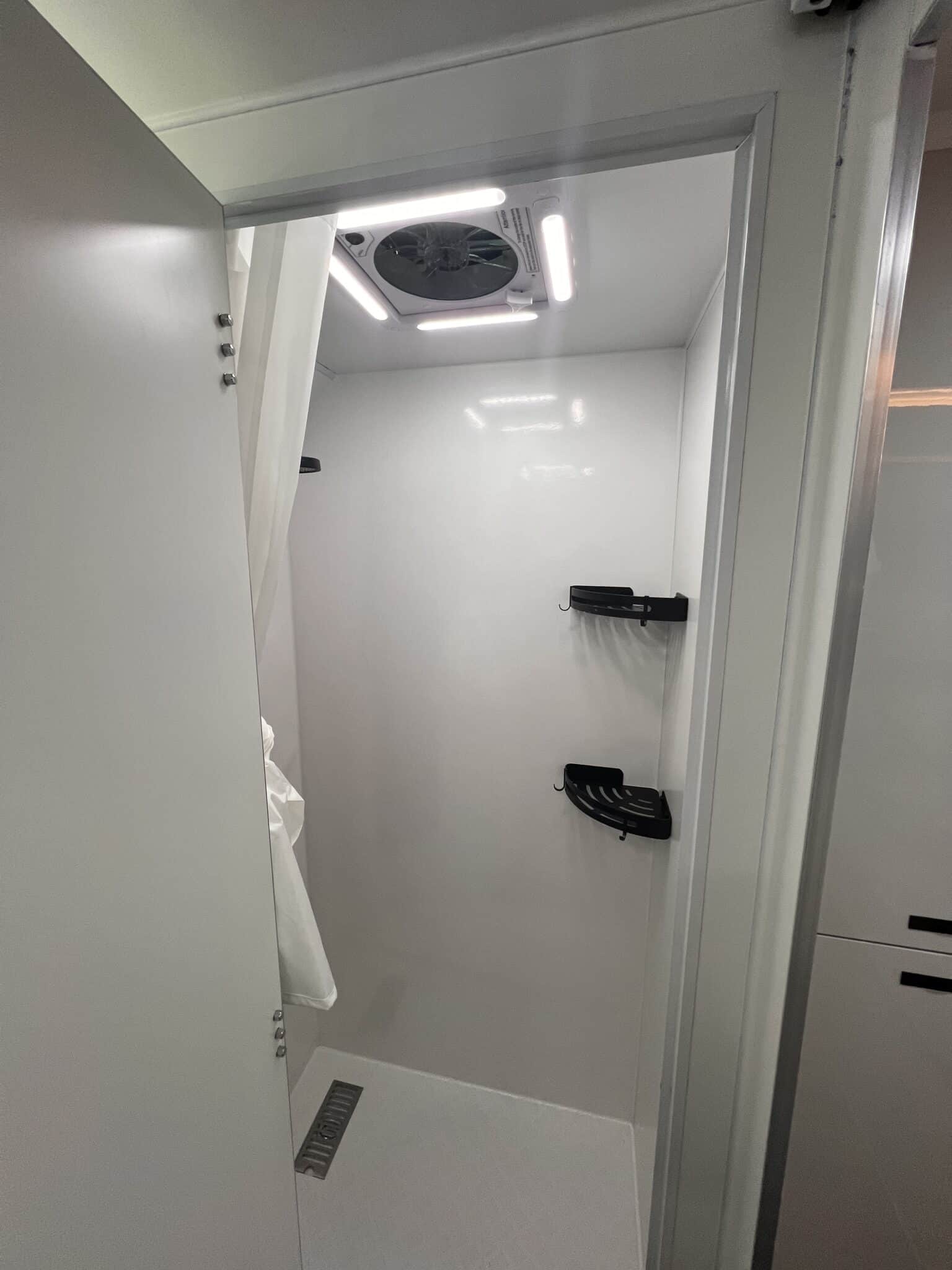

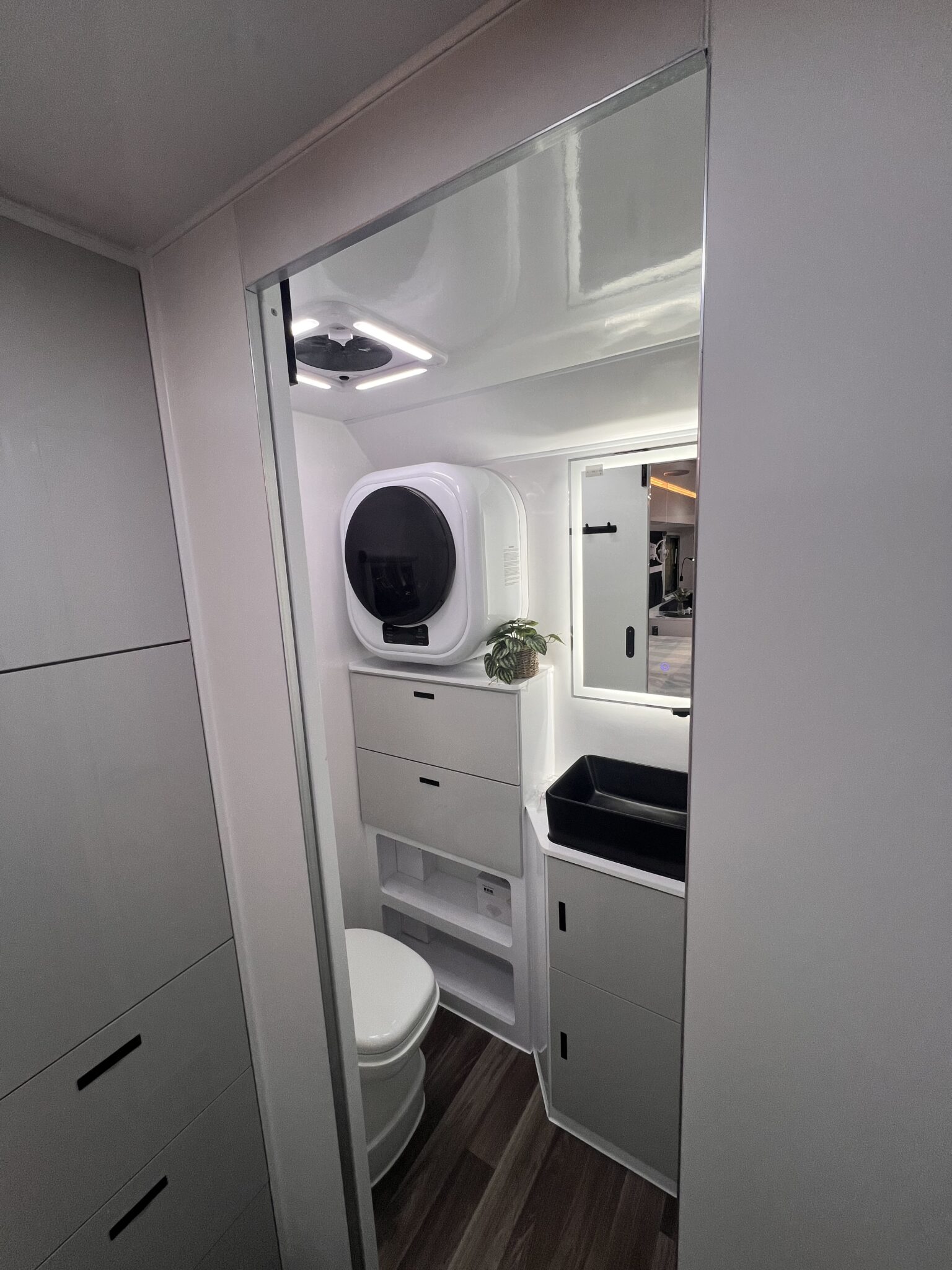

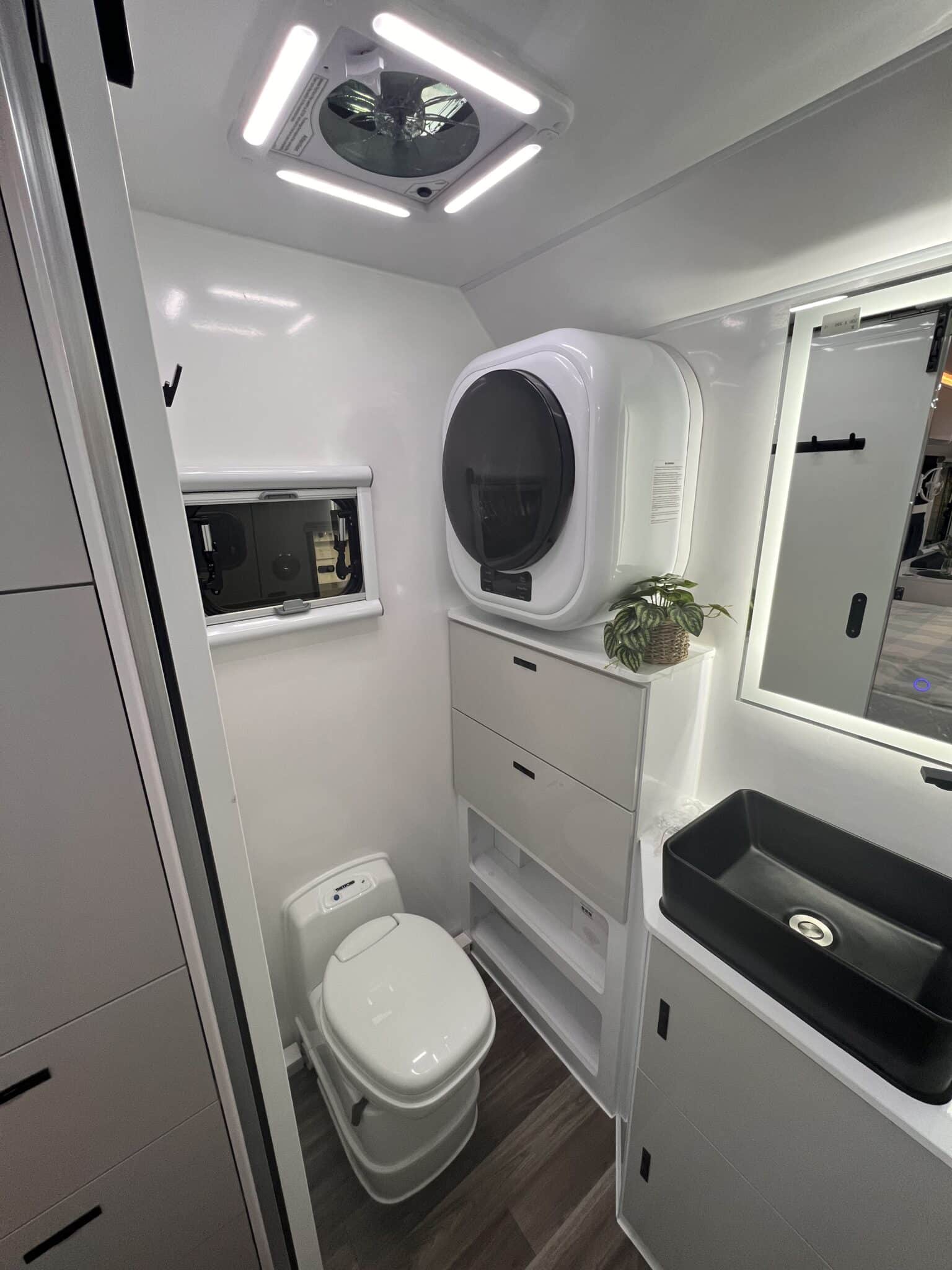

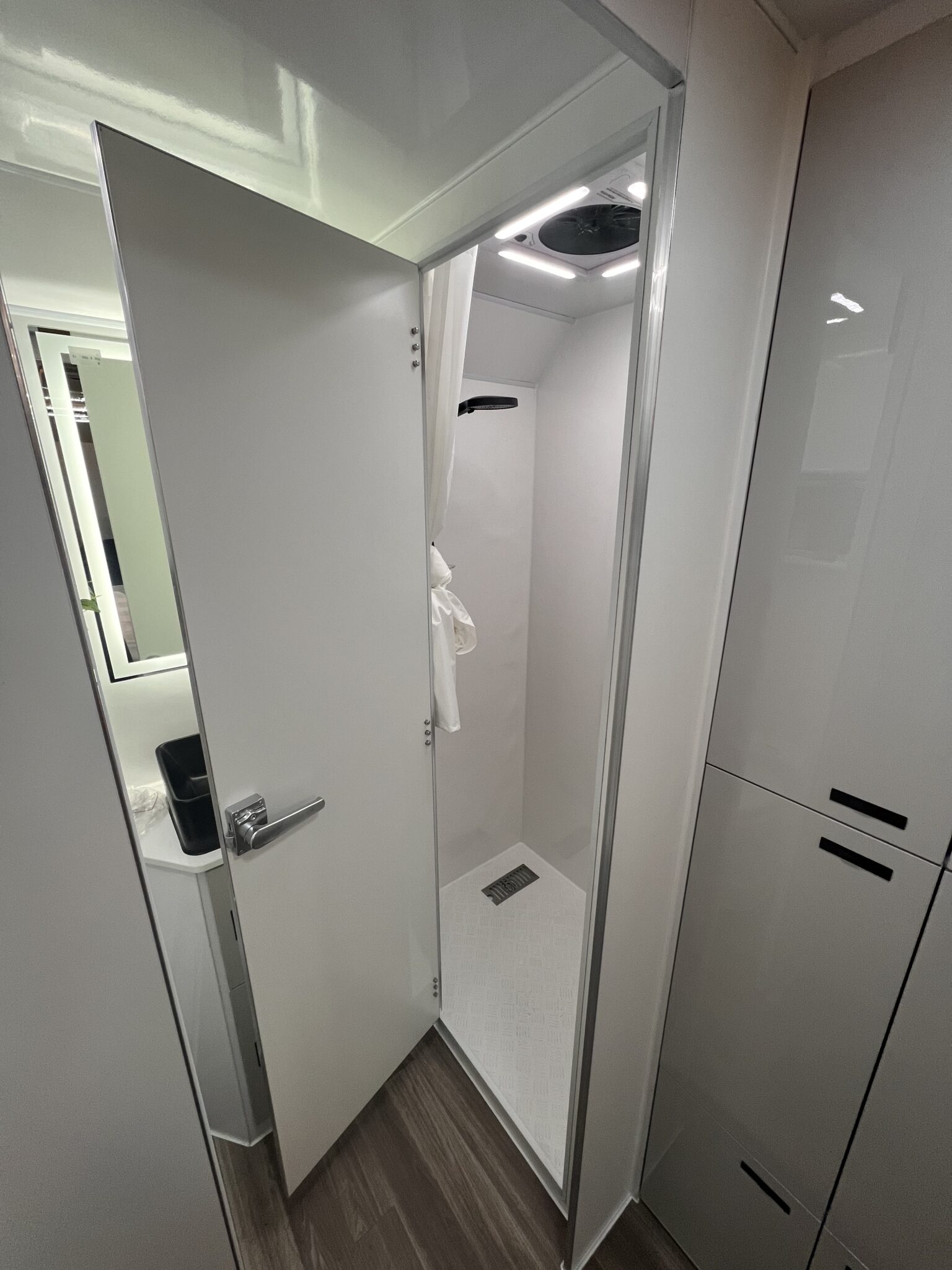

THETFORD toilet in Large Ensuite, Separate Shower and other ammenities
External Shower Ensuite with Mixer Tap
Sleeping accomodation for 2 + 2

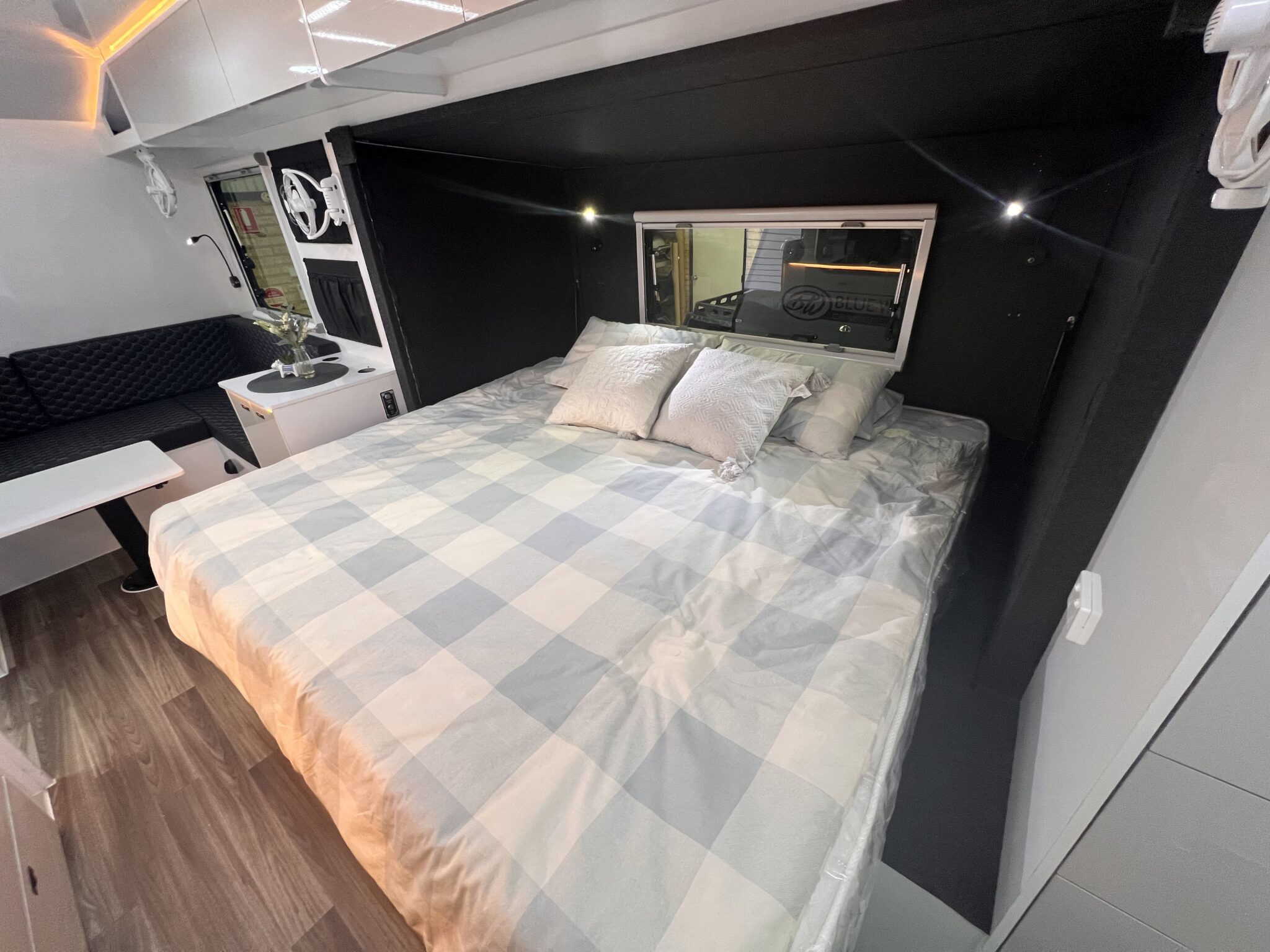

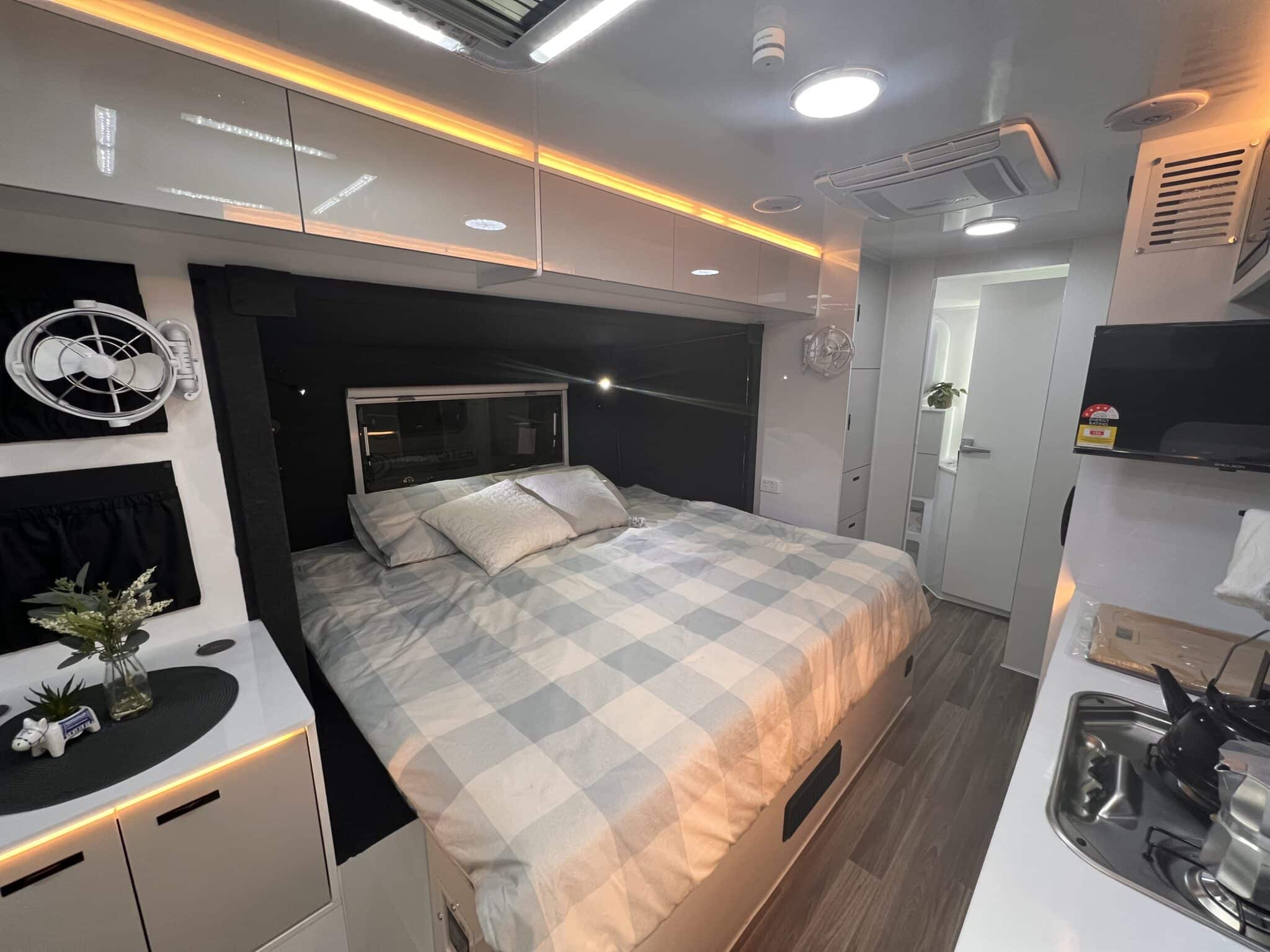

Pocket Spring Mattress with Memory Foam Topper Size 195cm wide x 195cm long x 20cm Thick
Reading lights either side of bed with 12v socket & USB Connection, Ceiling Fans, Wireless Phone Charging

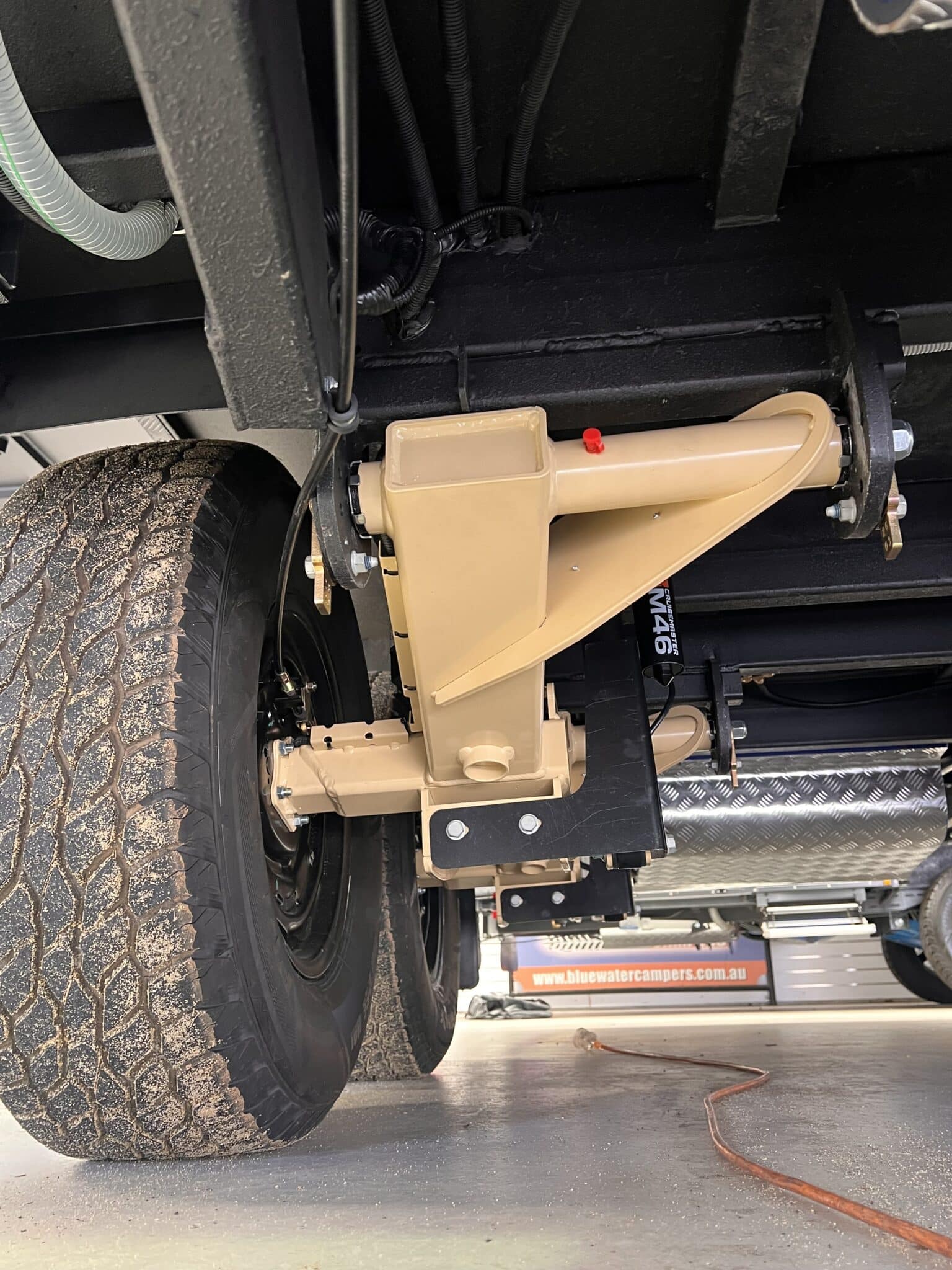

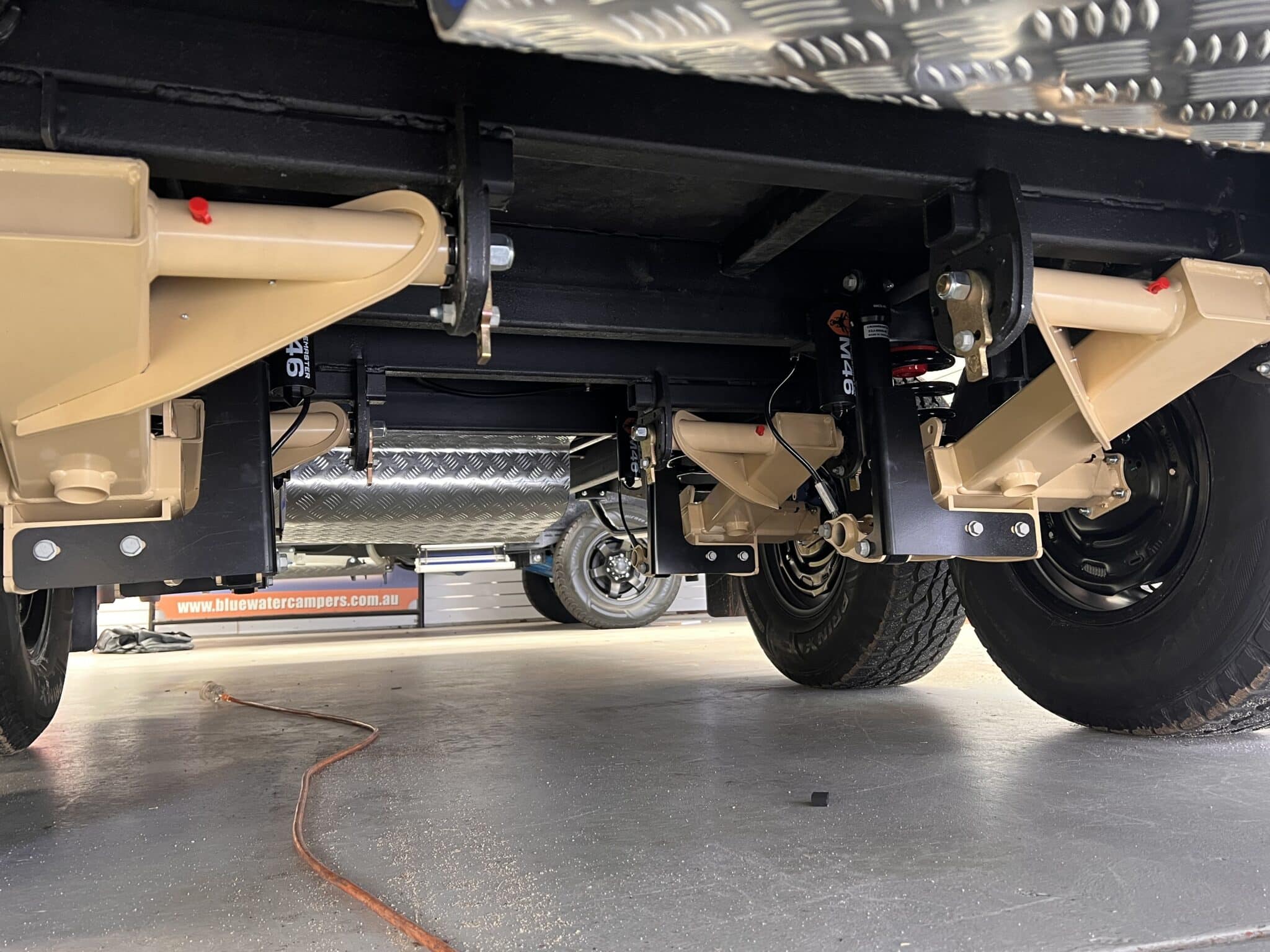

***********CRUISEMASTER ATX COILTANDEM SUSPENSION WITH 12" ELECTRIC DRUM BRAKES*************

CRUISEMASTER Gas Shock Absorbers Heavy Duty 16mm Eye
AUFOCUS Diesel Heater 2kw Plumbed with Stainless Steel tank

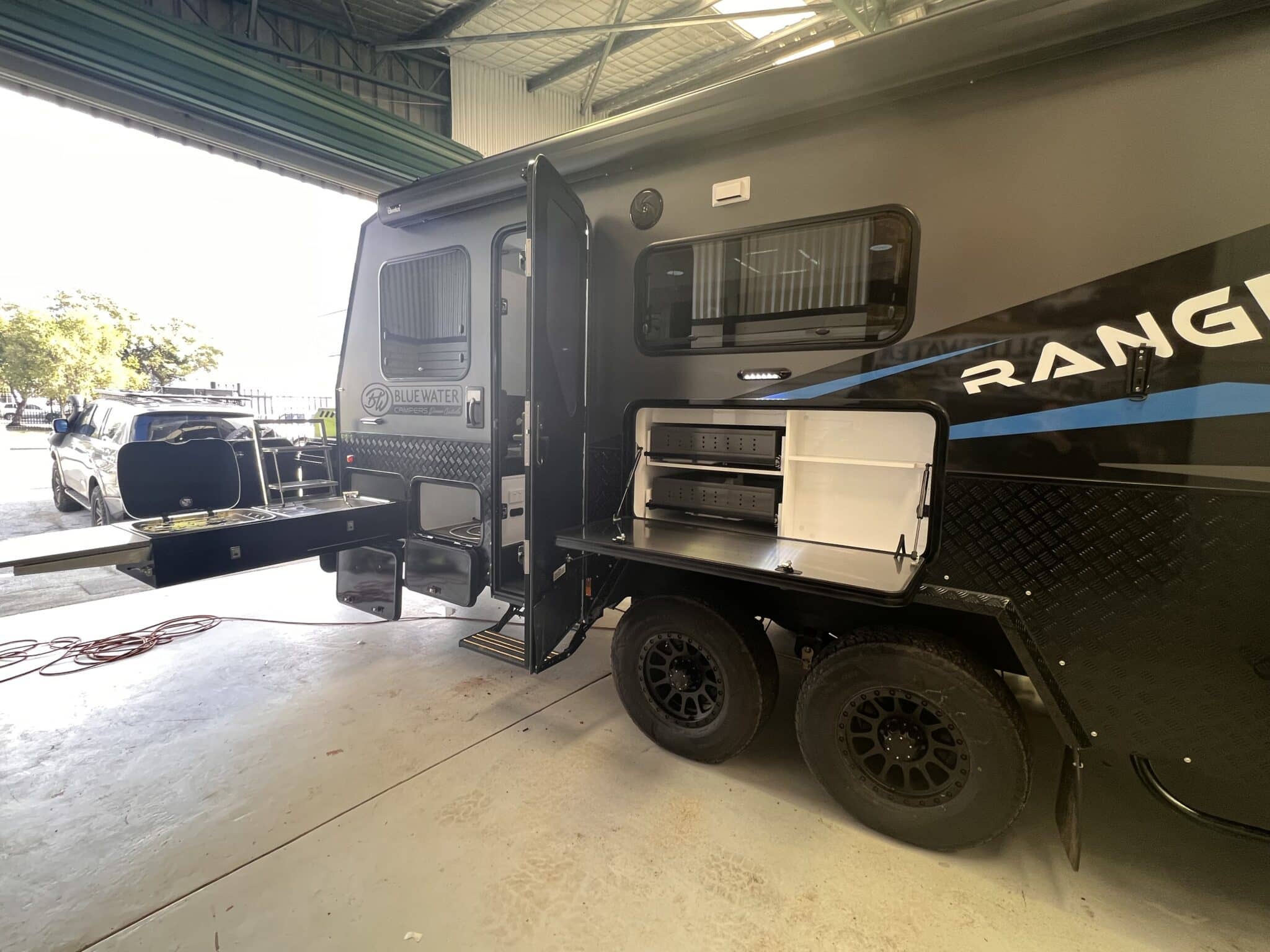

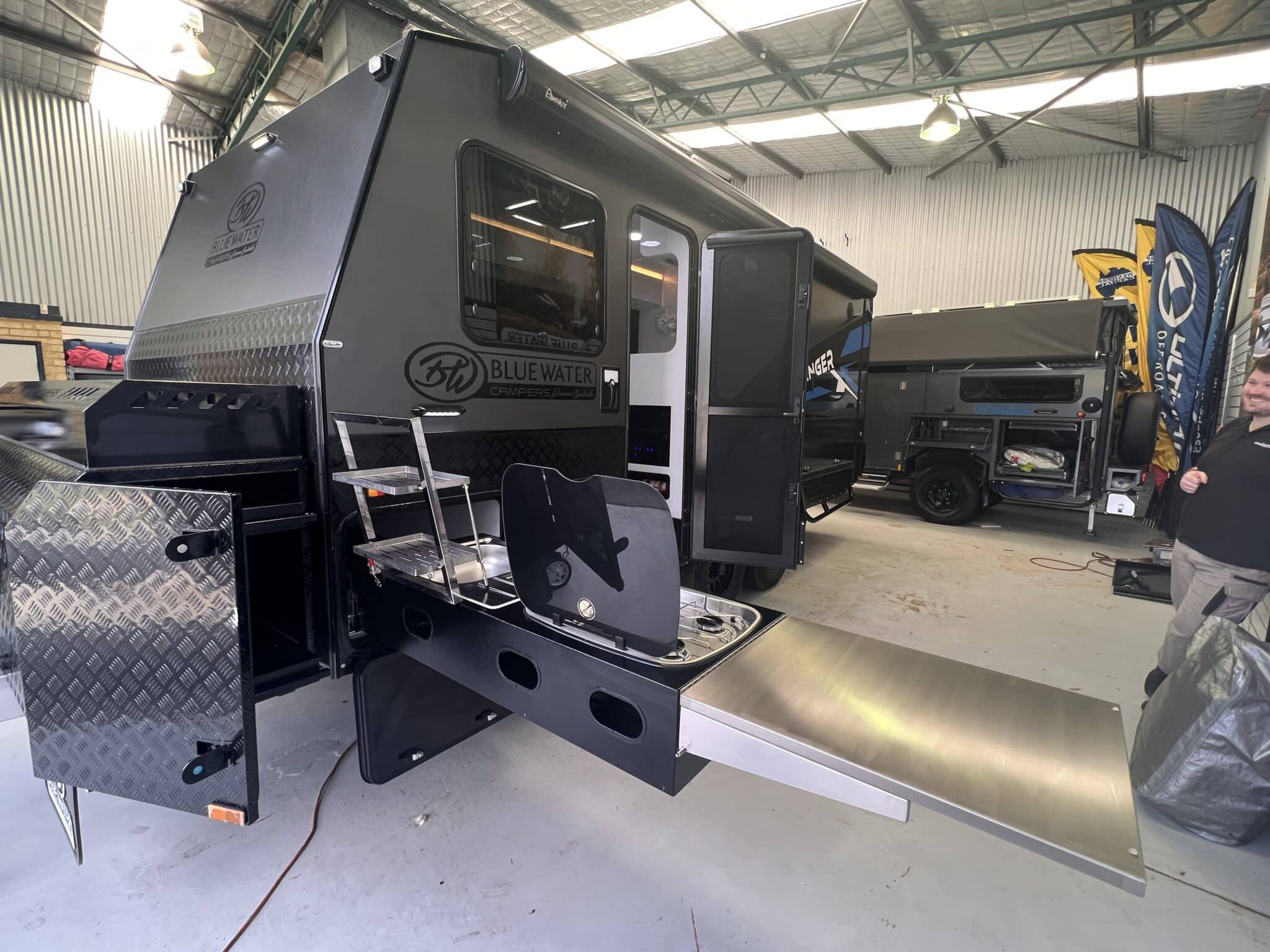

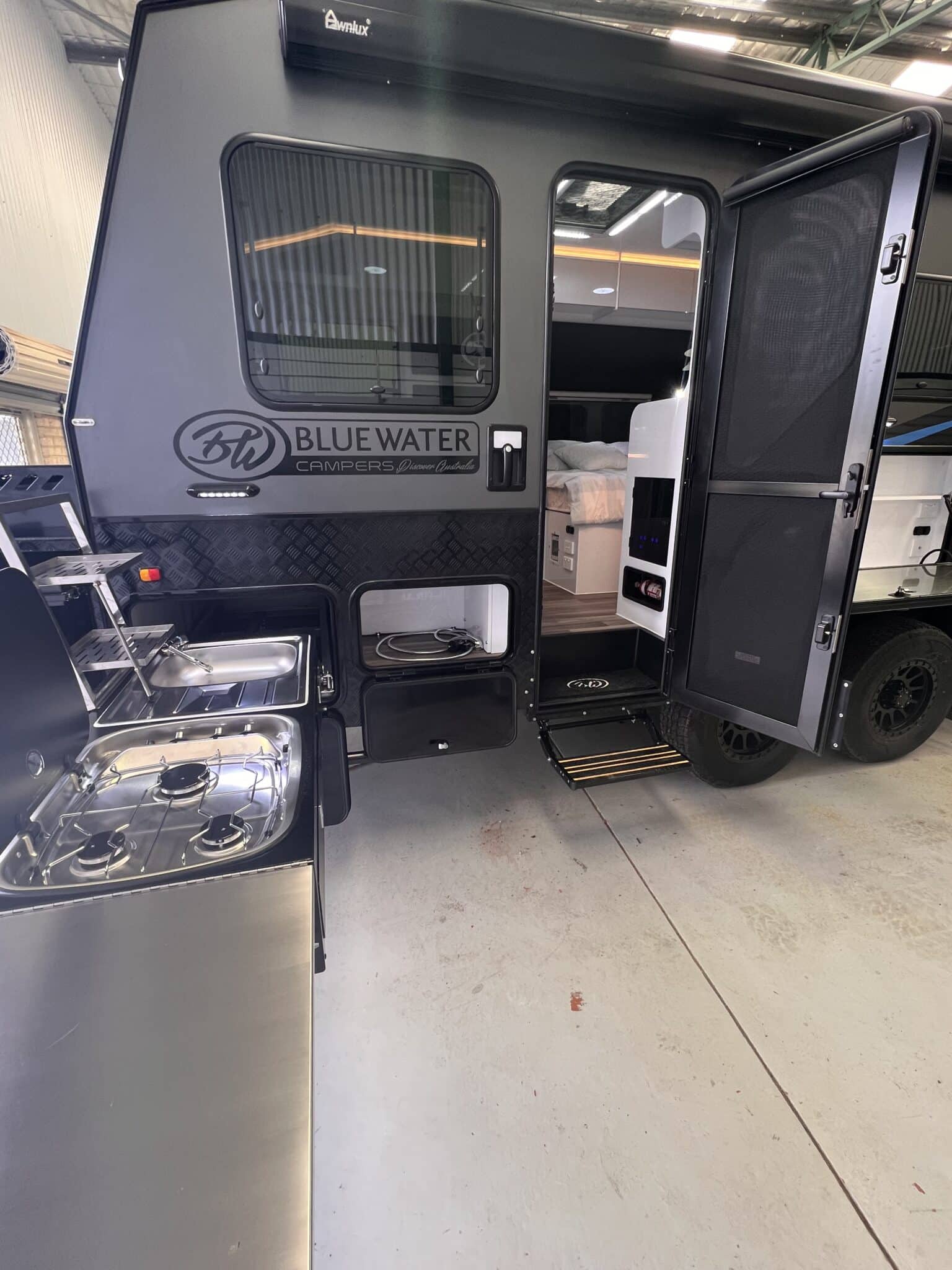

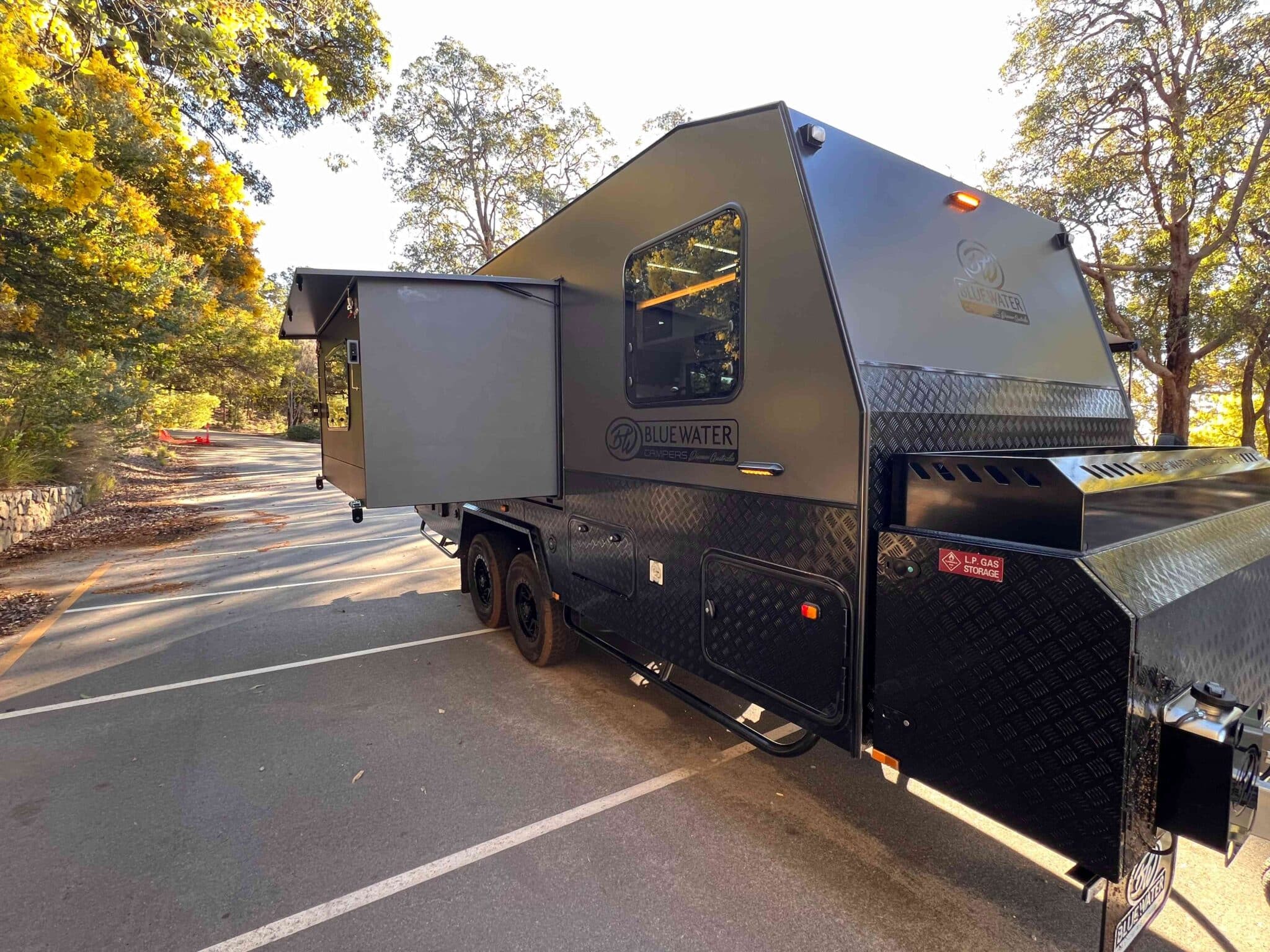

THETFORD External Kitchen with 3 Burner Stove and sink, bench Extension & Gas Compliance.

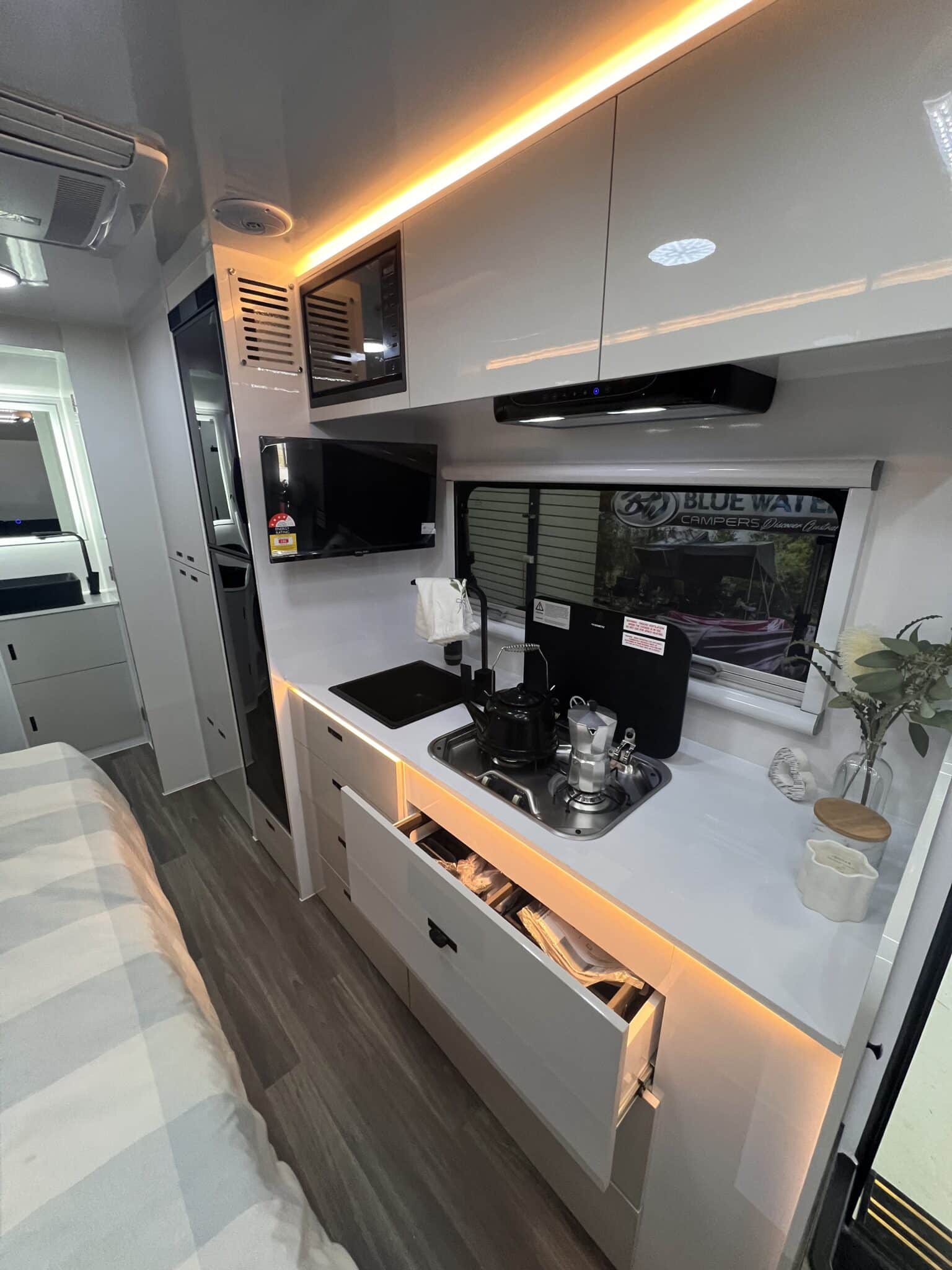

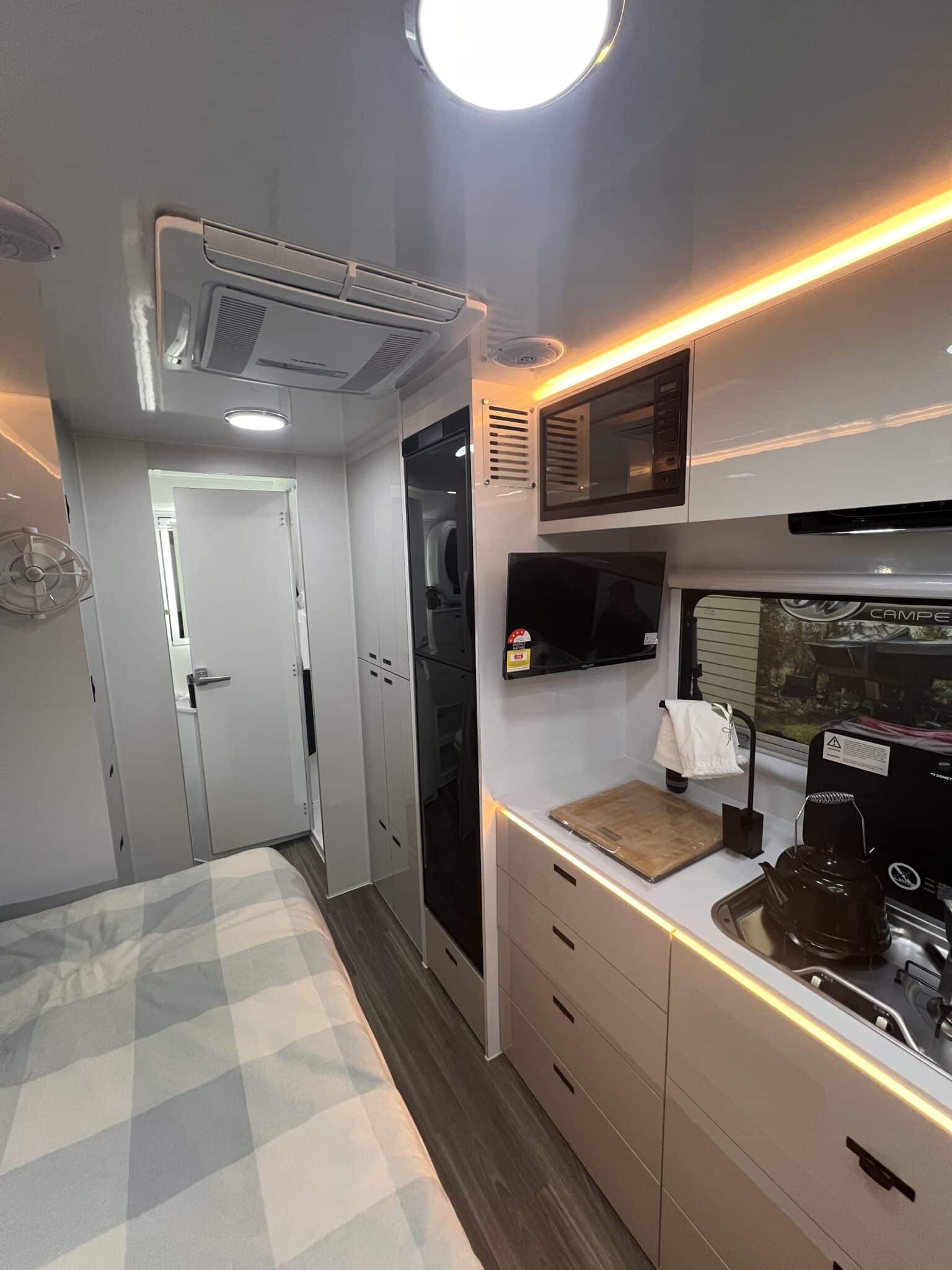

DOMETIC Internal Kitchen with 2 Burner Stove and Sink - Optional Induction single or twin Hob
External Kitchen fully plumbed water and electrics, no manual connections required

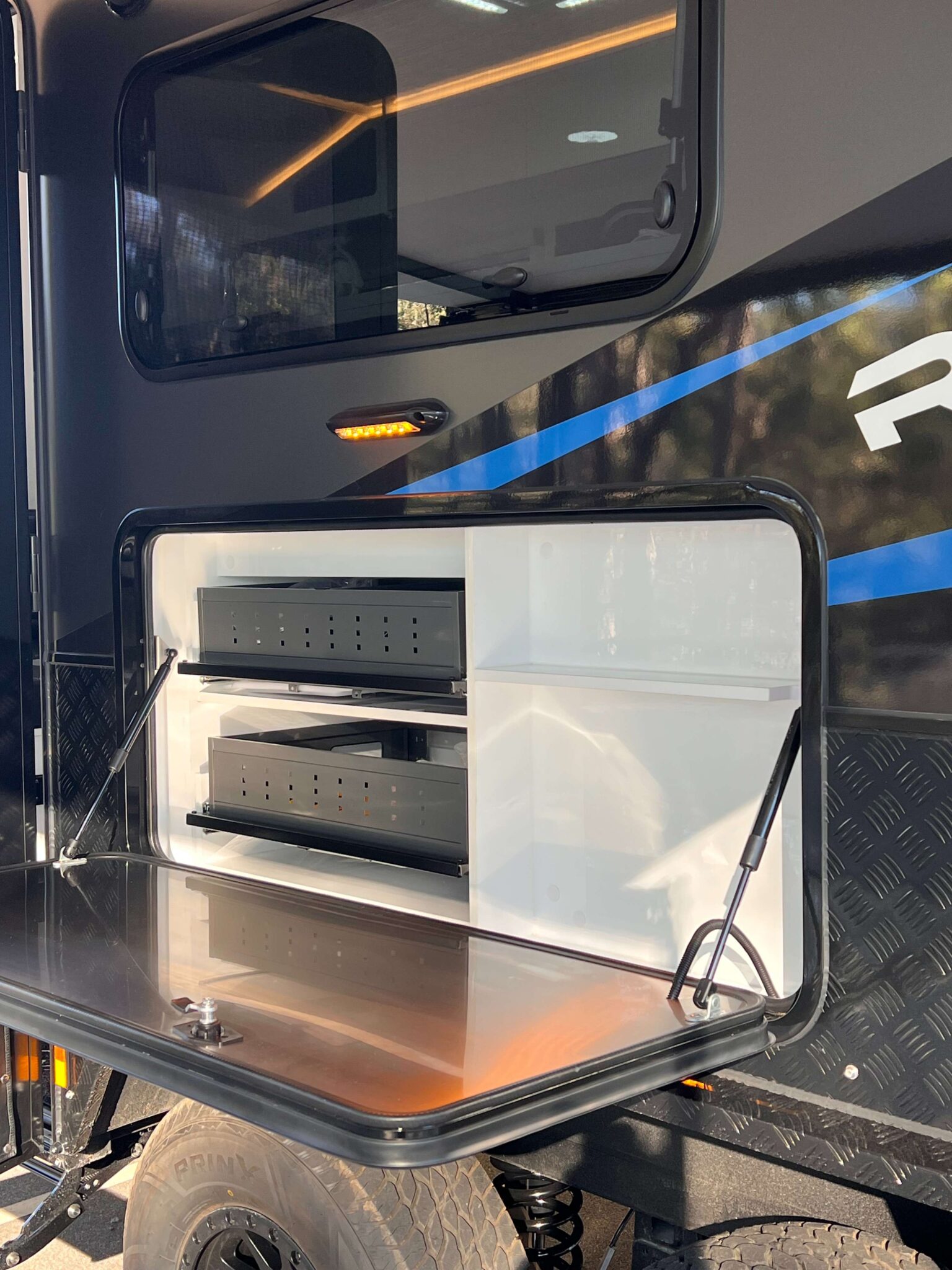

Fold down pantry with multiple storage areas
4 'drop down' adjustable stabiliser legs - Optional ARK Jack Legs available
CRUISEMASTER DO35 Hitch 3.5T and trailer plug included to suit your tow vehicle

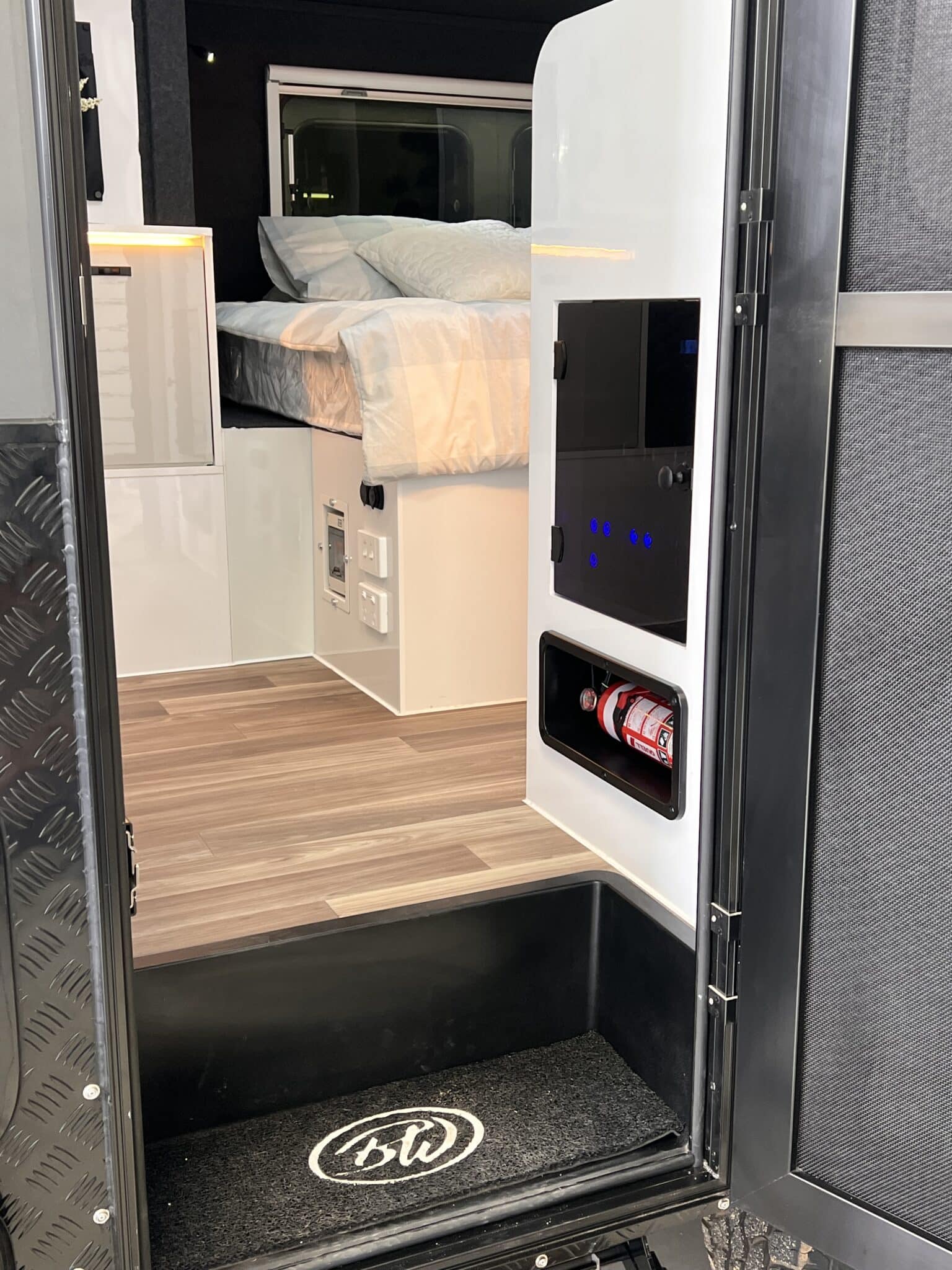

Swing down Aluminium Entry step
Rock Sliders each side to protect underbody
Dual rear rated 4.5T Heavy Duty recovery shackles

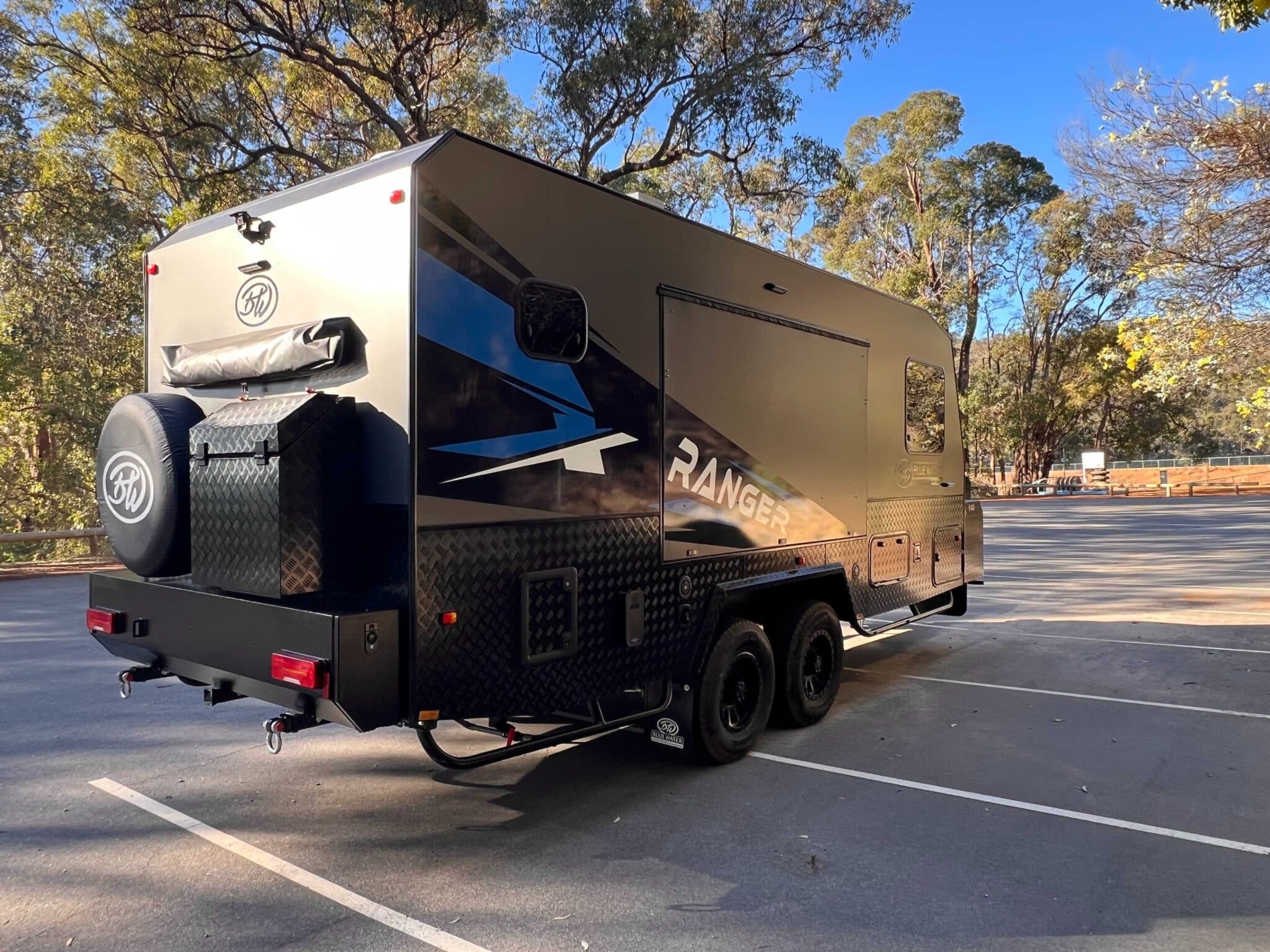

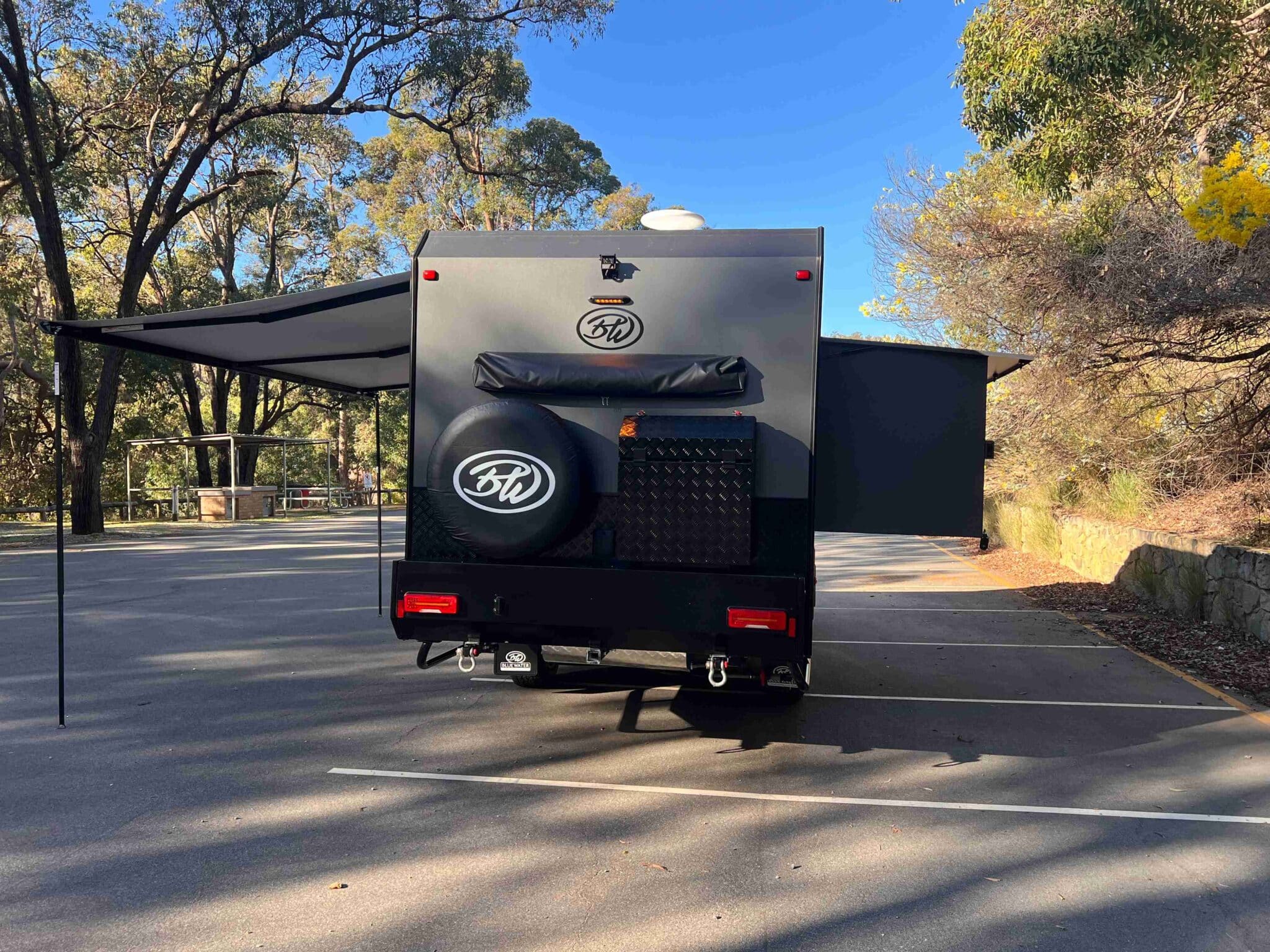

265/75 R16 MT or AT Tyres on Alloy Rims, Rear mounted spare Tyre with Toolbox (second spare opt)
240ltr Total Fresh Water capacity (F-80ltr & R-120ltr) + 120lt Grey Water Tank - Poly Food Grade Tanks
JOHN GUEST water hoses and Fittings, Watermarked Food Grade safe.
Drawbar Mounted Water tap
SEAFLO 9.5lm Water Pump with John Guest Hose and Fittings
SEAFLO Mains water connection with Pressure Reducing Valve
Fully Welded Aluminium Body, Underbody Sealer, Proof Coated with Mud Flaps
Drawbar Full Length RHS Galvanised 150x50x4mm
RHS Galvanised Chassis 100x50x4mm Proof Coated
ARK XO 750kg rated Off Road Dual Wheel Jockey Wheel

Ready to go further and stay longer?

Request a quote on the RANGER 19FT CARAVAN, or come and walk through one at our Kelmscott yard.
