XPEDITION PLUS HYBRID CARAVAN

Xpedition Plus – Built for the Long Haul, Ready for the Wild!

The all-new Bluewater Xpedition Plus is your ultimate companion for extended off-grid adventures. Based on the all conquering Xpedition MKII, we have lengthened the body to allow for a larger ensuite and full width sitting area that converts to another double bed. Crafted with rugged durability and refined comfort in mind, this off-road hybrid camper blends next-level capability with home-like convenience.

With a Tare of 2540kg and a generous ATM of 3000kg, it’s engineered to handle tough terrain while offering exceptional payload. The fully welded aluminium body and lifetime chassis and drawbar warranty mean it’s built to last – and built for anything.

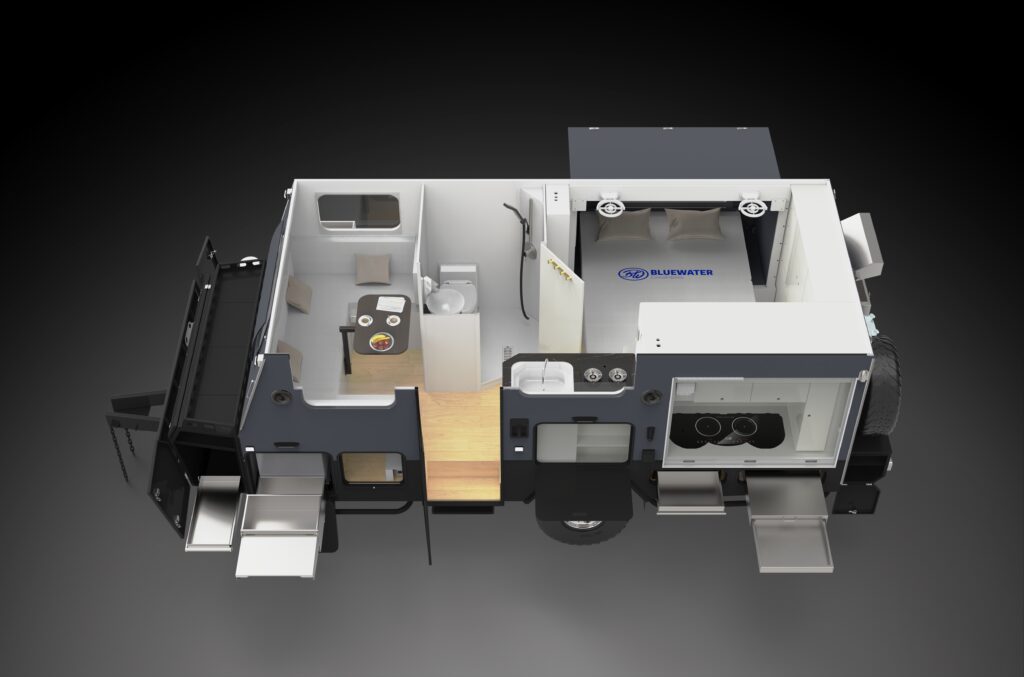

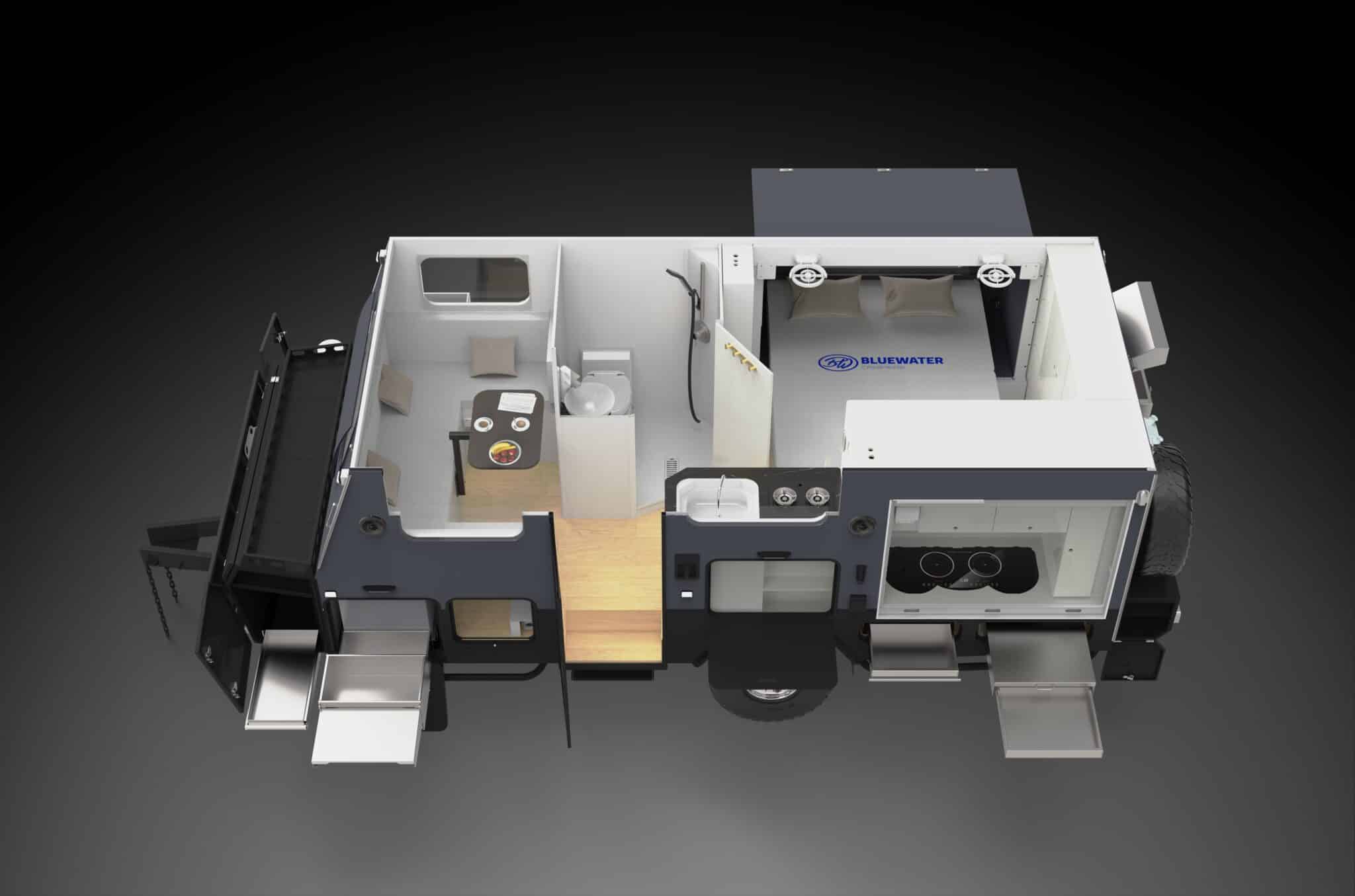

Step inside to discover a thoughtfully designed interior with sleeping space for 2 or 4, ensuite bathroom with Thetford toilet and shower, and Dometic air conditioning for year-round comfort. Dual kitchen zones – both internal and external – are fully plumbed and ready to go, featuring premium appliances like a Thetford 3-burner stove and Dometic 2-burner unit.

The 608Ah lithium battery system (upgradable to 912Ah), 600W solar, and Redarc BMS with 2000W inverter keep you powered up wherever the road leads. You’ll also enjoy modern touches such as a 24” smart TV, Bluetooth sound system, multiple USB/12V outlets, and orange insect-repelling lights inside and out.

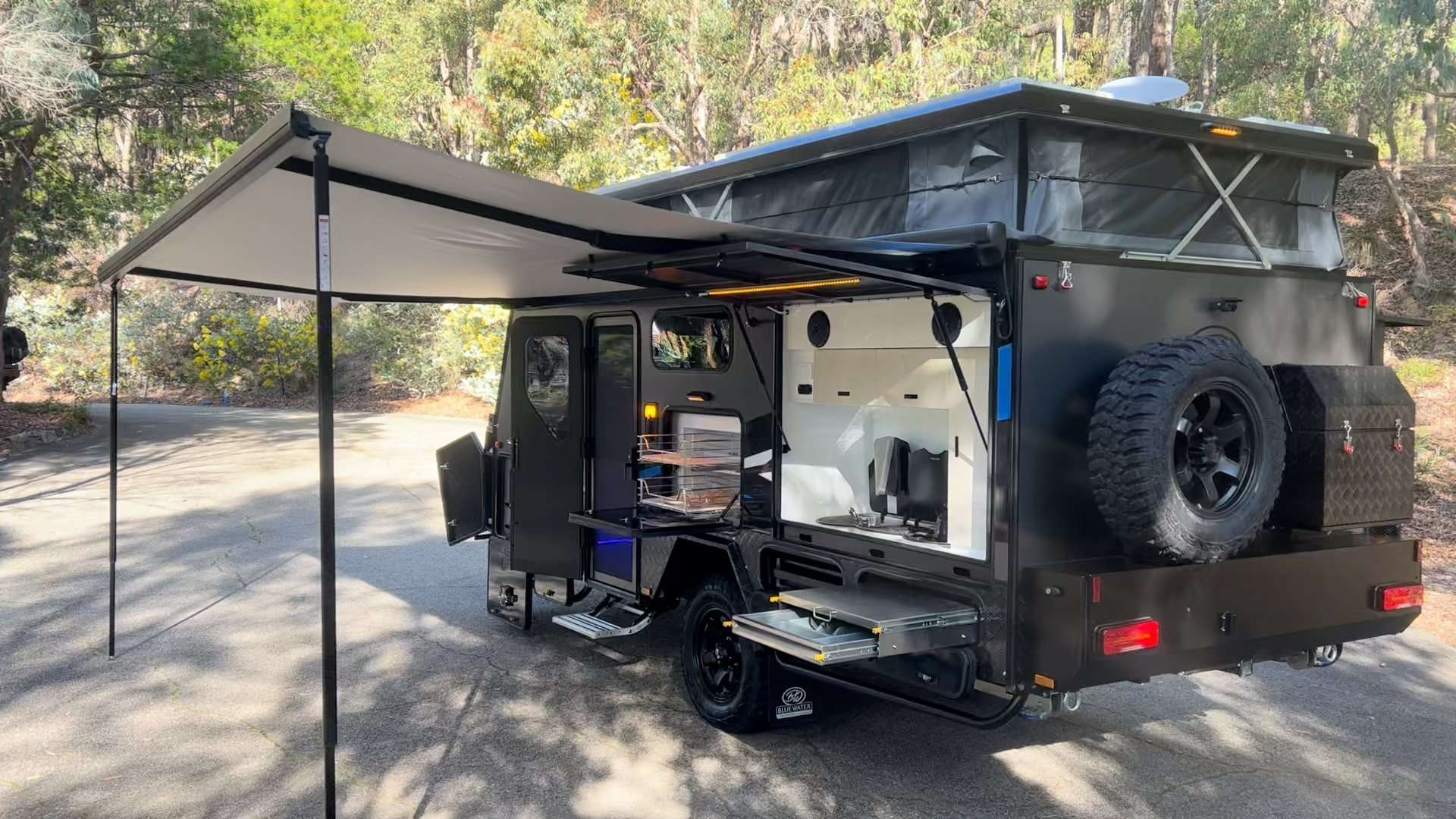

From the adjustable suspension and rock sliders to the 200L fresh water capacity, the Xpedition Plus is ready for serious travel. Add in ample storage, electric awning, dual gas bottles, and provisions for bike racks, and this camper ticks every box for life on and off the beaten path.

Xpedition Plus – Go further, stay longer, live bigger.

Technical Specifications

TYPE

Hybrid Caravan

TARE

2540kg

ATM

3000kg

LENGTH

6.8m

WIDTH

2.15m

HEIGHT

2.55m

BALL WEIGHT

220kg

Download the brochure

Download the accessories list

Inclusions

608ah Lithium Batteries – Option for up to 912ah
600W Roof Mounted Mono Crystaline Solar Panels
Redarc Manager Alpha 50 BMS with Redvision Display
Redarc 2000W RS3 Pure Sine Wave Invertor with Pass through to 240V system
Truma Ultra Rapid Hot Water 14 litre storage unit, Operates on Gas & 240v
Dometic Fresh Jet Ultra Lite 2.6kw Invertor Airconditioner – Roof Mounted
24″ Engalon Smart TV with built in Chromecast and BT Connection
Premium Sound system with speakers inside and out with Bluetooth Connection
12V 3speed Gimbal Fan 360 degree range x 2
Anderson plug connectors for vehicle and solar input for extra panels
Electric Emergency Breakway with 2 ADR Compliant Safety Chains
Multiple 12v & USB sockets, inside and out
Internal and External LED Lights with Orange Insect Repellant option
Wireless Camera with 7″ Screen, wired to driving and reverse lights

Multiple storage Compartments inside & out
Fridge Slide: 980mm long x 550mm wide x 480mm high
Provision for Rear bike rack tongue / receiver
1 x 8.5kg and 1 x 3.75 kg gas bottle holders stored in weatherproof compartment

Sleeping accomodation for 4
Pocket Spring Mattress with Memory Foam Topper Size 150cm wide x 195cm long x 20cm Thick.
Caffe Lounge converts to Double Size Bed 2000mm long x 1200mm wide
Reading lights either side of bed with 12v socket & USB Connection, Fans

Fully Enclosed Annex with Roof, Walls, Side Skirt,PVC Floor
Windows Tinted, Inside Flyscreen and Blockout Blinds
Self repairing zippers to all Annex windows & doors
4.5M Awnlux Cassette Electric awning with anti flap kit included
Aussie Traveller Split Dual entry door with flyscreen mesh and roller Blind fitted
Large Ensuite with Thetford Toilet, Shower and other ammenities
External Shower Ensuite with Mixer Tap
Sleeping accomodation for 2 or 4
Pocket Spring Mattress with Memory Foam Topper Size 150cm wide x 190cm long x 20cm Thick
Bench Style seating with long adjustable Table, Main bed converts to extra lounge area
Reading lights either side of bed with 12v socket & USB Connection, Fans

Heavy Duty Coil Springs paired with Adjustable Independent Suspension
Lovells Gas Shock Absorbers Heavy Duty 16mm Eye
Diesel Heater 2kw Plumbed with 15l tank
External Kitchen with Thetford Combination 3 Burner Stove and sink, bench Extension & Gas Compliance
Internal Kitchen with Dometic 2 Burner Stove and Sink
External Kitchen fully plumbed water and electrics, no manual connections required
Fold down pantry with multiple storage areas
4 ‘drop down’ adjustable stabiliser legs – Optional ARK Jack Legs available
Cruisemaster DO35 Hitch 3.5T and trailer plug included to suit your tow vehicle
Swing down Aluminium Entry step
Rock Sliders each side to protect underbody
Dual rear rated 4.5T Heavy Duty recovery shackles
265/75 R16 MT or AT Tyres on Alloy Rims, Rear mounted spare Tyre with Toolbox (second spare opt)
200ltr Total Fresh Water capacity (F-80ltr & R-120ltr) + 80lt Grey Water Tank – Poly Food Grade Tanks
John Guest water hoses and Fittings, Watermarked Food Grade safe.
Drawbar Mounted Water tap
Seaflo 9.5lm Water Pump with John Guest Hose and Fittings
Seaflo Mains water connection with Pressure Reducing Valve
Fully Welded Aluminium Body, Underbody Sealer, Proof Coated with Mud Flaps
Drawbar Full Length RHS Galvanised 150x50x4mm
RHS Galvanised Chassis 100x50x4mm Proof Coated
12” Electric Brakes with Mechanical Handbrake and Electric breakaway
ARK XO 750kg rated Off Road Dual Wheel Jockey Wheel
***LIFETIME CHASSIS AND DRAWBAR WARRANTY***
