Bluewater Xcursion – Compact Strength, Complete Comfort

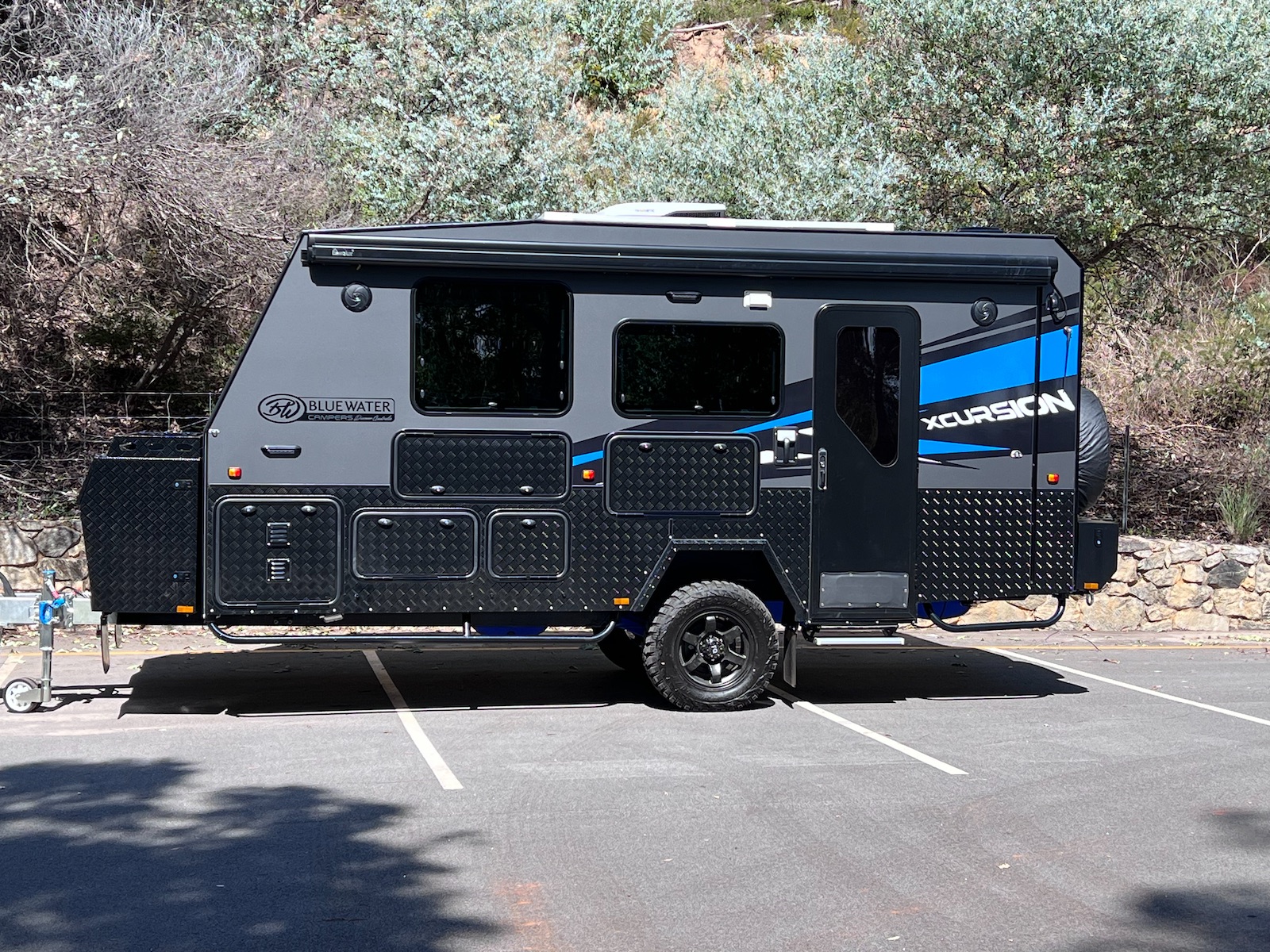

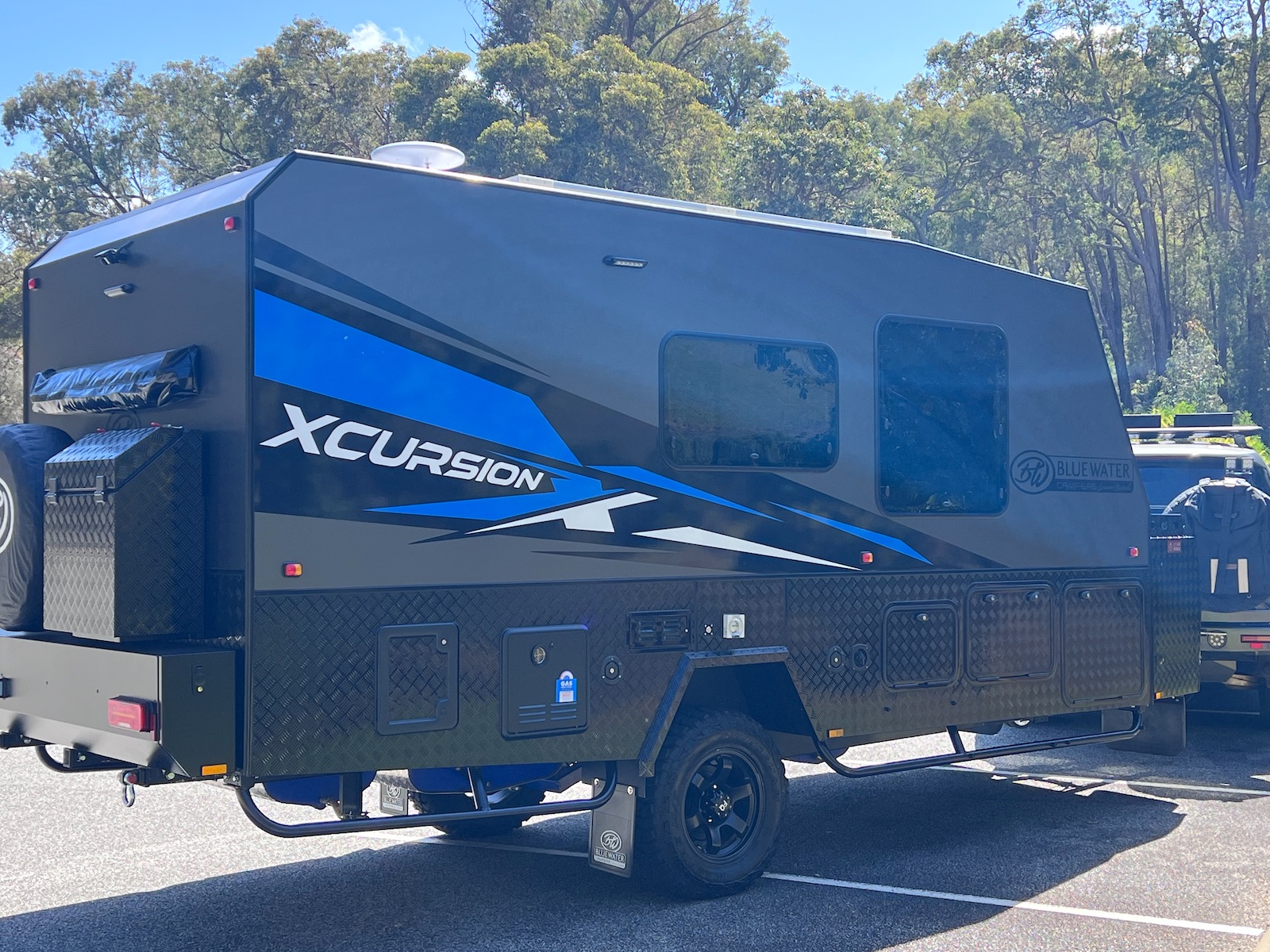

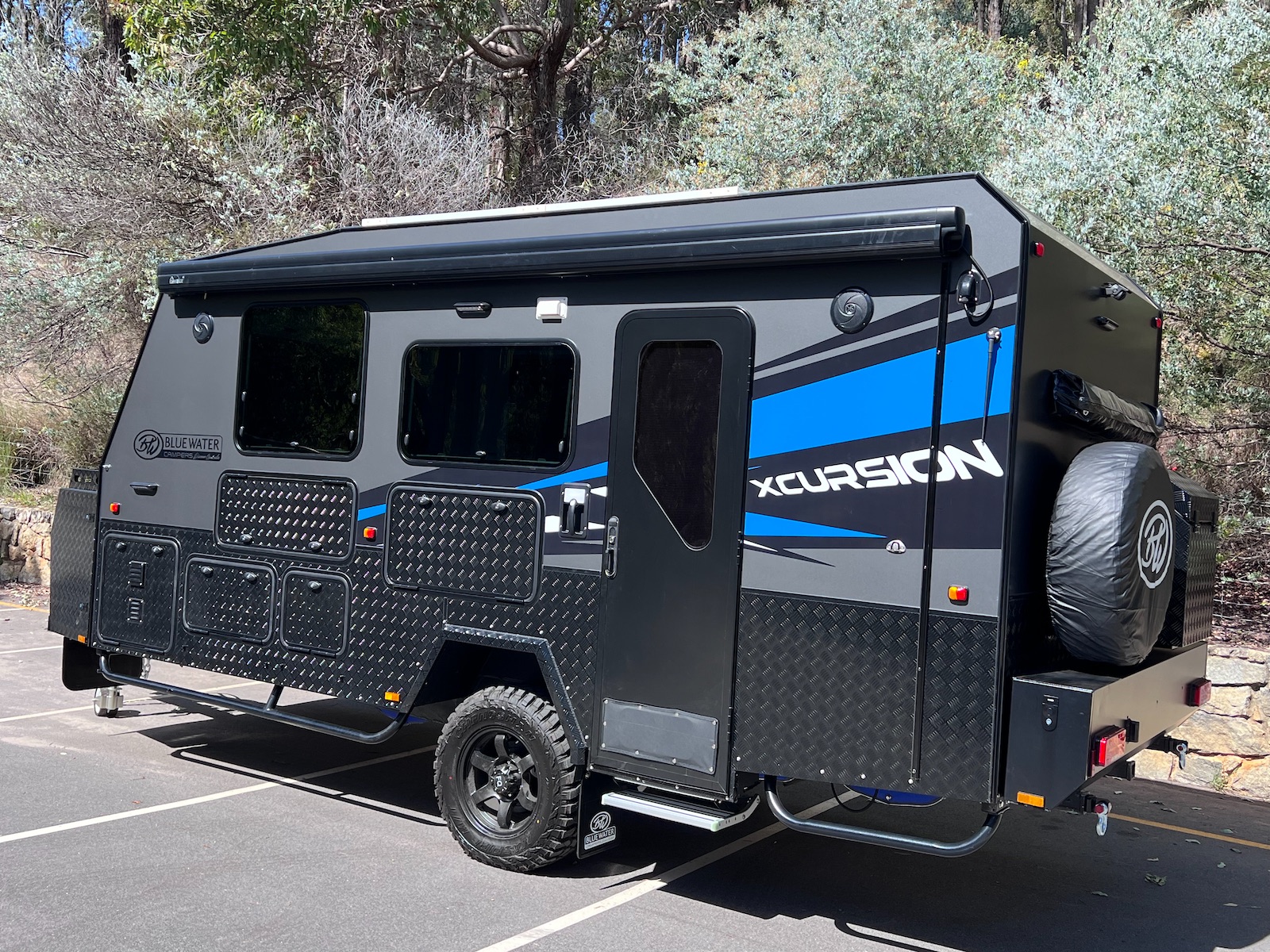

The all-new Bluewater Xcursion is designed for travellers who want maximum capability in a smart, compact footprint. Built on a fully welded aluminium body and backed by a lifetime chassis and drawbar warranty, the Xcursion is tough enough for Australia’s harshest tracks yet refined enough to make every trip comfortable.

With a tare of 2,540 kg and ATM of 3,000 kg, the Xcursion delivers solid payload capacity while remaining agile to tow. Heavy-duty coil springs with adjustable independent suspension, Lovells gas shocks, Cruisemaster DO35 hitch, and off-road tyres make light work of rough terrain.

Step inside and discover a thoughtfully designed interior built for two. A spacious ensuite includes a Thetford toilet, shower, and hot water system, while the pocket-spring queen mattress with memory foam topper ensures restful nights.

The Xcursion comes loaded with premium features for effortless off-grid living:

608Ah lithium battery system (upgradable to 912Ah), managed by Redarc Alpha BMS with Redvision display
600W roof-mounted solar and a 2000W inverter for reliable power anywhere
Internal and external kitchens, fully plumbed, with Dometic and Thetford appliances
200 L fresh water storage plus 60 L grey water tank
Diesel heater, Dometic air conditioning, and insect-repellent LED lighting for year-round comfort
24” smart TV with Chromecast, Bluetooth sound system, and multiple 12V/USB outlets

Outside, the Xcursion is ready for extended stays with a cassette electric awning and full annex system, external shower ensuite, large storage compartments, and provisions for bike racks.

From its rugged undercarriage and protective rock sliders to its modern creature comforts, the Xcursion blends durability with convenience in true Bluewater style.

TECHNICAL SPECIFICATIONS

TYPE	Hybrid Camper Trailer
TARE	2540kg
ATM	3000kg
PAYLOAD	kg
LENGTH	7m overall
WIDTH	2.25m overall
HEIGHT	3.05m
BALL WEIGHT	220kg

INCLUSIONS

Fully Enclosed Annex with Roof, Walls, Side Skirt,PVC Floor
Windows Tinted, Inside Flyscreen and Blockout Blinds
Self repairing zippers to all Annex windows & doors
4.5M Awnlux Cassette Electric awning with anti flap kit included

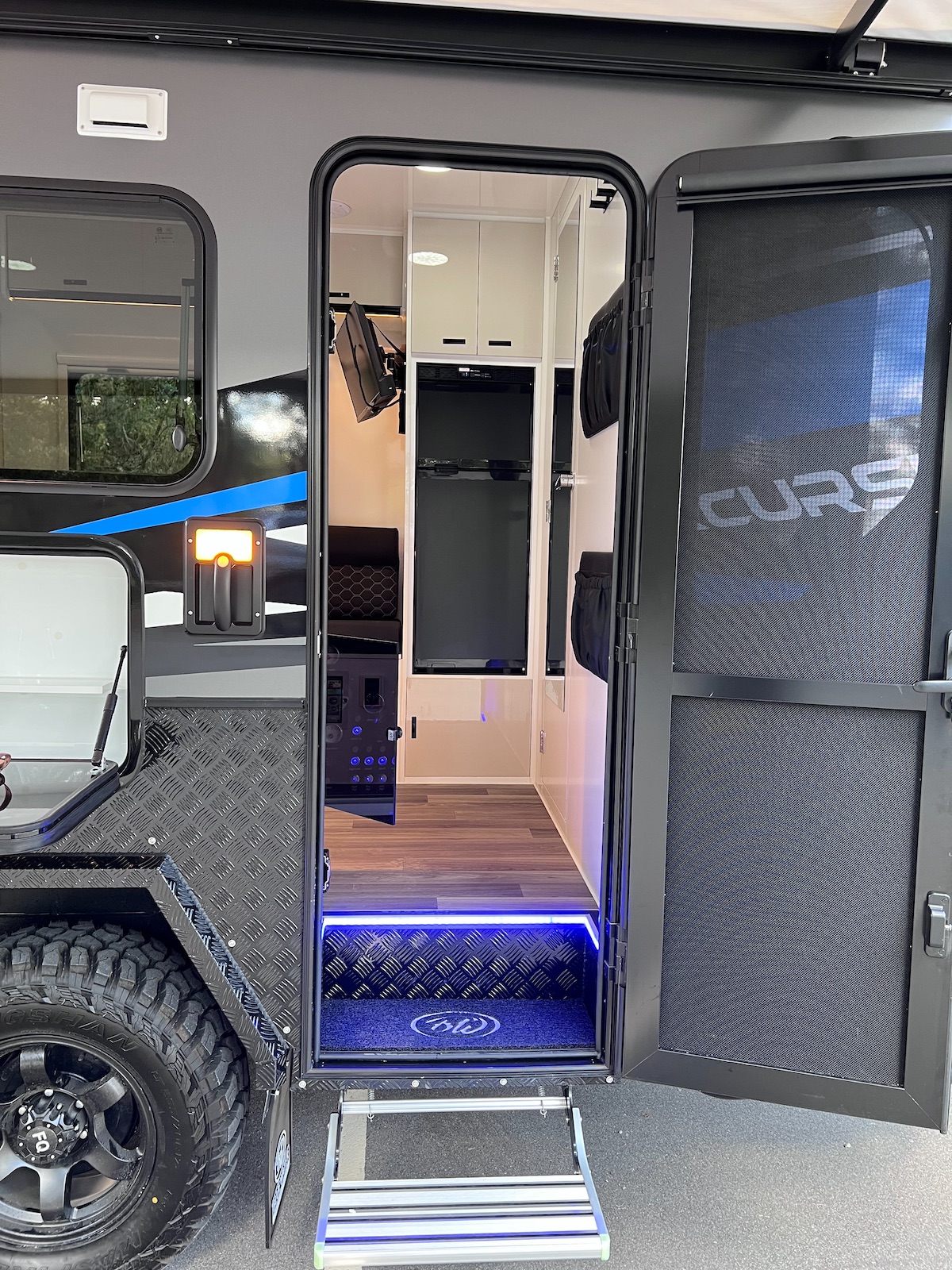

Aussie Traveller Split Dual entry door with flyscreen mesh and roller Blind fitted

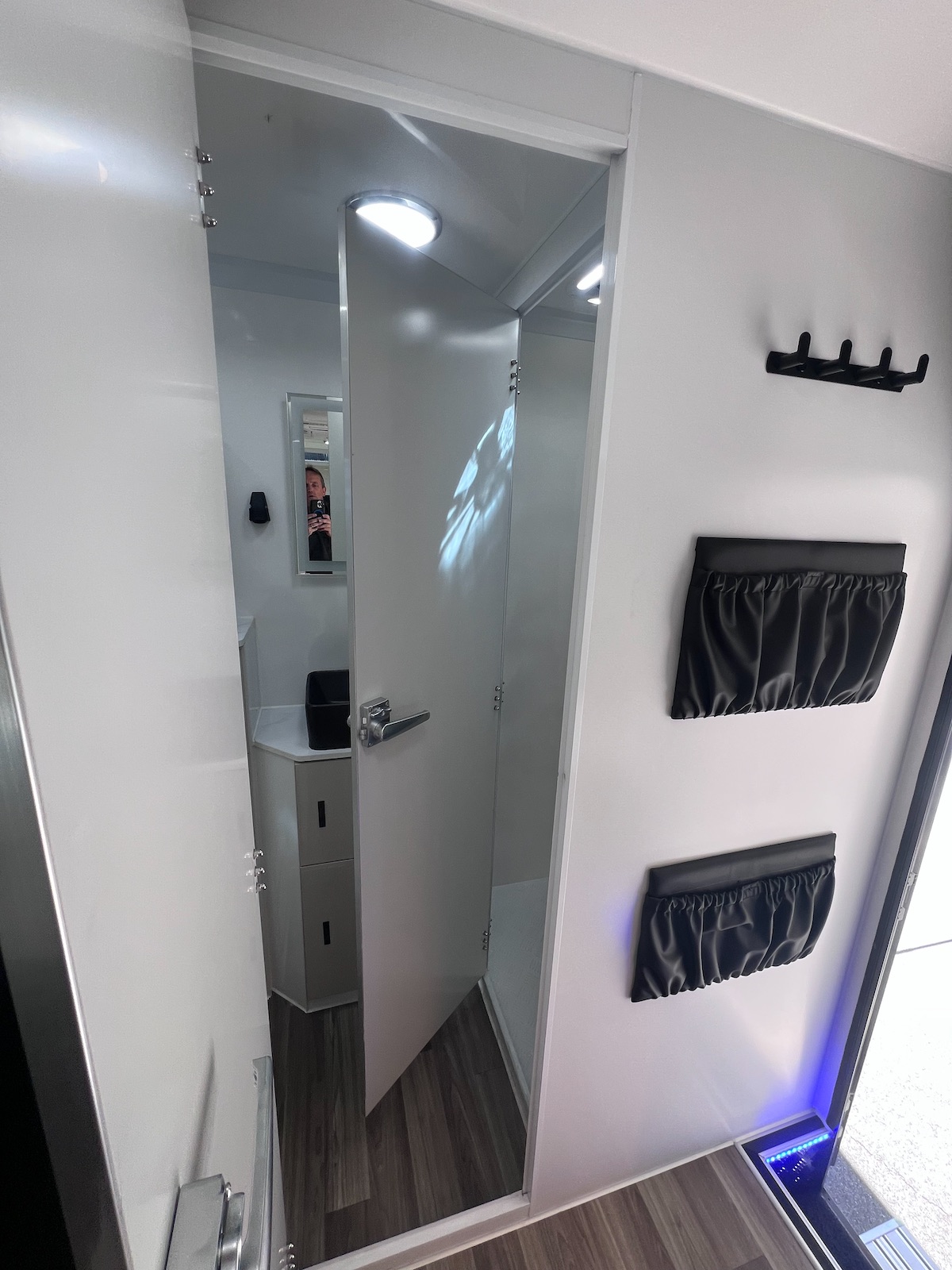

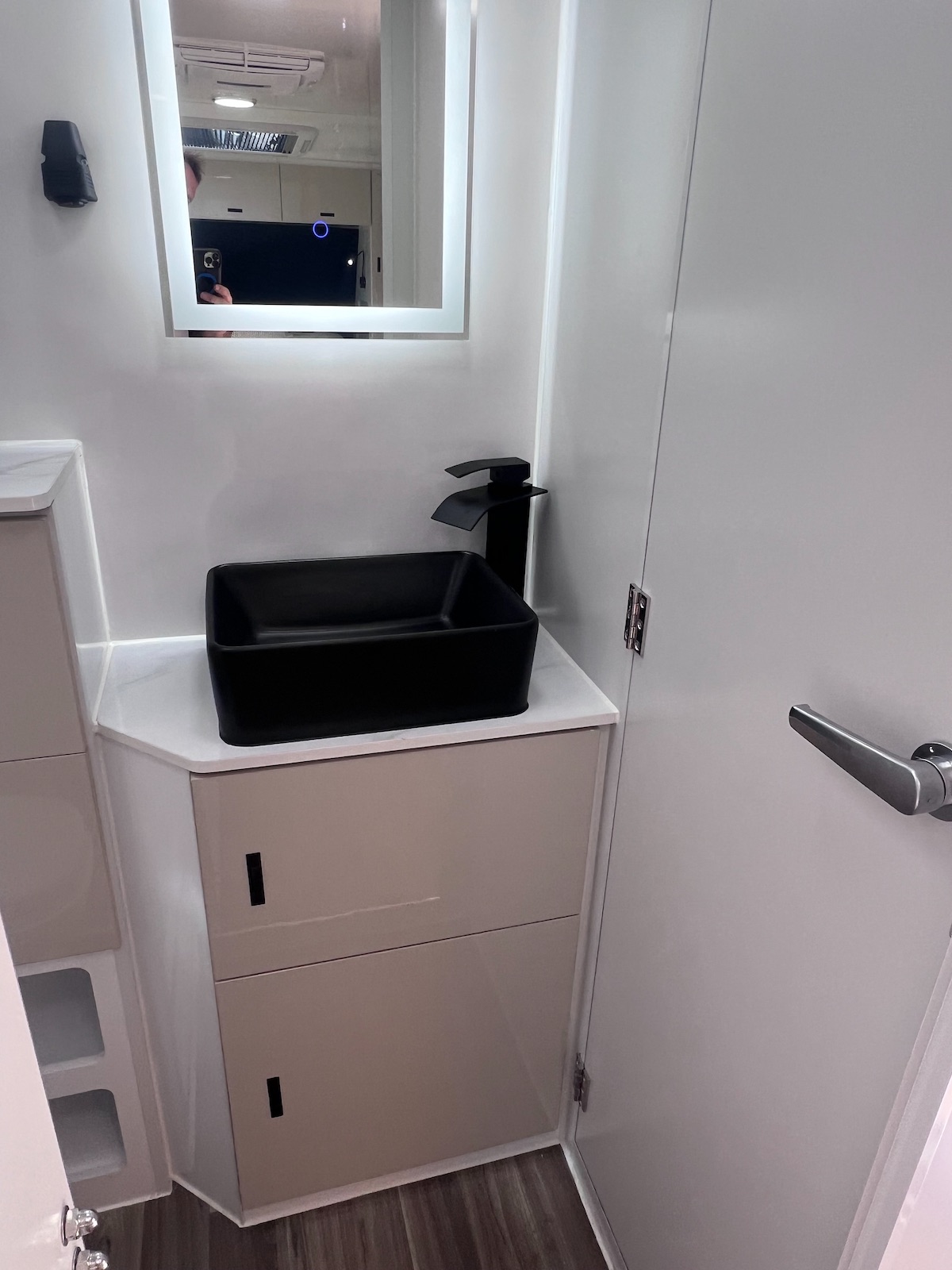

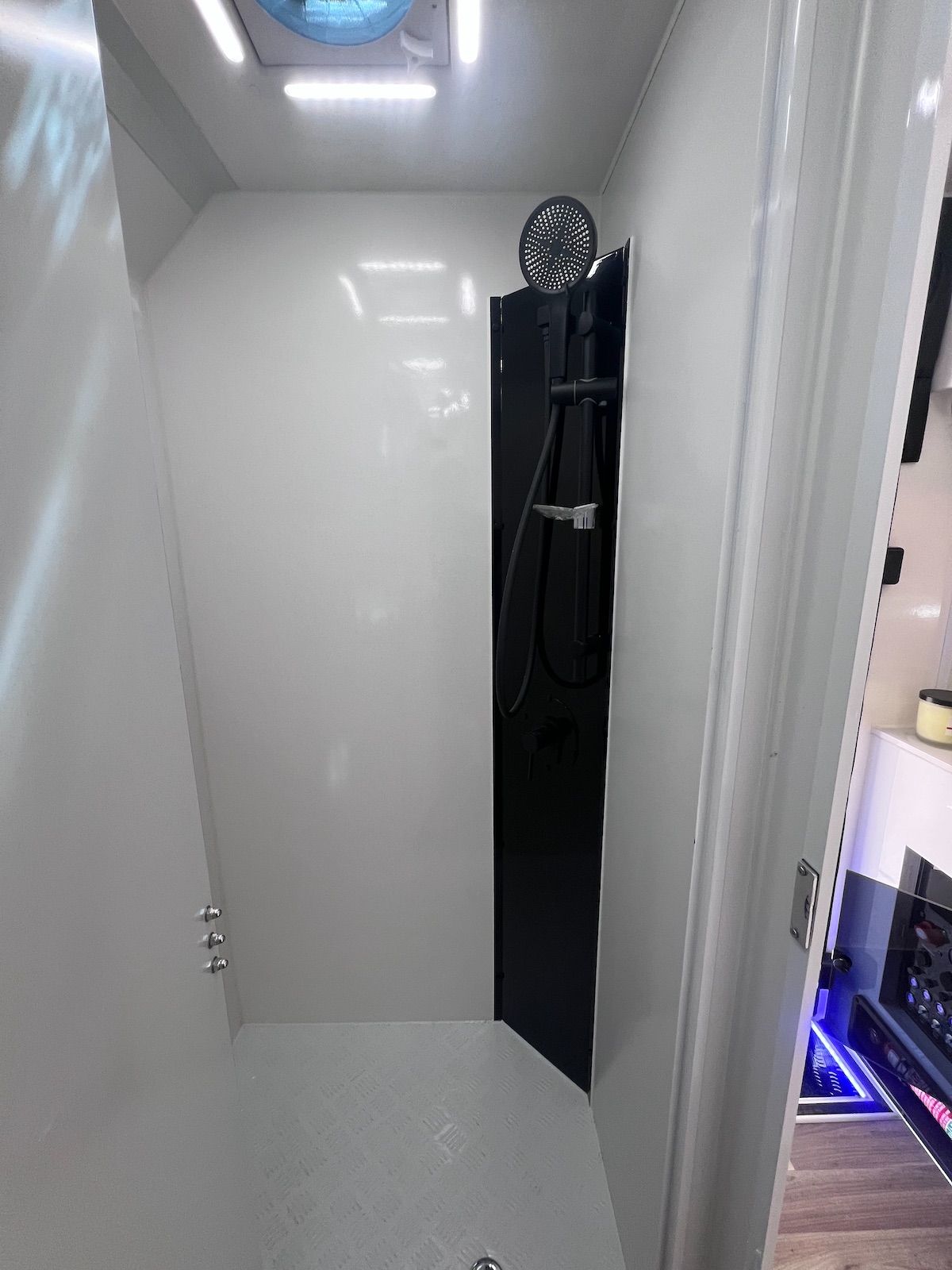

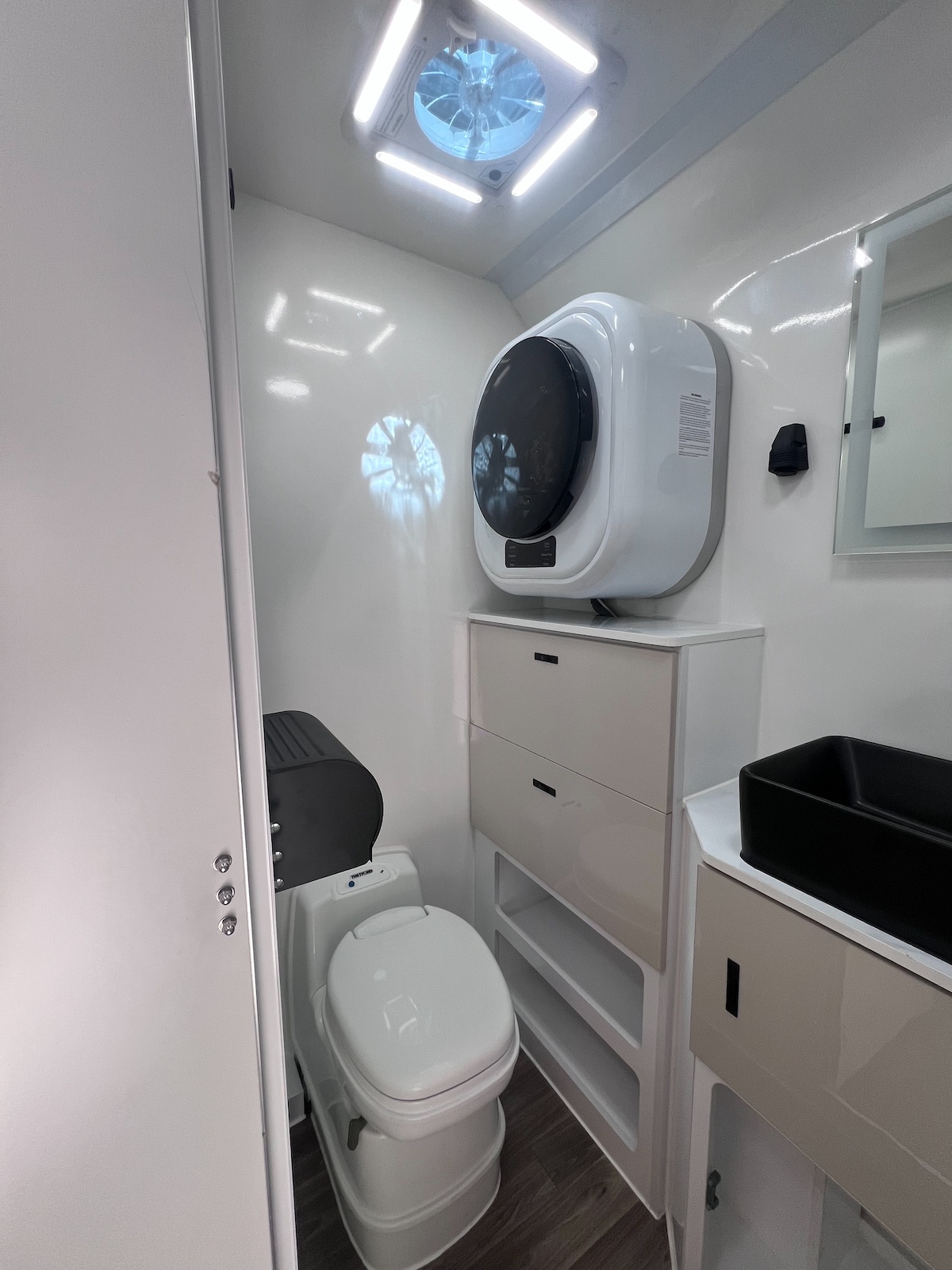

Large Ensuite with Thetford Toilet, Shower and other ammenities
External Shower Ensuite with Mixer Tap

608ah Lithium Batteries – Option for up to 912ah
600W Roof Mounted Mono Crystaline Solar Panels
Redarc Manager Alpha 50 BMS with Redvision Display
Redarc 2000W RS3 Pure Sine Wave Invertor with Pass through to 240V system
Truma Ultra Rapid Hot Water 14 litre storage unit, Operates on Gas & 240v
Dometic Fresh Jet Ultra Lite 2.6kw Invertor Airconditioner – Roof Mounted
240V Microwave 1150W Fitted
24″ Engalon Smart TV with built in Chromecast and BT Connection
Premium Sound system with speakers inside and out with Bluetooth Connection
12V 3speed Gimbal Fan 360 degree range x 2
Anderson plug connectors for vehicle and solar input for extra panels
Electric Emergency Breakway with 2 ADR Compliant Safety Chains
Multiple 12v & USB sockets, inside and out
96l Upright Fridge Fitted, with 20l Freezer, works on 12V or 240V
Internal and External LED Lights with Orange Insect Repellant option
240V Microwave 1150W Fitted
Wireless Camera with 7″ Screen, wired to driving and reverse lights
Positive Pressure Dust Suppressor with Filter

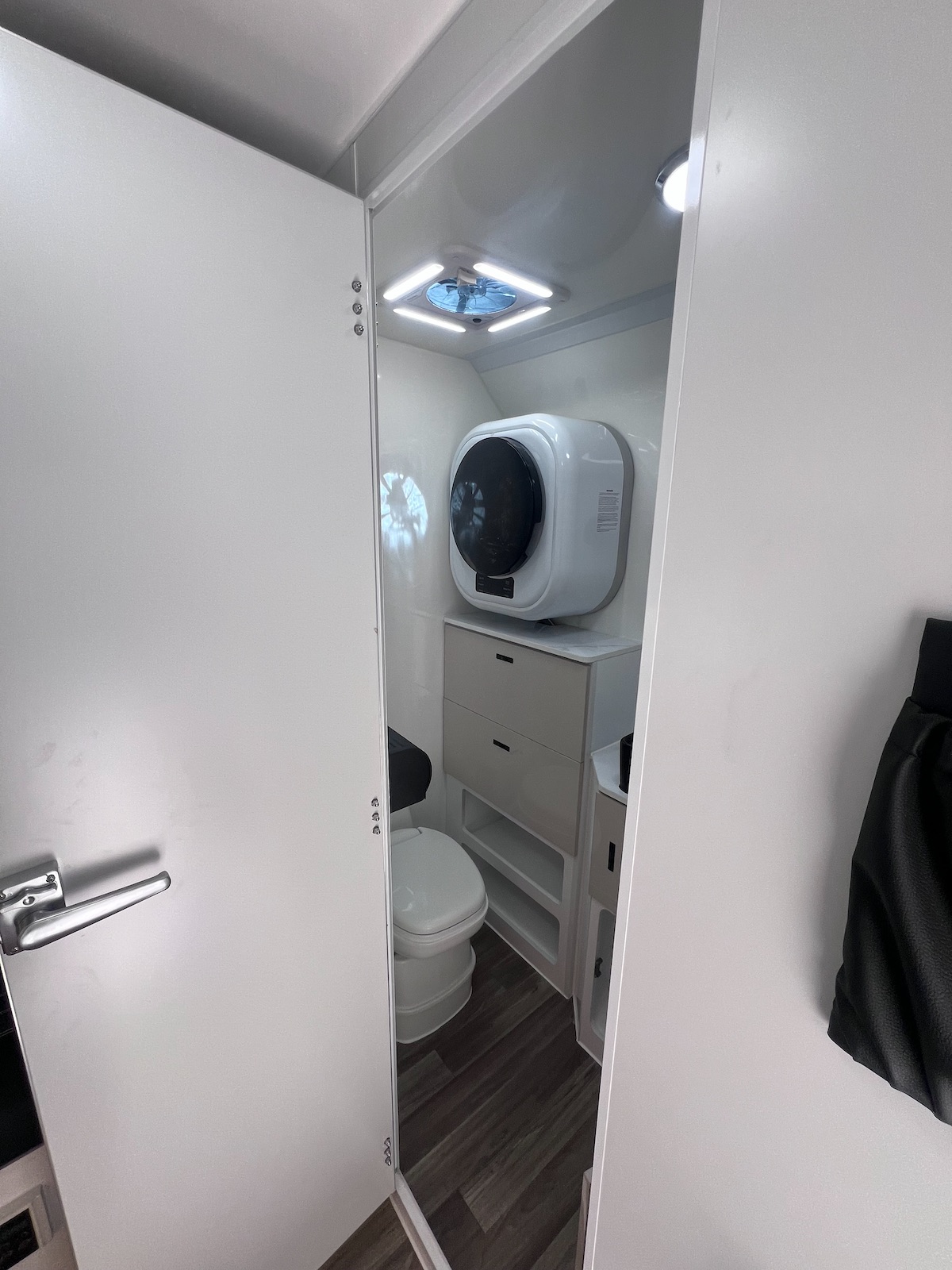

Washing Machine included

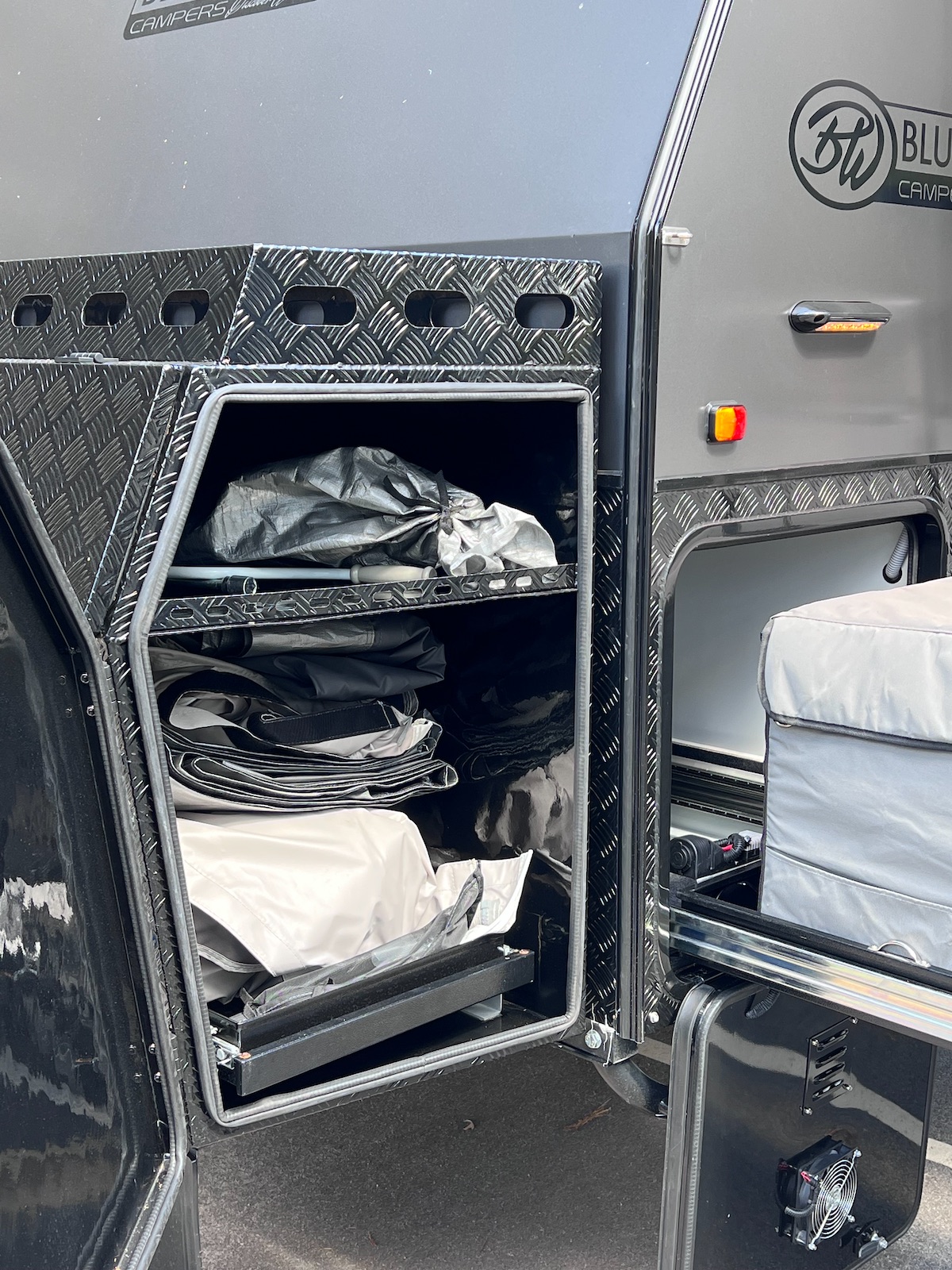

Multiple storage Compartments inside & out
Fridge Slide: 980mm long x 550mm wide x 560mm high
Provision for Rear bike rack tongue / receiver
1 x 8.5kg and 1 x 3.75 kg gas bottle holders stored in weatherproof compartment

Sleeping accomodation for 2

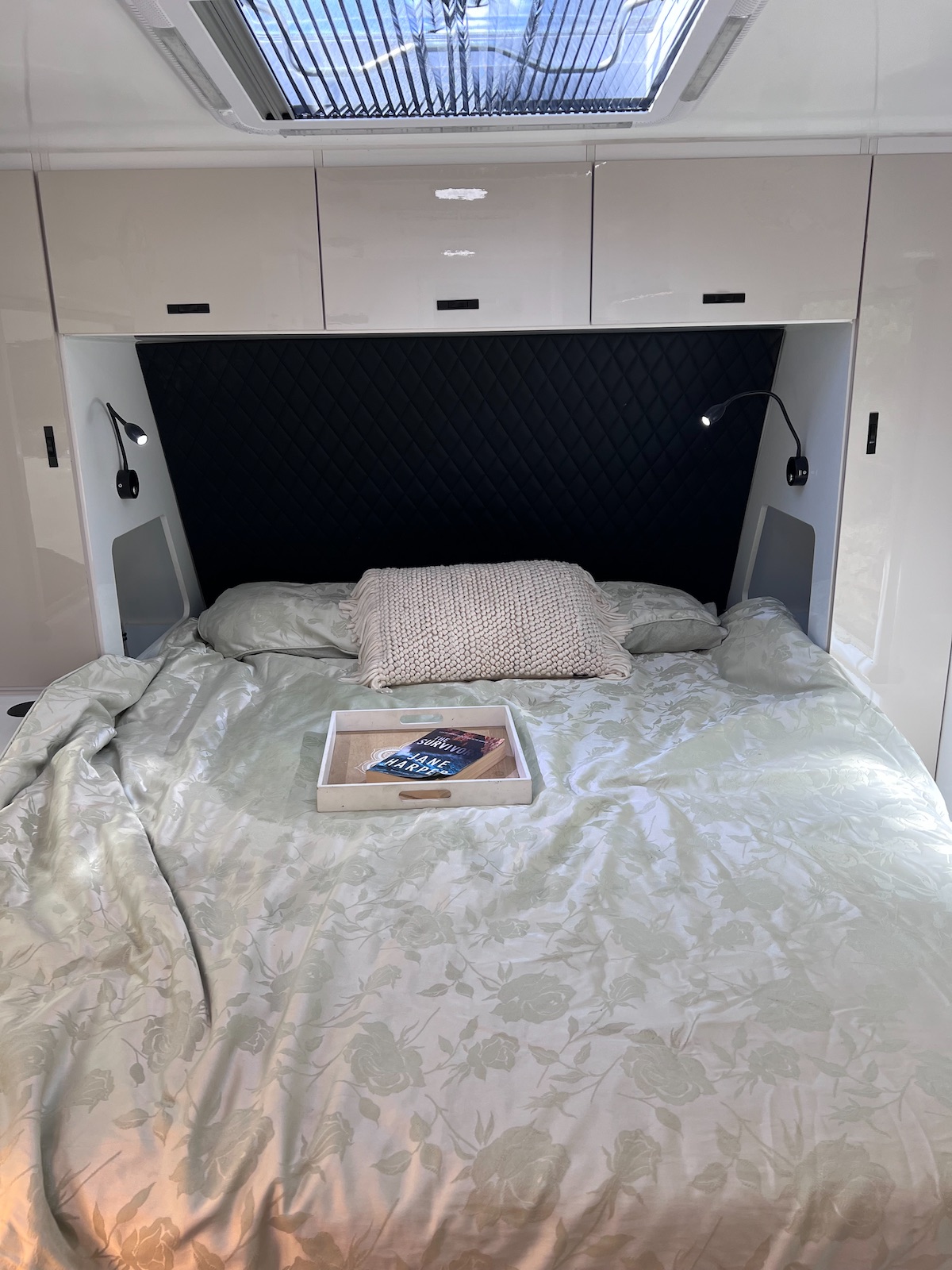

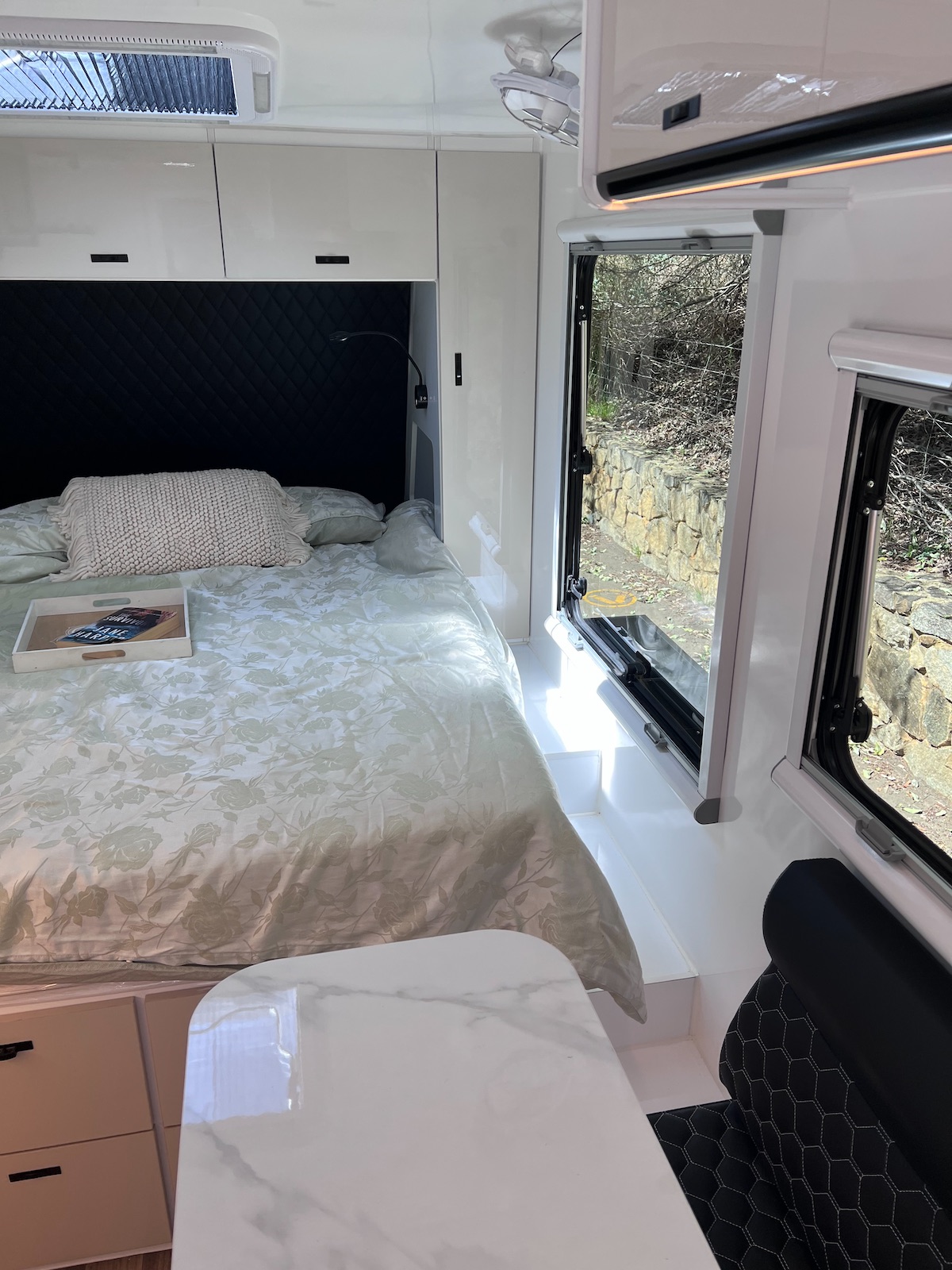

Pocket Spring Mattress with Memory Foam Topper Size 150cm wide x 195cm long x 20cm Thick

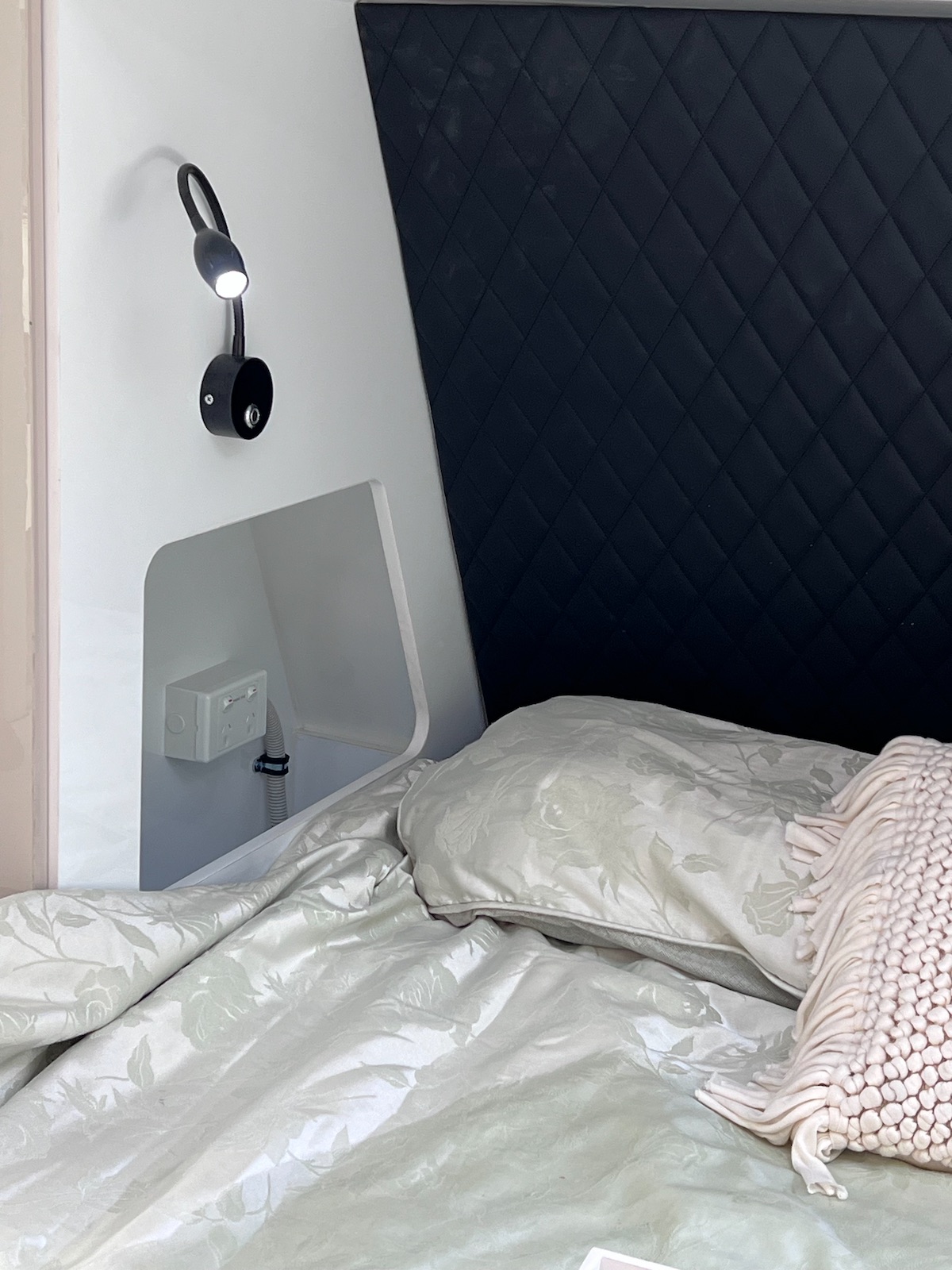

Reading lights either side of bed with 12v socket & USB Connection, Fans

Heavy Duty Coil Springs paired with Adjustable Independent Suspension
Lovells Gas Shock Absorbers Heavy Duty 16mm Eye
Diesel Heater 2kw Plumbed with 10l tank

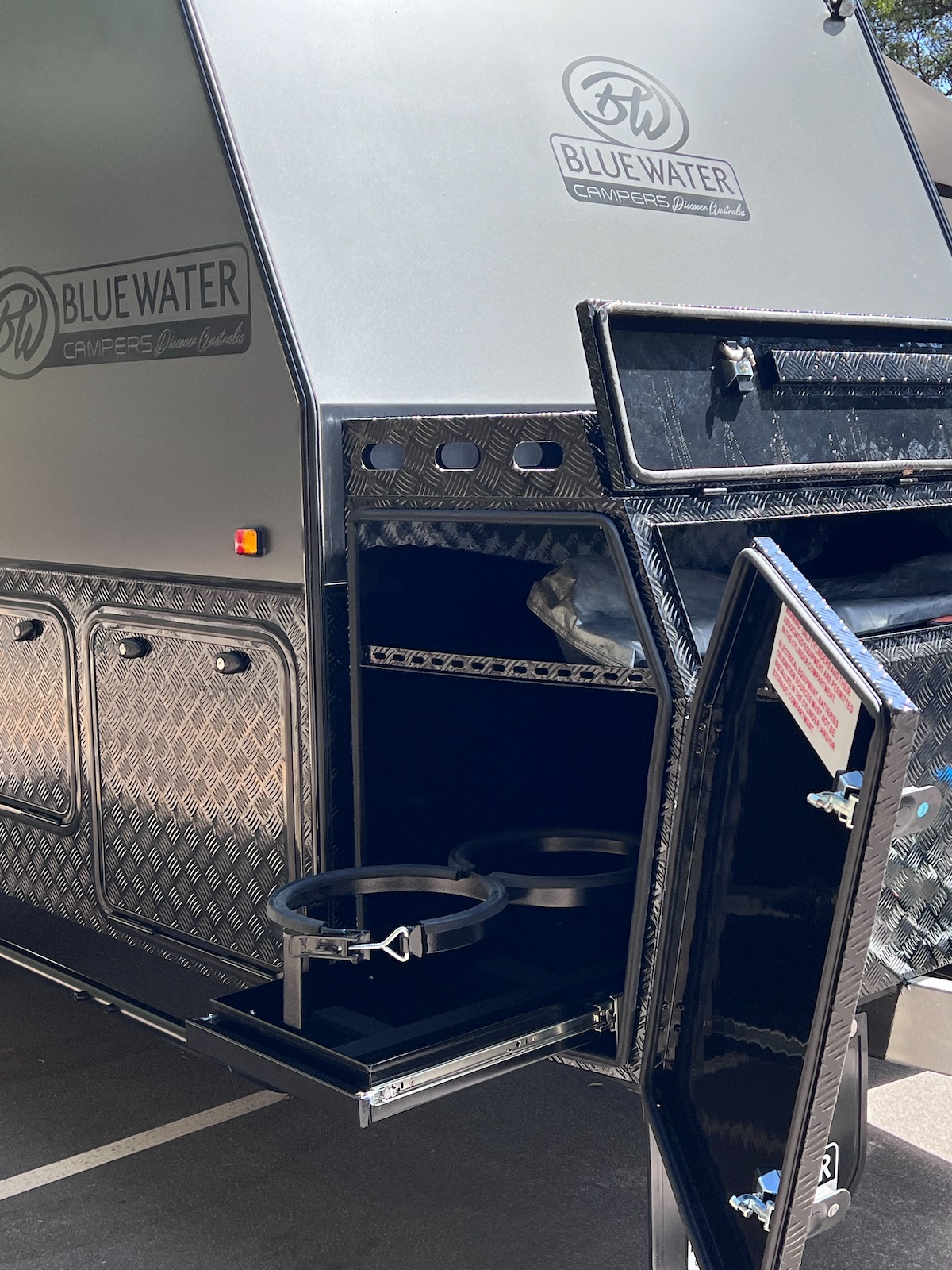

External Kitchen with Dometic 3 Burner Stove and sink, bench
Extension & Gas Compliance
Internal Kitchen with Dometic 2 Burner Stove and Sink
External Kitchen fully plumbed water and electrics, no manual connections required
Fold down pantry with multiple storage areas
4 ‘drop down’ adjustable stabiliser legs – Optional ARK Jack Legs available

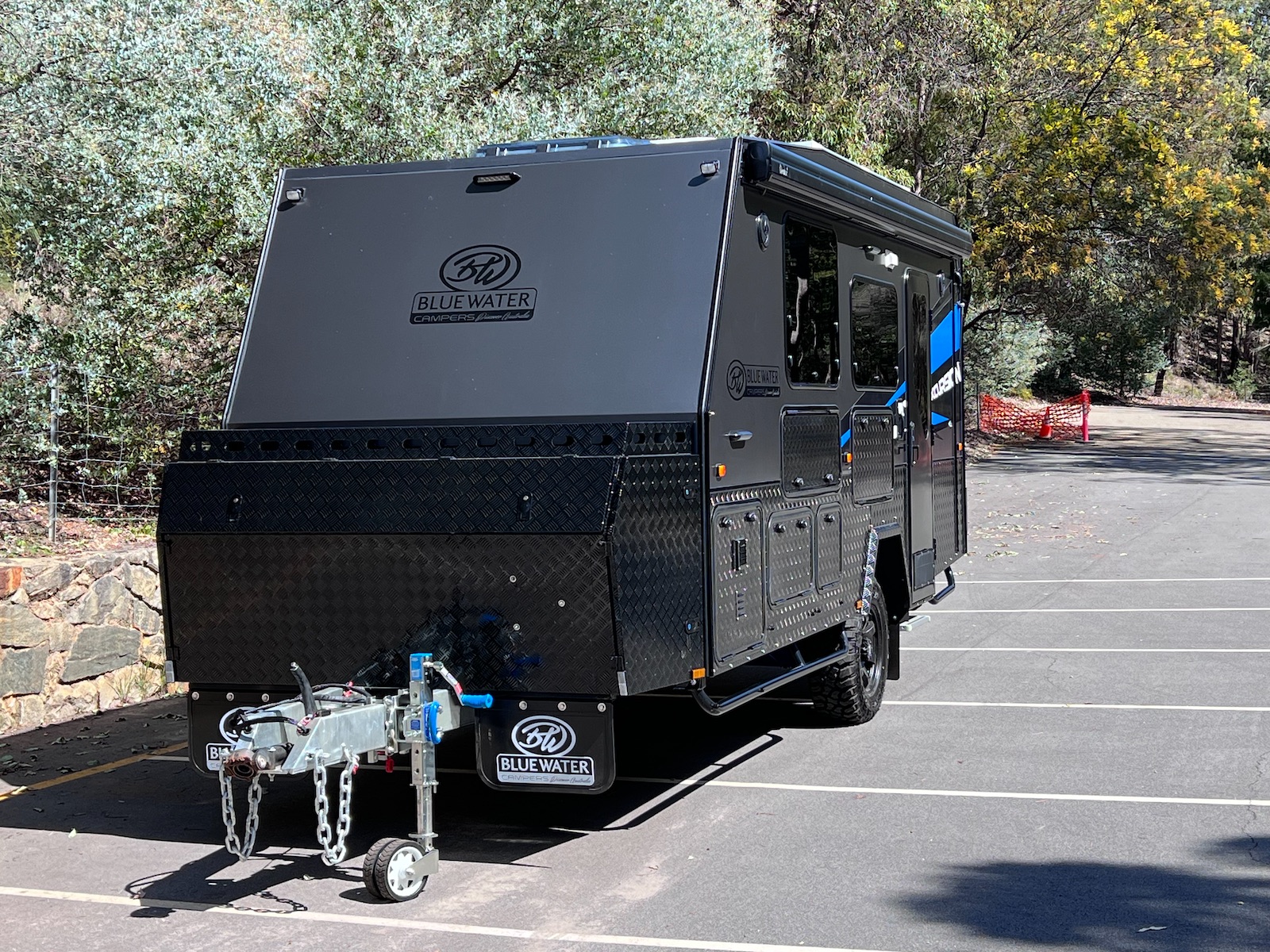

Cruisemaster DO35 Hitch 3.5T and trailer plug included to suit your tow vehicle
Swing down Aluminium Entry step
Rock Sliders each side to protect underbody
Dual rear rated 4.5T Heavy Duty recovery shackles

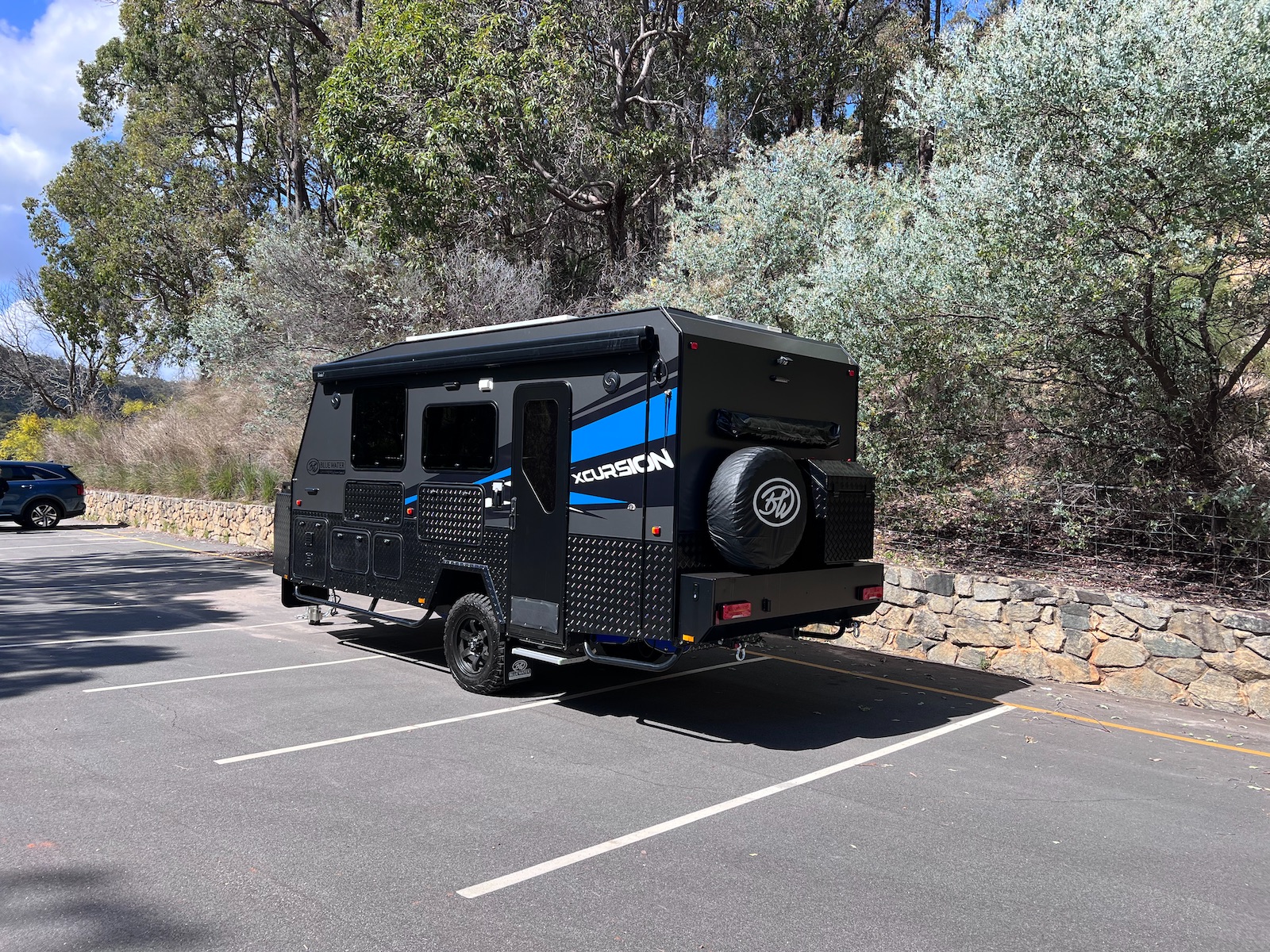

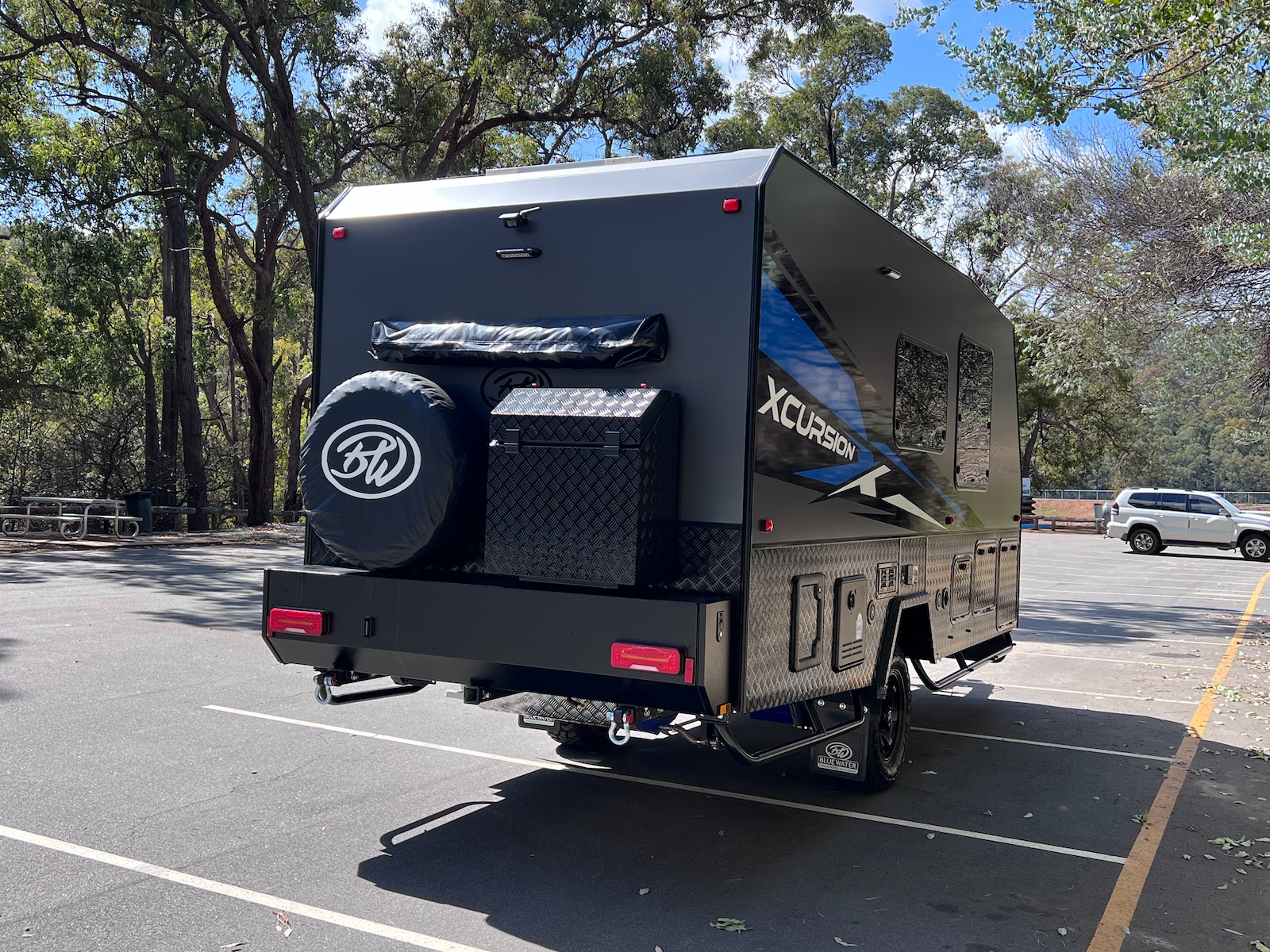

265/75 R16 MT or AT Tyres on Alloy Rims, Rear mounted spare Tyre with Toolbox (second spare opt)
200ltr Total Fresh Water capacity (F-80ltr & R-120ltr) + 60lt
Grey Water Tank – Poly Food Grade Tanks
John Guest water hoses and Fittings, Watermarked Food Grade safe.
Drawbar Mounted Water tap
Seaflo 9.5lm Water Pump with John Guest Hose and Fittings
Seaflo Mains water connection with Pressure Reducing Valve
Fully Welded Aluminium Body, Underbody Sealer, Proof Coated with Mud Flaps
Drawbar Full Length RHS Galvanised 150x50x4mm
RHS Galvanised Chassis 100x50x4mm Proof Coated
12” Electric Brakes with Mechanical Handbrake and Electric breakaway
ARK XO 750kg rated Off Road Dual Wheel Jockey Wheel
Lifetime Chassis & Drawbar Warranty

*Suppliers and Specifications Subject to change without notice. Please contact Bluewater Campers for confirmation.
